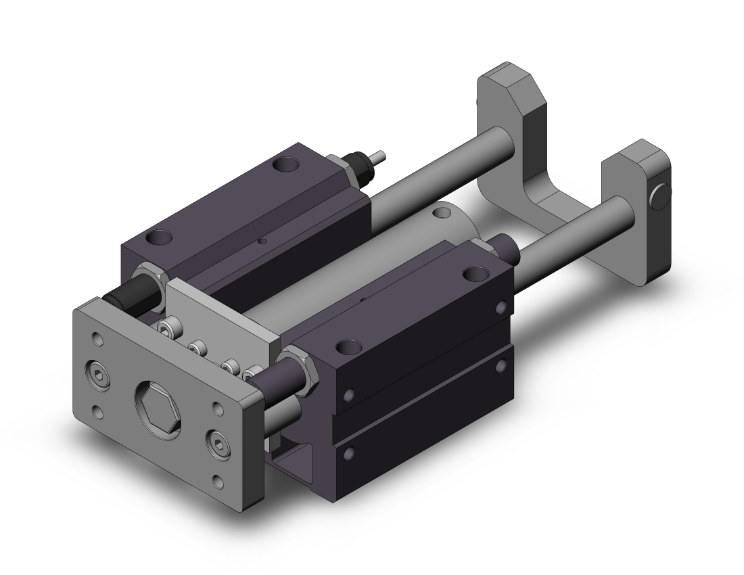

SMC VALVES MGGLB40TN-100 Guide Cylinder, 40 mm Size, Ball Bearing
Item: AN4YLU
Model: MGGLB40TN-100
In Stock
Get it by Thursday, Apr 16
£835.25/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bearings | Ball Bushing Bearing |
|---|---|
| Bore Dia. | 40 mm |
| Cushion Type | Rubber Bumper |
| Guided Cylinder Type | Dual Rod Slide Unit |
| Max. Operating Pressure | 1 MPa |
| Min. Operating Pressure | 0.15 MPa |
| Mounting Type | Basic |
| Operating Pressure Range | 0.15 MPa to 1 MPa |
| Operating Temp. Range | -10°C to +60°C |
| Overall Height | 93 mm |
| Overall Length | 338 mm |
|---|---|
| Overall Width | 170 mm |
| Piston Action | Double Acting |
| Port Size | 0.125 NPT |
| Port Thread Standard | NPT |
| Pull Force At 100 Psi | 742N |
| Push Force At 100 Psi | 882N |
| Rod Type | Single Rod |
| Series | MGG Series |
| Stroke | 100 mm |
Product Details
Cylinder
Shipping Information
| height | 7.62 |
|---|---|
| length | 30.48 |
| width | 7.62 |
|---|---|
| weight | 3.150000 |
