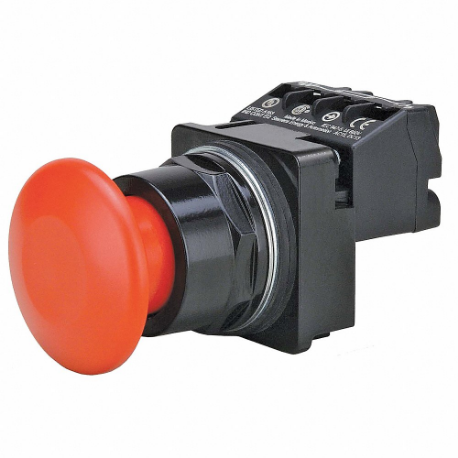

SIEMENS US2:52BP2W2A Non-Illuminated Push Button, 30 mm Size, Maintained Push/Maintained Pull, Red

Item: CU2VHE
Model: US2:52BP2W2A
In Stock

Get it by ,

We deliver to your doorstep under DAP terms. Customs clearance is for your account

£183.73
5.00% off
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ac Contact Rating 10A @ 600V
Action Maintained
Basic Material Metal
Bezel Material Epoxy Coated Metal
Color Red
Contact Rating 10A @ 600V AC
Dc Contact Rating Not Rated
Display Qty 1
Features Bifurcated Movable Contacts, Boots Not Required, Nema A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Head Material Plastic
Head/lens Color Red
Ip Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66
Legend No Legend
Maintained Action Release Push/Pull
Manufacturer Warranty Length 1 yr.
Material Metal
Mechanical Operating Durability 3 x 10^5
Mushroom Head Diameter 44.45 mm
Nema Contact Rating Designation A600/P600
Nema Enclosure Rating NEMA 1, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Nema Rating NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 4X
Number Of Indicator Lights 0
Operating Temperature - Maximum 158°F
Operating Temperature - Minimum 31°F
Operator Illumination Non Illuminated
Operator Material Epoxy Coated Metal
Operator Voltage Rating - Maximum 600V AC
Overall Height 4.49"
Overall Width 2 3/25"
Panel Mounting Hole Diameter 30 mm
Product Type Push Button Operators
Push Button Style Mushroom Head
Resistance Properties Corrosion Resistant
Series CLASS 52 Series
Standard Logo csa.png,ul.png
Terminal Connection Pressure Plate
Type Of Operator 45 mm Mushroom Head
standard CSA, REACH, UL LISTED

Product Details

Non-Illuminated Push Button

Shipping Information

height 2.54
length 2.54
width 2.54
country of origin MX
weight 0.247500
