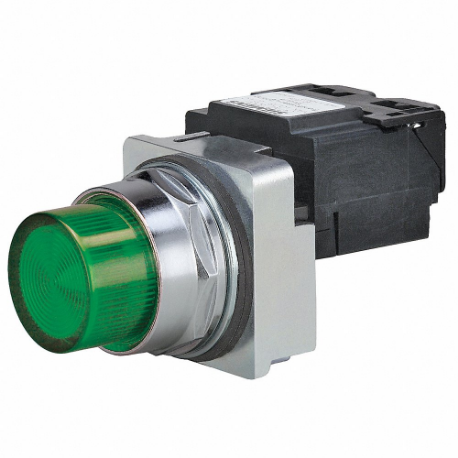

SIEMENS 52PL4D3XB Pilot Light Complete, 30 mm Size, Full Volt, 24VAC/DC, Green, LED

Item: CU2VTY
Model: 52PL4D3XB
19 In Stock

Ships within 2 days via

£230.41
5.00% off
£218.89/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Basic Material Metal
Body Finish Chrome Plated
Body Material Metal
Color Green
Includes Lamp Module, Single Led
Includes Lamp Module Lamp Module Included
Includes Lens Lens Included
Includes Push-to-test No Push To Test Included
Ip Rating IP20, IP66
Lamp Bulb Color Green
Lamp Bulb Type LED
Lamp Module Type Full Voltage
Lamp Type LED
Lamp Voltage 24V AC/DC
Lens Color Green
Lens Material Plastic
Lens Type Concentric Rings
Max Lamp Bulb Voltage 24V AC/DC
Max Voltage Rating (supply) 24V AC/DC
Nema Enclosure Rating NEMA 1, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Nema Rating NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
Overall Depth 3.49"
Overall Height 1.7"
Overall Width 1.7"
Panel Mounting Hole Diameter 30 mm
Resistance Properties Surge Voltage Resistant, Vibration Resistant
Series CLASS 52 Series
Shape Round
Standards Csa, Ul Listed
Terminal Connection Screw Terminal
Terminal Connection Type Pressure Plate
Voltage Rating 24V AC/DC

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Country Of Origin MX
Weight 0.247500
