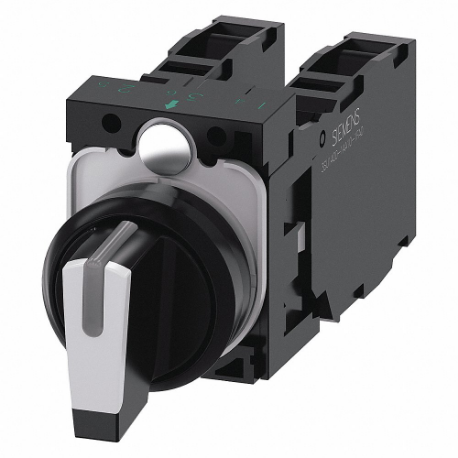

SIEMENS 3SU1100-2BL60-1LA0 Non-Illuminated Selector Switch, 22 mm Size, 3 Position, Plastic

Item: CU2WWB
Model: 3SU1100-2BL60-1LA0
9 In Stock

Ships within 2 days via

£160.56
5.00% off
£152.53/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ac Contact Rating 10A @ 600V
Action Maintained/Maintained/Maintained
Basic Material Plastic
Bezel Color Black
Bezel Material Plastic
Color White
Colour Button White
Colour Front Ring Black
Contact Block Material Plastic
Contact Form 2NO/2NC
Contact Rating 10A @ 600V AC 1A @ 600V DC
Dc Contact Rating 1A @ 600V
Hazardous Location Specification Not Rated
Ip Rating IP20, IP66, IP67, IP69, IP69K
Key Removal No Key
Lamp Bulb Type No Lamp Module Included
Lamp Module Type No Lamp Module Included
Material Front Ring Plastic
Nema Contact Rating Designation A600/R300
Nema Enclosure Rating NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Nema Rating NEMA 1, NEMA 12, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
Number Of Contacts 0
Number Of Contacts As Normally Closed Contact 2
Number Of Contacts As Normally Open Contact 2
Number Of Positions 3
Number Of Switch Positions 3
Operator Head Color Black, White
Operator Head Material Plastic
Operator Illumination Illuminated
Overall Depth 2"
Overall Height 1 3/5"
Overall Width 1 1/2"
Panel Mounting Hole Diameter 22 mm
Position 3
Series 3SU1100 Series
Spring-return No
Standard Logo ce.png,csa.png,ul.png
Suitable For Illumination Yes
Switch Function @ 1st Position On
Switch Function @ 2nd Position Off
Switch Function @ 3rd Position On
Switch Function @ 4th Position No Fourth Position
Switch Head Type Short Lever
Switch Operation @ Position A XOXO
Switch Operation @ Position C XOXO
Switch Operation @ Position D No Fourth Position
Switching Function Latching Yes
Type Of Control Element Toggle
Type Of Electric Connection Screw Connection
Type Of Operator Lever
With Front Ring Yes
standard REACH ART. 33, ROHS, WEEE (2012/19/EU)

Product Details

Selector Switch

Shipping Information

height 2.54
length 2.54
width 2.54
country of origin CZ
weight 0.090000
