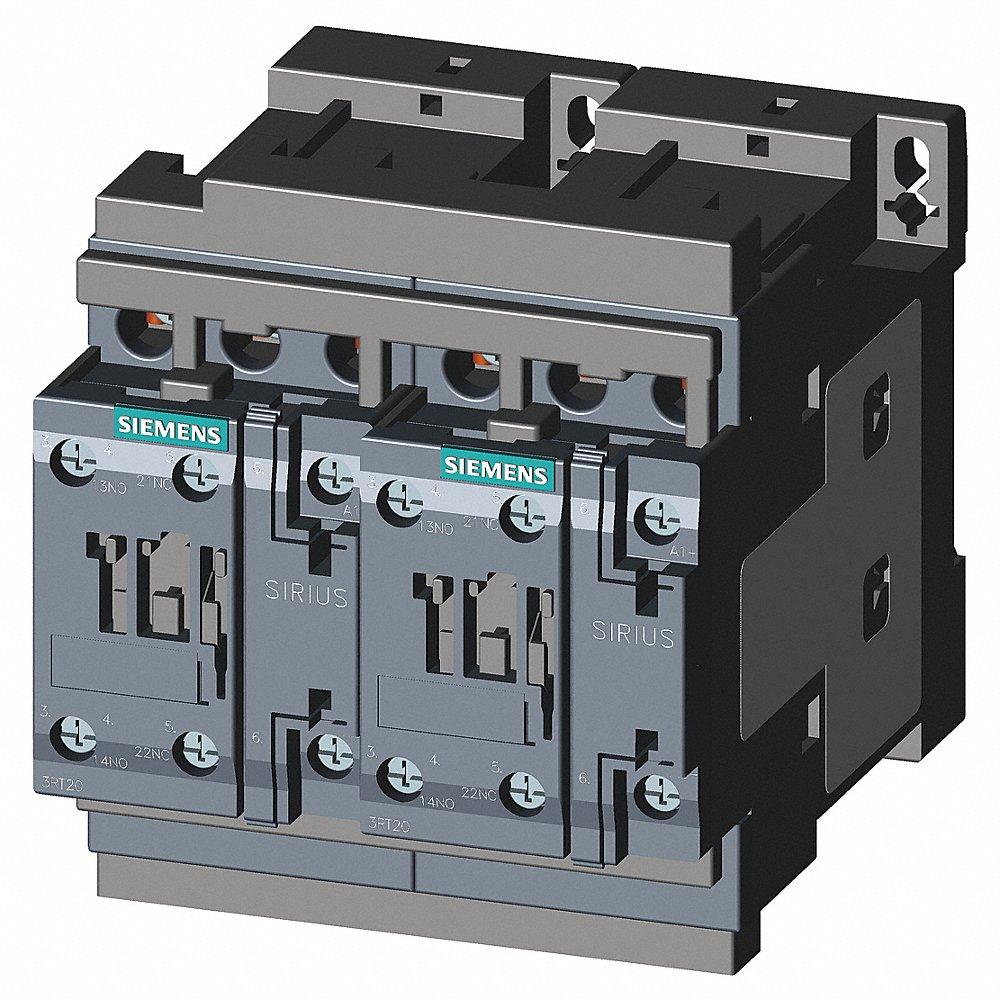

SIEMENS 3RA23268XB301AP6 Iec Magnetic Contactor, 220/240 VAC Coil Volts, 25 A, 2No/2Nc

Item: CU2TNQ
Model: 3RA23268XB301AP6
25 In Stock

Ships within 2 days via

£995.36
5.00% off
£945.6/unit
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Action Type Reversing
Aux. Contact Configuration 2NO/2NC
Auxiliary Contacts Included 2NO
Coil Voltage 220/240V AC
Contactor Style IEC
Depth 3.82" , 4.3"
Embedded Surge Suppressor No
Enclosure Nema Rating No Enclosure
Frame Size S0
Frequency 50/60 Hz
Full Load Amps-inductive 25A
Full Load Amps-resistive 40A
Full Load Current - Resistive 40A
Height 3.54" , 4.41"
Horsepower @ Single Phase - 240v Ac 3 hp
Horsepower @ Three Phase (600 Vac) 20 hp
Horsepower @ Three Phase - 480v Ac 15 hp
Hp @ 1 Phase - 120v 2 hp
Hp @ 1 Phase - 240v 3 hp
Hp @ 3 Phase - 208v 7 1/2 hp
Hp @ 3 Phase - 240v 7 1/2 hp
Hp @ 3 Phase - 480v 15 hp
Hp @ 3 Phase - 575v 20 hp
Includes Mechanical Interlock
Includes Auxiliary Contacts Yes
Integrated Surge Suppression No
Ip Rating IP20
Main Power Pole Contact Form 3NO
Maximum Operating Temperature 140°F
Maximum Voltage Rating 690V AC
Mechanical Operating Durability 10000000
Minimum Operating Temperature -13°F
Mounting Position Vertical
Nema Enclosure Material Not Applicable
Nominal Coil Voltage @ 60hz 240V AC
Number Of Auxillary Contacts 3
Number Of Normally Closed Main Contacts 0
Number Of Normally Open Main Contacts 3
Number Of Poles 3
Overall Depth 4.3"
Overall Height 4.41"
Overall Width 3.82"
Phase Three
Reversible Yes
Reversing Capability Reversing
Series SIRIUS 3RA23 Series
Terminal Connection Type Screw Terminals
Width 3.54" , 3.82"
Wire Termination Type Screw
standard REACH ART 33, WEEE (2012/19/EU)

Product Details

IEC Magnetic Contactor

Shipping Information

height 11.2
length 10.92
width 9.7
country of origin DE
weight 0.900000
