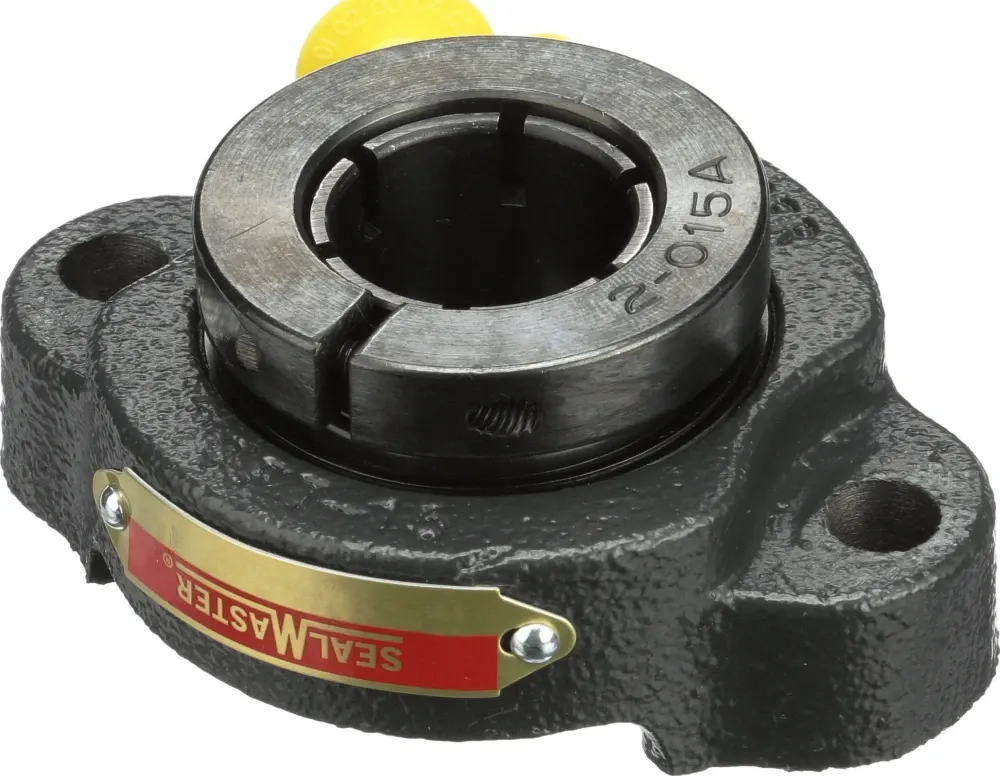

SEALMASTER TFT-22TC-2 Flange Bearing, 2 Bolt, 1.375 Inch Dia, Skwezloc Locking, Cast Iron Housing, Contact Seal
Item: BE4BZB
Model: TFT-22TC-2
In Stock
Get it by Thursday, Apr 16
£250.22/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bearing Type | Two Bolt Flange |
|---|---|
| Bolt Center To Center Length | 3.938" |
| Bore Dia. | 1 3/8" |
| Duty Type | Standard Duty |
| Family Series | Sealmaster Bearings, TFT Series |
| Housing Material | Cast Iron |
| Insert Material | Black Oxide, Cast Steel |
| Locking Device | Skwezloc |
| Max Operating Temperature | 220°F |
| Max. Rpm | 4650 RPM |
|---|---|
| Operating Temp. Range | -20°F to +220°F |
| Overall Height | 1.762" |
| Replacement Bearing | 2-16TC |
| Seal Type | Contact Seal |
| Series | TFT Series |
| Shaft Diameter (in) | 1.375" |
| Static Radial Load Capacity | 3493 lbf. |
| Type Of Bearing | Ball |
Product Details
Flange Bearing
Shipping Information
| height | 4.48 |
|---|---|
| length | 12.38 |
| width | 9.37 |
|---|---|
| weight | 1.350000 |
