SEALMASTER

See our 858 reviews on trustpilot

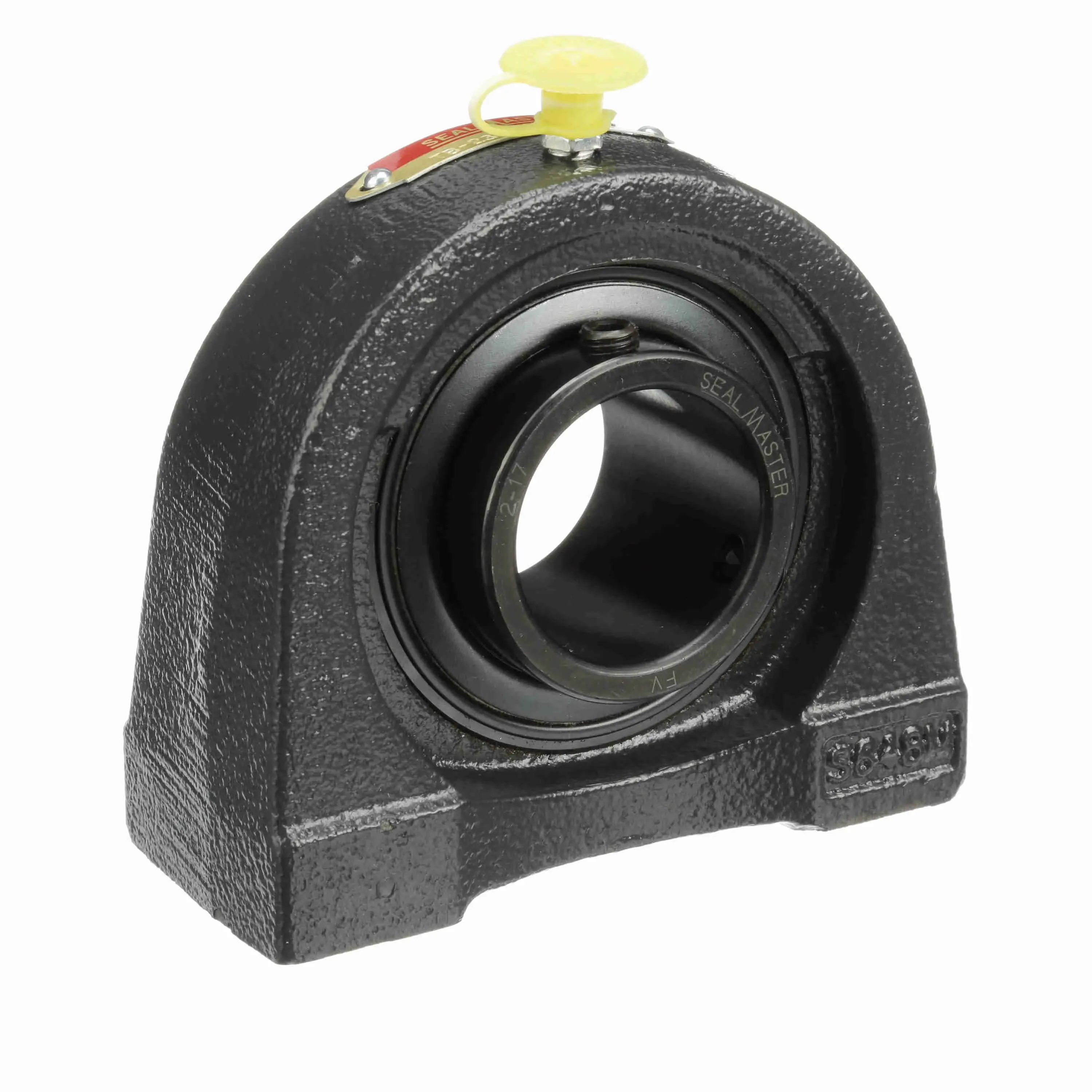

SEALMASTER TB-23 HT 724142 Pillow Block Bearing, Tapped Base, 1.4375 Inch Dia, Setscrew Locking, Nomex Seal

Item: BE2CGU
Model: TB-23 HT
In Stock

Get it by Friday, Apr 17

£389.05/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ability To Relubricate Yes
Base Length 4 1/4"
Base To Center Height 1 7/8"
Base Width 1 3/4"
Bearing Insert Finish Black Oxide
Bearing Insert Material Steel
Bearing Insert Material Grade 52100
Bearing Insert Type Standard Duty
Bolt Spacing 3 1/4"
Bore Dia. 1 7/16"
Bore Shape Straight
Cage Material Polyphenylene Sulfide
Cage Type Land Riding Retainer
Centerline To Outermost Bearing Face 1"
Dynamic Load Capacity 5782 lbs.
End Cap No
Fixed Vs. Expansion Fixed
Grease Fitting Thread Size 1/4"-28
Housing Base Solid
Housing Coating Powder Coated
Housing Color Black
Housing Construction One Piece
Housing Material Cast Iron
Housing Style Pillow Block
Housing Type Pillow Block, Tapped Base
Housing Width 1 22/25"
Htc 8483.20.8040
Inner Race Heat Treat Method Zone Hardened
Inner Ring Outside Diameter 1.859"
Insert 2-17 HT
Length Through Bore 1 11/16"
Lubrication Type Lithium Complex Grease With Synthetic Oil
Max. Operating Temperature 400°F
Max. Speed 2200 RPM
Misalignment Capability -2° to +2°
Misalignment Type Static Only
Options High Temperature
Outer Ring Land Profile Standard
Overall Height 3 3/4"
Overall Length 4.41"
Overall Width 1 22/25"
Radial Clearance Increased
Rolling Element Ball Bearing
Seal Type High Temp Labyrinth
Shaft Locking Type Set Screw
Size Code 2-17
Static Load Rating 3493 lbs.
Thread Depth 3/4"
Thread Size 1/2"-13

Product Details

Shipping Information

Height 5.08
Length 12.7
Width 12.7
Country Of Origin US
Weight 2.025000
