SEALMASTER

See our 858 reviews on trustpilot

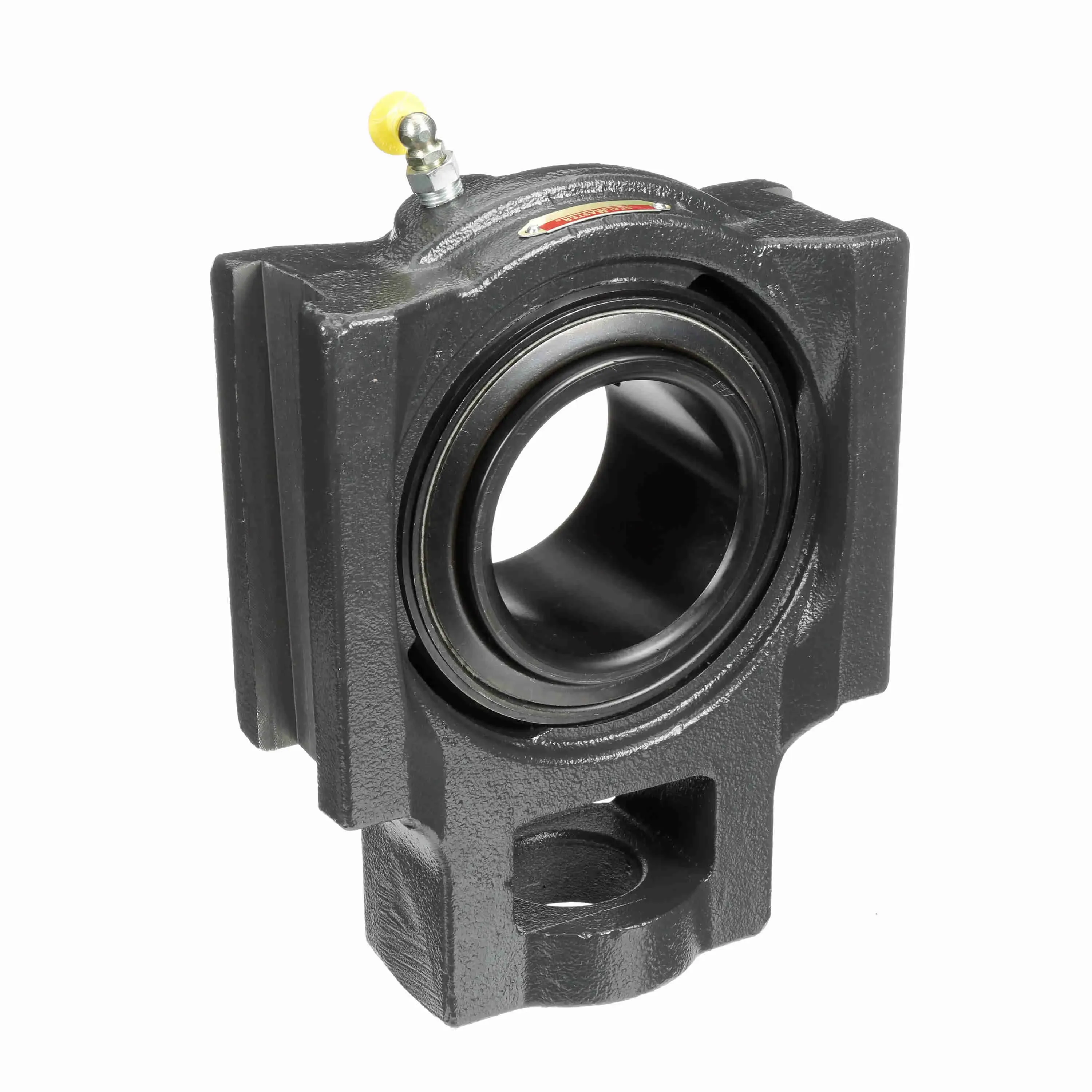

SEALMASTER ST-51 700762 Take-Up Ball Bearing Unit, Side Mount, 3.1875 Inch Bore

Item: BE7PFT
Model: ST-51
In Stock

Get it by Wednesday, Apr 15

£1253.68/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Adjusting Screw Clearance Hole Diameter 1.63"
Adjusting Screw Square Nut Seat Height 2 3/4"
Base To Center Height 5 1/2"
Bearing Insert Finish Black Oxide
Bearing Insert Material Steel
Bearing Insert Material Grade 52100
Bearing Insert Type Standard Duty
Bearing Type Standard Duty
Bore Dia. 3 3/16"
Bore Shape Straight
Cage Material Brass
Cage Type Land Riding Retainer
Carriage Bolt Size 1 1/4"
Centerline To Outermost Bearing Face 1.938"
Duty Series Standard
Dynamic Load Capacity 17412 lbs.
End Cap No
Fixed Vs. Expansion Fixed
Grade Grade 52100
Grease Fitting Thread Size 1/8"
Grease Fitting Thread Type NPT
Grease Type Goldplex-HP
Height 5"
Housing Base Solid
Housing Coating Powder Coated
Housing Color Black
Housing Construction One Piece
Housing Material Cast Iron
Housing Style Take Up Block
Htc 8483.20.4040
Inner Race Heat Treat Method Zone Hardened
Inner Ring Outside Dia. 3.922"
Inner Ring Outside Diameter 3.922"
Inner-race Heat-treat Method Zone Hardened
Insert 2-33
Length 10.7"
Length Through Bore 3.248"
Locking Device Setscrew
Lubricant Lithium Complex NLGI 2 Grease
Lubrication Type Lithium Complex NLGI 2 Grease
Max. Speed 2250 RPM
Misalignment Type Static Only
Outer Ring Land Profile Standard
Overall Height 7 1/4"
Overall Length 9 1/4"
Overall Width 3.38"
Product Type Sealmaster Gold-Standard
Radial Clearance Standard
Retainer Type Metal Land Riding
Seal Flinger Yes
Series St Series
Shaft Locking Type Set Screw
Shaft Size 3 3/16"
Size Code 2-33
Slot Length 4 3/4"
Slot Spacing 6 1/2"
Slot Width 1.063"
Static Load Rating 13174 lbs.
Width 7.63"
no. links/ ft. 0

Product Details

Yes

Shipping Information

height 19.38
length 27.18
width 12.7
country of origin US
weight 9.945000
