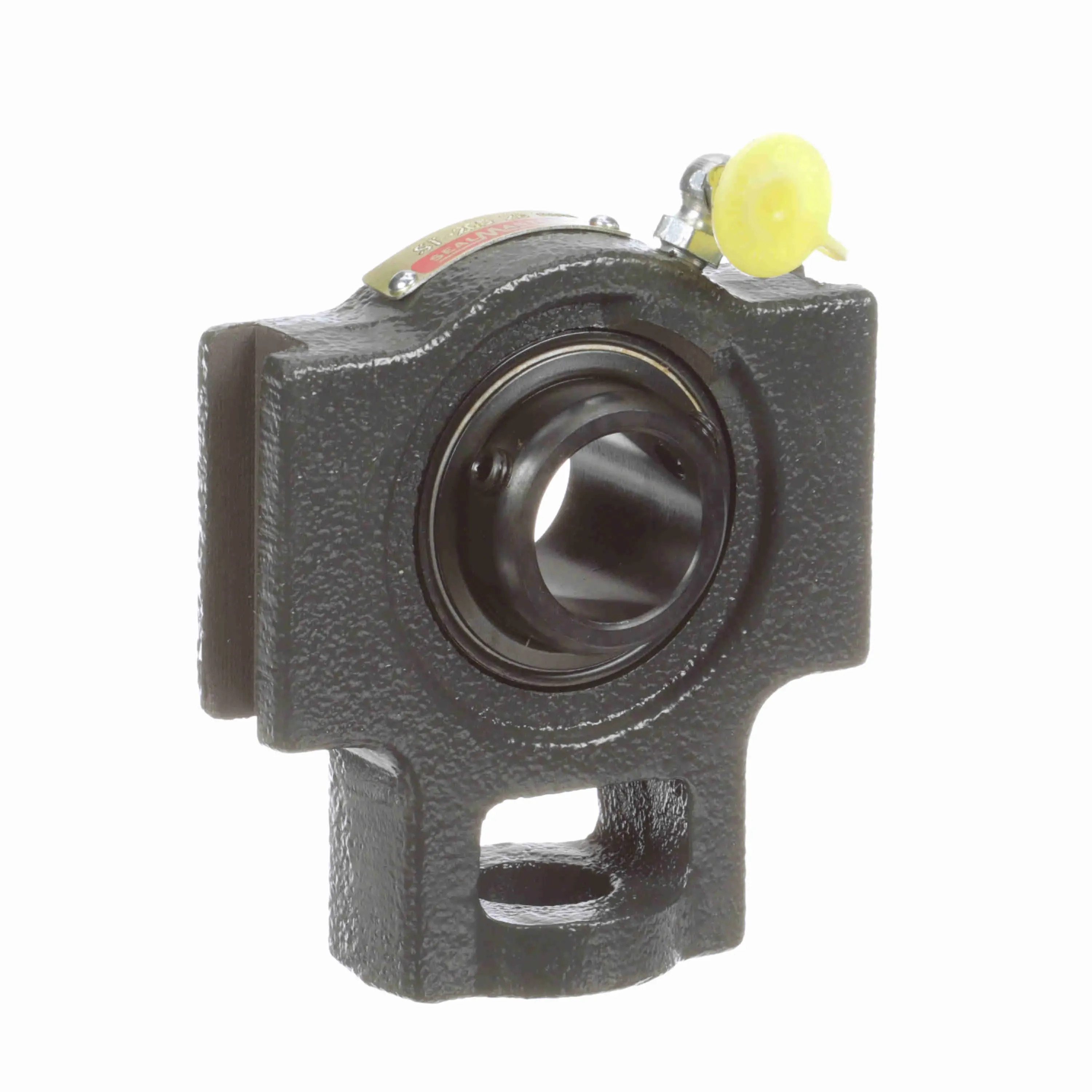

SEALMASTER ST-205 710057 Take-Up Ball Bearing Unit, Side Mount, 25 Mm Bore

Item: BE3CAF
Model: ST-205
In Stock

Get it by Thursday, Apr 16

£264.59/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Adjusting Screw Clearance Hole Diameter 3/4"
Adjusting Screw Square Nut Seat Height 1 1/4"
Base To Center Height 2 11/25"
Bearing Insert Finish Black Oxide
Bearing Insert Material Steel
Bearing Insert Material Grade 52100
Bearing Insert Type Standard Duty
Bore Dia. 25 mm
Bore Shape Straight
Cage Material Polyphenylene Sulfide
Cage Type Land Riding Retainer
Carriage Bolt Size 5/8"
Centerline To Outermost Bearing Face 0.813"
Dynamic Load Capacity 2801 lbs.
End Cap No
Fixed Vs. Expansion Fixed
Grease Fitting Thread Size 1/4"-28
Housing Coating Powder Coated
Housing Color Black
Housing Construction One Piece
Housing Material Cast Iron
Housing Style Take Up Block
Housing Type Take Up Block, Wide Slot
Htc 8483.20.4040
Inner Race Heat Treat Method Zone Hardened
Inner Ring Outside Diameter 1 3/8"
Insert 5205
Length Through Bore 1 3/8"
Lubrication Type Lithium Complex NLGI 2 Grease
Max. Operating Temperature 220°F
Max. Speed 6350 RPM
Misalignment Capability -2° to +2°
Misalignment Type Static Only
Outer Ring Land Profile Standard
Overall Height 3 1/2"
Overall Length 3.81"
Overall Width 1.38"
Radial Clearance Standard
Rolling Element Ball Bearing
Seal Type Felt Labyrinth Seal
Series St Series
Setscrew Torque 65 lbs.-in. to 85 lbs.-in.
Shaft Locking Type Set Screw
Size Code 2-015
Slot Length 2"
Slot Spacing 3"
Slot Width 0.531"
Static Load Rating 1651 lbs.
Vibration Frequency Fundamental Train 0.0068 cPS
Vibration Frequency Inner Ring Defect 0.0985 cPS
Vibration Frequency Outer Ring Defect 0.0682 cPS
Vibration Frequency Roller Spin 0.0442 cPS

Product Details

Shipping Information

Height 4.29
Length 11.43
Width 11.58
Country Of Origin US
Weight 0.886500
