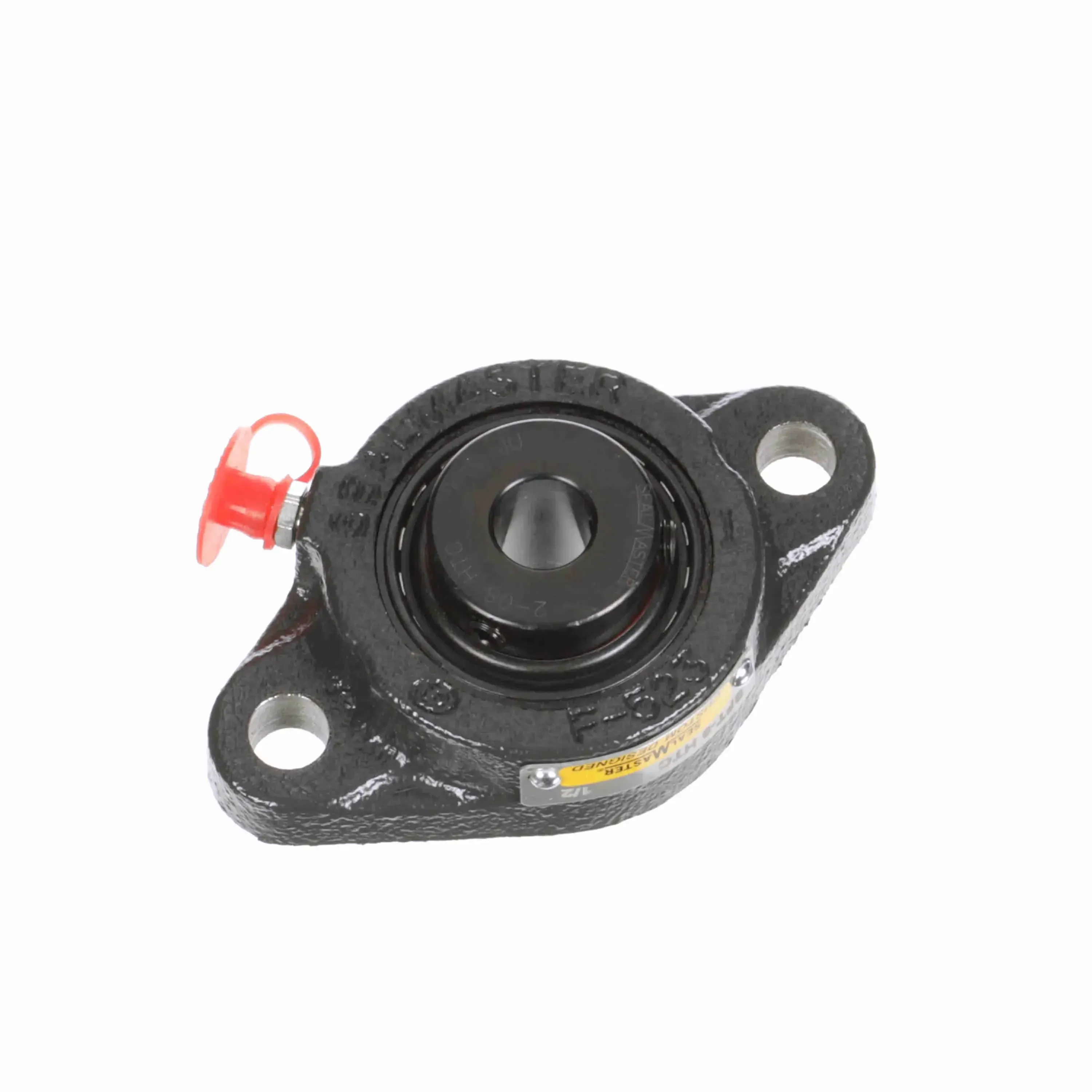

SEALMASTER SFT-8 HTC 710872 Flange Bearing, 2 Bolt, 0.5 Inch Dia, Setscrew Locking, High Temp Contact Seal
Item: BD9JZE
Model: SFT-8 HTC
In Stock
Get it by Thursday, Apr 16
£186.98/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | Yes |
|---|---|
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 3/8" |
| Bolt Spacing | 3" |
| Bore Dia. | 1/2" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 2611 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 11/25" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Two Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 1.192" |
|---|---|
| Insert | 2-08 HTC |
| Length Through Bore | 1.219" |
| Lubrication Type | Synthetic Nlgi 2 High Temperature Grease |
| Max. Operating Temperature | 400°F |
| Max. Speed | 800 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | High Temperature |
| Outer Ring Land Profile | Standard |
| Overall Height | 1.281" |
| Overall Length | 3 22/25" |
| Overall Width | 2.31" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Increased |
| Rolling Element | Ball Bearing |
| Seal Type | High Temperature Contact Seal |
| Shaft Locking Type | Set Screw |
| Size Code | 2-012 |
| Static Load Rating | 1444 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0907 cPS |
| Vibration Frequency Outer Ring Defect | 0.0593 cPS |
| Vibration Frequency Roller Spin | 0.0381 cPS |
Product Details
Flange Bearing
Shipping Information
| height | 3.81 |
|---|---|
| length | 10.16 |
| width | 10.01 |
| country of origin | US |
|---|---|
| weight | 0.540000 |
