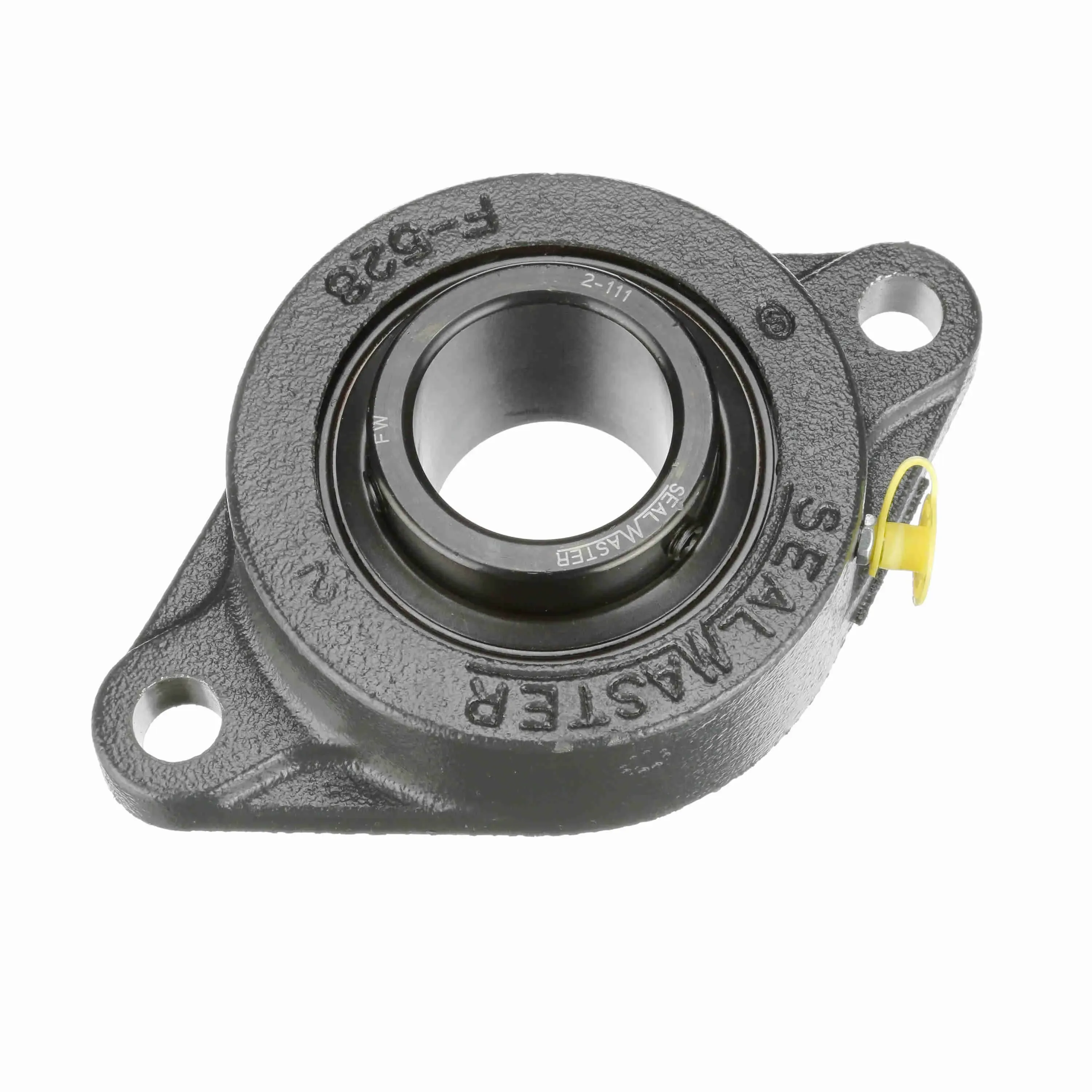

SEALMASTER SFT-27 700555 Flange Bearing, 2 Bolt, 1-11/16 Inch Bore, Cast Iron, Set Screws, 7-13/32 Inch Length

Item: BE6MRD
Model: SFT-27
12 In Stock

Ships within 2 days via

£534.59
5.00% off
£507.86/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Back Side To Center Width 0.828"
Bearing Insert Finish Black Oxide
Bearing Insert Material Steel
Bearing Insert Material Grade 52100
Bearing Insert Type Standard Duty
Bearing Material Grade Grade 52100
Bolt Size 9/16"
Bolt Spacing 5.8438"
Bore Dia. 1 11/16"
Bore Diameter 1 11/16"
Bore Shape Straight
Bore Type Cylindrical
Cage Material Polyphenylene Sulfide
Cage Type Land Riding Retainer
Closure Double Sealed
Dynamic Load Capacity 7901 lbs.
End Cap No
Expansion Type Fixed
Features Available With High Temperature Bearings, Wide Inner Ring Bearing
Fixed Vs. Expansion Fixed
Flange Thickness 9/16"
Foot Height 14/25"
Grease Fitting Thread Size 1/4"-28
Housing Coating Powder Coated
Housing Color Black
Housing Construction One Piece
Housing Material Cast Iron
Housing Style Flange Block
Housing Type Flange, Two Bolt
Htc 8483.20.4040
Included Bearing UC209-27
Includes Set Screw
Inner Race Heat Treat Method Zone Hardened
Inner Ring Outside Diameter 2.297"
Insert 2-111
Length Through Bore 1.938"
Lubricant Material Nlgi #2 Equivalent
Lubrication Openings One Zirc Fitting
Lubrication Type Lithium Complex NLGI 2 Grease
Max. Operating Temperature 220°F
Max. Speed 3800 RPM
Maximum Speed 3800 RPM
Maximum Temperature 220°F
Minimum Temperature -20°F
Misalignment Capability -2° to +2°
Misalignment Type Static Only
Mount Hole Center-to-center Height 5 27/32"
Mount Hole Center-to-center Length 5 27/32"
Mount Hole Size 19/32"
Mounting Bolt Size 1/2"
Number Of Mount Holes 2
Outer Ring Land Profile Standard
Overall Height 2.047"
Overall Length 7.06"
Overall Width 4.38"
Pilot Configuration No Pilot
Radial Clearance Standard
Rolling Element Ball Bearing
Rolling Element Rows 1
Seal Material Felt
Seal Type Felt Labyrinth Seal
Self Lubricating Bearing No
Shaft Locking Type Set Screw
Size Code 2-111
Static Load Rating 5139 lbs.
Static Radial Load Capacity 5139 lbf.

Product Details

Shipping Information

height 5.87
length 11.76
width 19.05
country of origin MX
weight 2.128500
