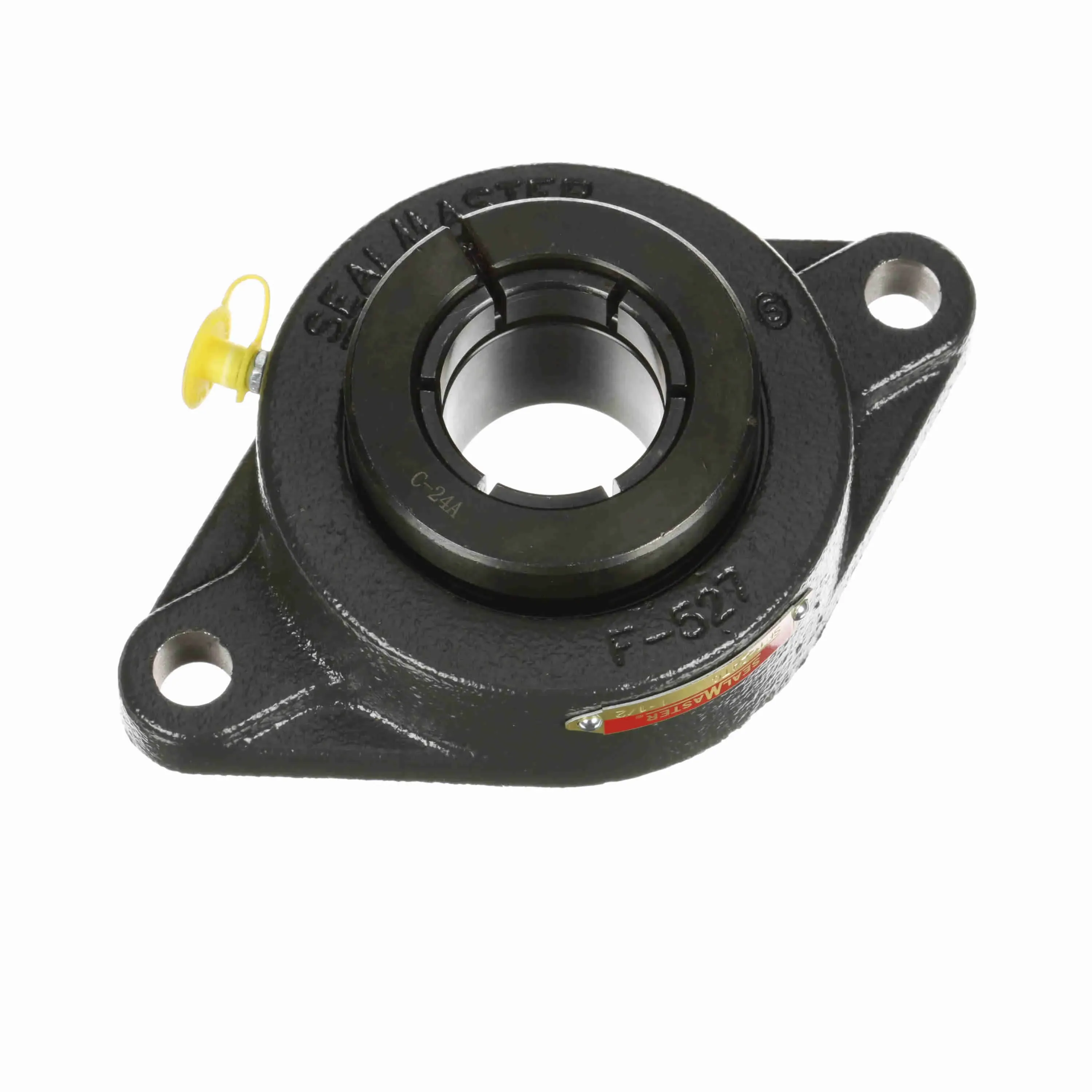

SEALMASTER SFT-24TC 705864 Flange Block Bearing, 2 Bolt Flange Block, 1.5 Inch Bore, 5.7 Inch Bolt Dia
Item: BF2DNH
Model: SFT-24TC
In Stock
Get it by Friday, Apr 17
£237.9/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | Yes |
|---|---|
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 1/2" |
| Bolt Spacing | 5.6363" |
| Bore Dia. | 1 1/2" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 7340 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 14/25" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Two Bolt |
| Htc | 8483.20.4040 |
|---|---|
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.083" |
| Insert | 2-18TC |
| Locking Collar Outside Diameter | 2.69" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 4150 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.078" |
| Overall Length | 6 3/4" |
| Overall Width | 4.13" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal |
| Shaft Locking Type | Concentric |
| Size Code | 2-19 |
| Static Load Rating | 4467 lbs. |
Product Details
Shipping Information
| Height | 5.87 |
|---|---|
| Length | 11.76 |
| Width | 19.05 |
| Country Of Origin | US |
|---|---|
| Weight | 2.070000 |
Related Products
| Style | Model | Bore Dia. | Housing Material | Number Of Mounting Holes | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|
| A | SFT-16 LT | - | Cast Iron | - | 152.56 | |
| B | SFT-14T | 7/8" | Cast Iron | - | 143.62 | |
| C | SFT-12C | 3/4" | Cast Iron | - | 96.59 | |
| D | SFT-31 BEV CRY | - | - | - | 202.60 | |
| E | SFT-20 | 1 1/4" | Cast Iron | - | 385.56 | |
| F | SFT-8 | 1/2" | Cast Iron | - | 296.28 | |
| G | SFT-207 DRT | - | Cast Iron | - | 283.26 |
