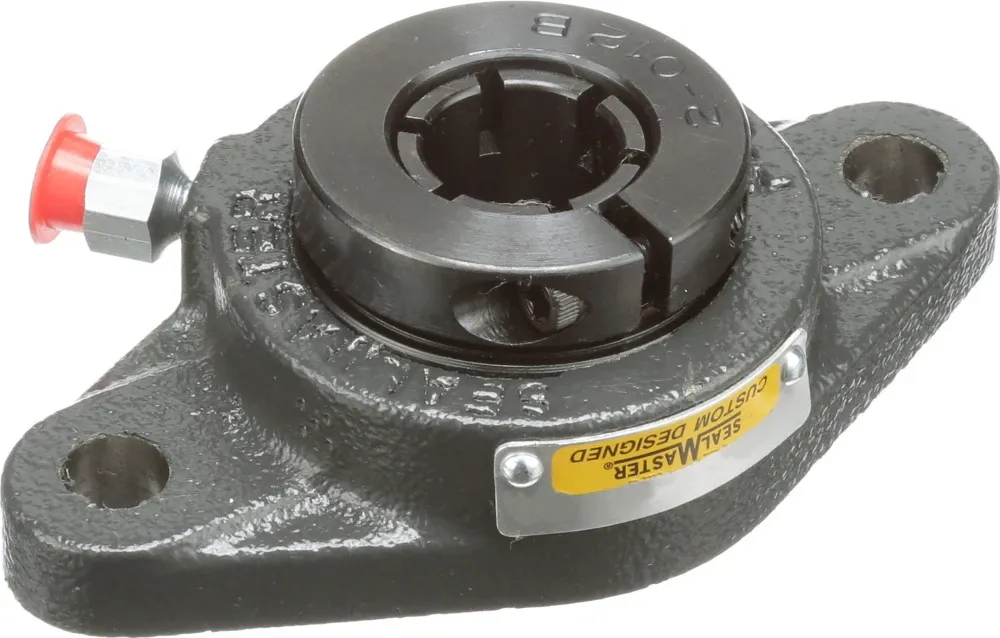

SEALMASTER SFT-20T HTC Flange Bearing, 2 Bolt, 1.25 Inch Dia, Skwezloc Locking, High Temp Contact Seal
Item: BE3BXC
Model: SFT-20T HTC
17 In Stock
Ships within 2 days via
£342.11/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Duty Series | Standard |
|---|---|
| Finish | Black Oxide |
| Fixed Vs. Expansion | Fixed |
| Grade | Grade 52100 |
| Grease Type | Goldplex-HP |
| Housing Base | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two Bolt Flange |
| Inner-race Heat-treat Method | Zone Hardened |
| Locking Device | Skwezloc Concentric |
|---|---|
| Max. Operating Temperature | 220°F |
| Product Type | Sealmaster Gold-Standard |
| Retainer Type | Metal Land Riding |
| Rolling Element | Ball |
| Seal Flinger | Yes |
| Seal Type | Standard Felt Seal |
| Shaft Size | 1 1/4" |
| no. links/ ft. | 0 |
Product Details
Shipping Information
| Height | 12.7 |
|---|---|
| Length | 12.7 |
| Width | 9.52 |
|---|---|
| Weight | 1.575000 |
Related Products
| Style | Model | Bore Dia. | Housing Material | Number Of Mounting Holes | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|
| A | SFT-16 LT | - | Cast Iron | - | 152.56 | |
| B | SFT-14T | 7/8" | Cast Iron | - | 143.62 | |
| C | SFT-12C | 3/4" | Cast Iron | - | 96.59 | |
| D | SFT-31 BEV CRY | - | - | - | 202.60 | |
| E | SFT-20 | 1 1/4" | Cast Iron | - | 385.56 | |
| F | SFT-8 | 1/2" | Cast Iron | - | 296.28 | |
| G | SFT-207 DRT | - | Cast Iron | - | 283.26 |
