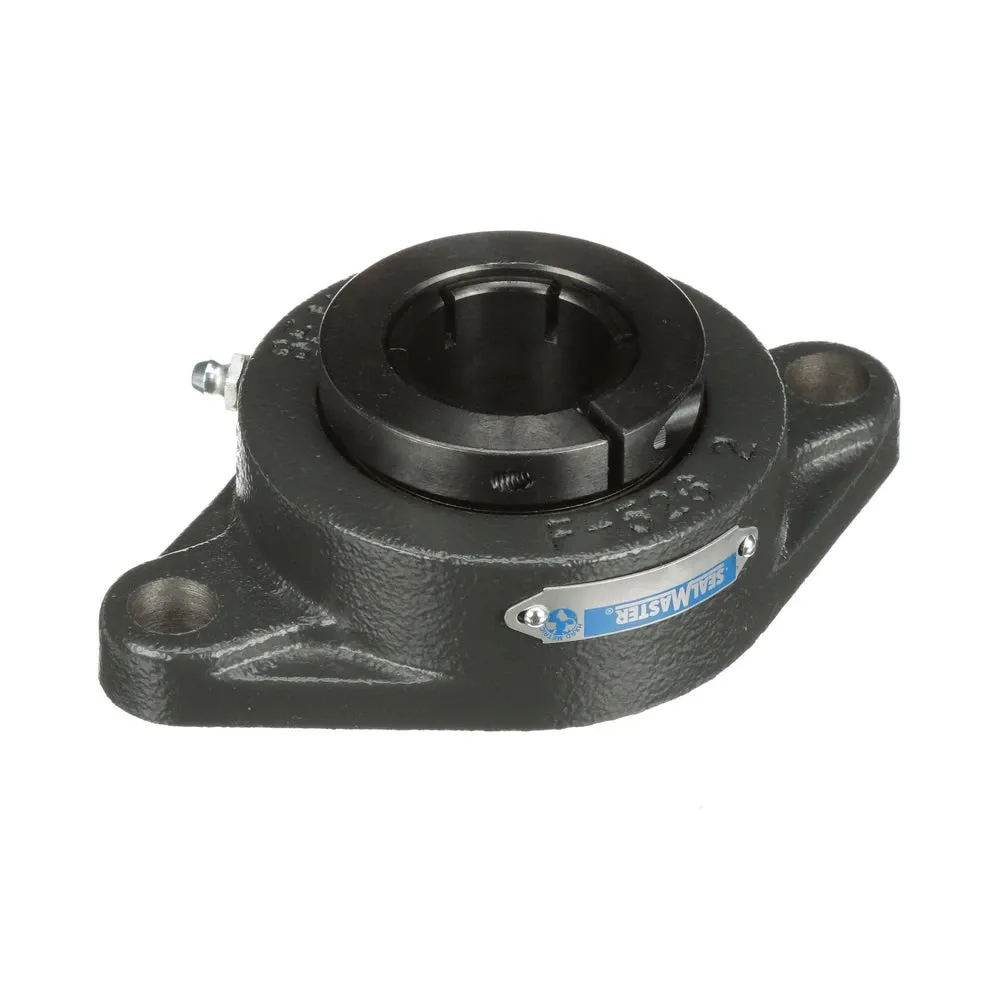

SEALMASTER SFT-205TM Flange-Mount Ball Bearing Unit, 25 Mm Bore
Item: BE4LNZ
Model: SFT-205TM
In Stock
Get it by Thursday, Apr 16
£161.6/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bearing Design | Non Expansion |
|---|---|
| Bearing Insert Coating | Black Oxide |
| Bearing Type | Ball Bearing |
| Bolt Center To Center Length | 98.8 mm |
| Bolt Size | M10 |
| Bore Shape | Straight |
| Centerline To Front Face | 0.9" |
| End Type | Open End |
| Expansion | No |
| Family Series | Sealmaster Bearings, SFT Series |
| Flange Type | 2 Bolt Flange |
| Foot Height | 0.531" |
| Housing Base | Solid |
| Housing Color | Gray |
| Housing Construction | One Piece |
| Housing Length | 4 7/8" |
| Housing Material | Cast Iron |
| Housing Width | 26.2 mm |
|---|---|
| Inner Race Heat Treat Method | Zone Hardened |
| Insert Material | 52100 Bearing Steel, Black Oxided |
| Locking Device | Skwezloc Concentric Collar |
| Locking Type | Concentric |
| Misalignment Type | Static Only |
| Operating Temp. Range | -20°F to +220°F |
| Overall Height To Inner Ring | 38.1 mm |
| Overall Width | 69.9 mm |
| Pilot Configuration | No Pilot |
| Retainer Type | Land Riding |
| Seal Type | Felt Labyrinth |
| Series | SFT-T Series |
| Shaft Dia. | 25 mm |
| Speed Max | 9000 RPM |
| Type Of Bearing | Ball |
Product Details
Shipping Information
| Width | 6.99 |
|---|
| Weight | 0.765000 |
|---|
Related Products
| Style | Model | Bore Dia. | Housing Material | Number Of Mounting Holes | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|
| A | SFT-16 LT | - | Cast Iron | - | 152.56 | |
| B | SFT-14T | 7/8" | Cast Iron | - | 143.62 | |
| C | SFT-12C | 3/4" | Cast Iron | - | 96.59 | |
| D | SFT-31 BEV CRY | - | - | - | 202.60 | |
| E | SFT-20 | 1 1/4" | Cast Iron | - | 385.56 | |
| F | SFT-8 | 1/2" | Cast Iron | - | 296.28 | |
| G | SFT-207 DRT | - | Cast Iron | - | 283.26 |
