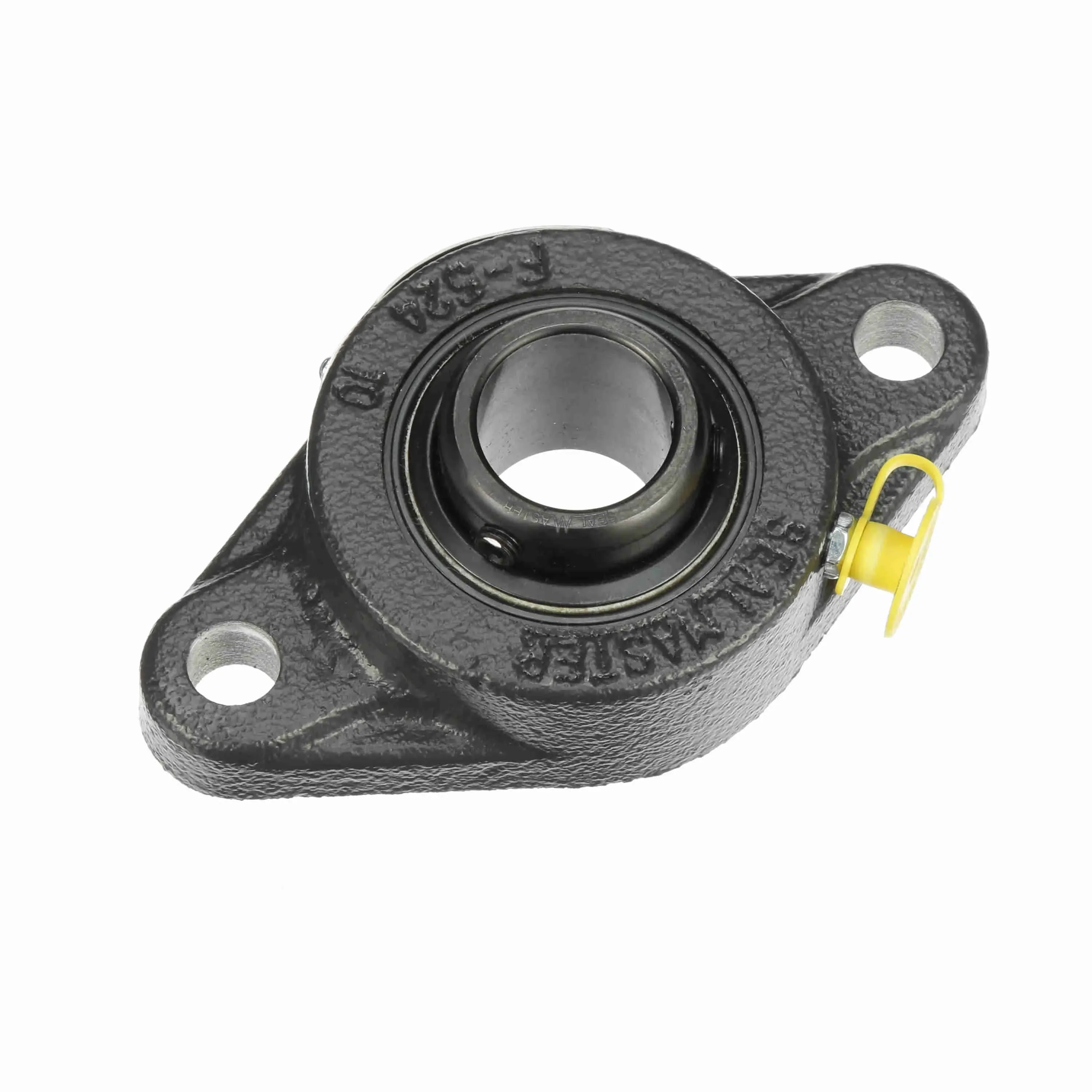

SEALMASTER SFT-205 710019 Gold Soft Metric Unit
Item: BE2WRX
Model: SFT-205
26 In Stock
Ships within 2 days via
£278.82/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Bearing Insert Finish | Black Oxide |
|---|---|
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bearing Type | Standard Duty |
| Bore Dia. | 25 mm |
| Bore Shape | Straight |
| Cage Type | Land Riding Retainer |
| Duty Series | Standard |
| Dynamic Load Capacity | 2801 lbs. |
| End Cap | No |
| Finish | Black Oxide |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.53" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/4"-28 |
| Grease Type | Goldplex-HP |
| Height | 3.94" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 1 3/8" |
| Inner Ring Outside Diameter | 1 3/8" |
|---|---|
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 5205 |
| Length | 4" |
| Length Through Bore | 1 3/8" |
| Locking Device | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 6350 RPM |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 1.438" |
| Overall Width | 2 3/4" |
| Pilot Configuration | No Pilot |
| Product Type | Sealmaster Gold-Standard |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Seal Flinger | Yes |
| Setscrew Torque | 85 lbs.-in. |
| Shaft Locking Type | Set Screw |
| Shaft Size | 25 mm |
| Size Code | 2-015 |
| Static Load Rating | 1651 lbs. |
| Width | 1 1/2" |
| no. links/ ft. | 0 |
Product Details
Yes
Shipping Information
| height | 3.81 |
|---|---|
| length | 10.16 |
| width | 10.01 |
| country of origin | MX |
|---|---|
| weight | 0.666000 |
