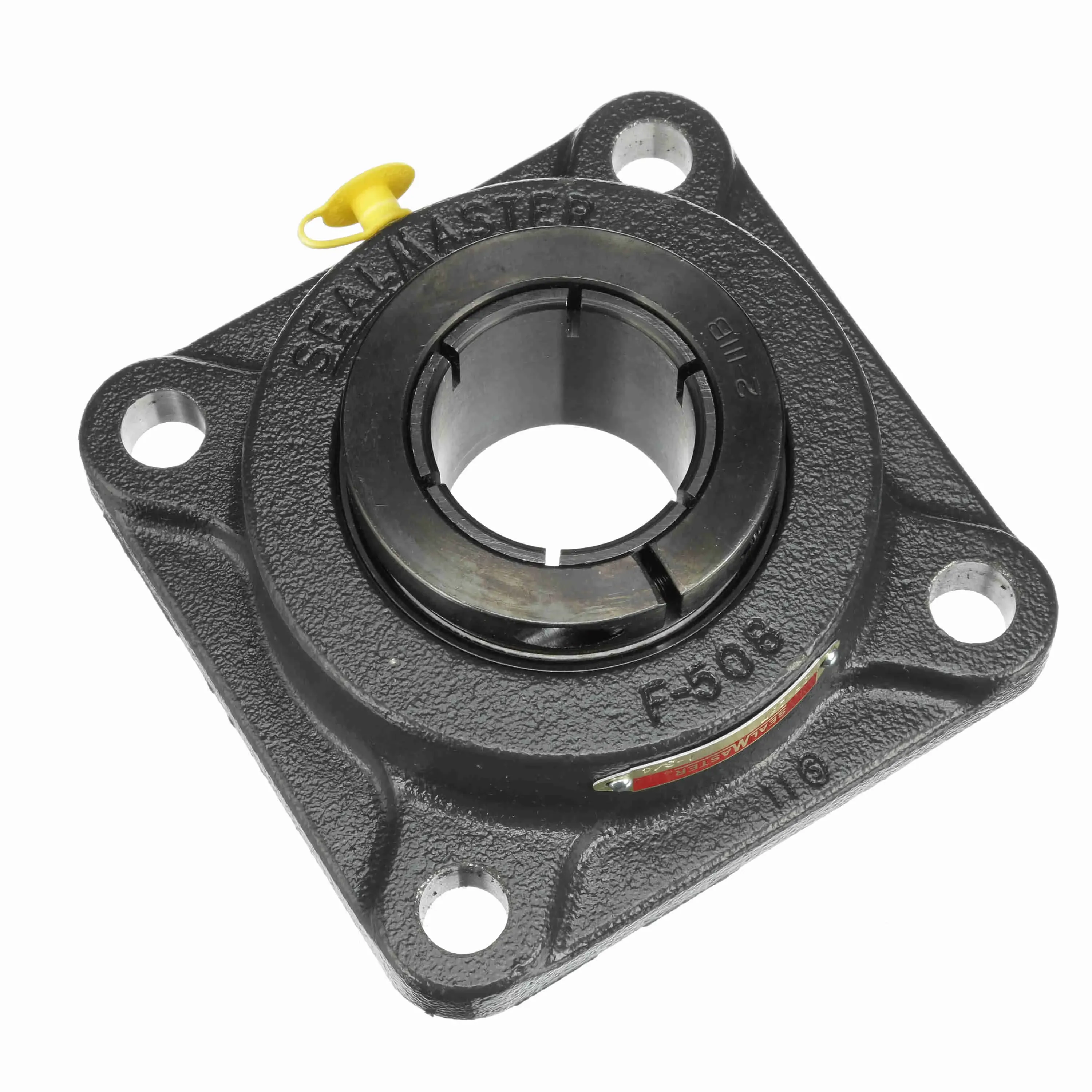

SEALMASTER SF-28T 705435 Mounted Cast Iron Four Bolt Flange Ball Bearing
Item: BE4RDN
Model: SF-28T
18 In Stock
Ships within 2 days via
£377.94/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bearing Insert Finish | Black Oxide |
|---|---|
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bearing Type | Standard Duty |
| Bolt Size | 9/16" |
| Bolt Spacing | 4 1/8" |
| Bore Dia. | 1 3/4" |
| Bore Shape | Straight |
| Cage Type | Land Riding Retainer |
| Duty Series | Standard |
| Dynamic Load Capacity | 7901 lbs. |
| End Cap | No |
| Finish | Black Oxide |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 14/25" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/4"-28 |
| Grease Type | Goldplex-HP |
| Height | 2.19" |
| Housing Backside Inner Dia. | 3 22/25" |
| Housing Backside Inner Diameter | 3.88" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
|---|---|
| Inner Ring Outside Dia. | 2.307" |
| Inner Ring Outside Diameter | 2.307" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 2-112T |
| Insert Material | Steel |
| Length | 5.94" |
| Length Through Bore | 2.06" |
| Locking Collar Outside Diameter | 3" |
| Locking Device | Skwezloc Concentric |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Speed | 5300 RPM |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.167" |
| Overall Length | 5.38" |
| Overall Width | 5.38" |
| Pilot Configuration | No Pilot |
| Product Line | Sealmaster Gold Standard |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Shaft Locking Type | Concentric |
| Shaft Size | 1 3/4" |
| Size Code | 2-111 |
| Static Load Rating | 5139 lbs. |
| Width | 6.06" |
| no. links/ ft. | 0 |
Product Details
Yes
Shipping Information
| height | 15.39 |
|---|---|
| length | 15.09 |
| width | 5.56 |
| country of origin | MX |
|---|---|
| weight | 2.763000 |
