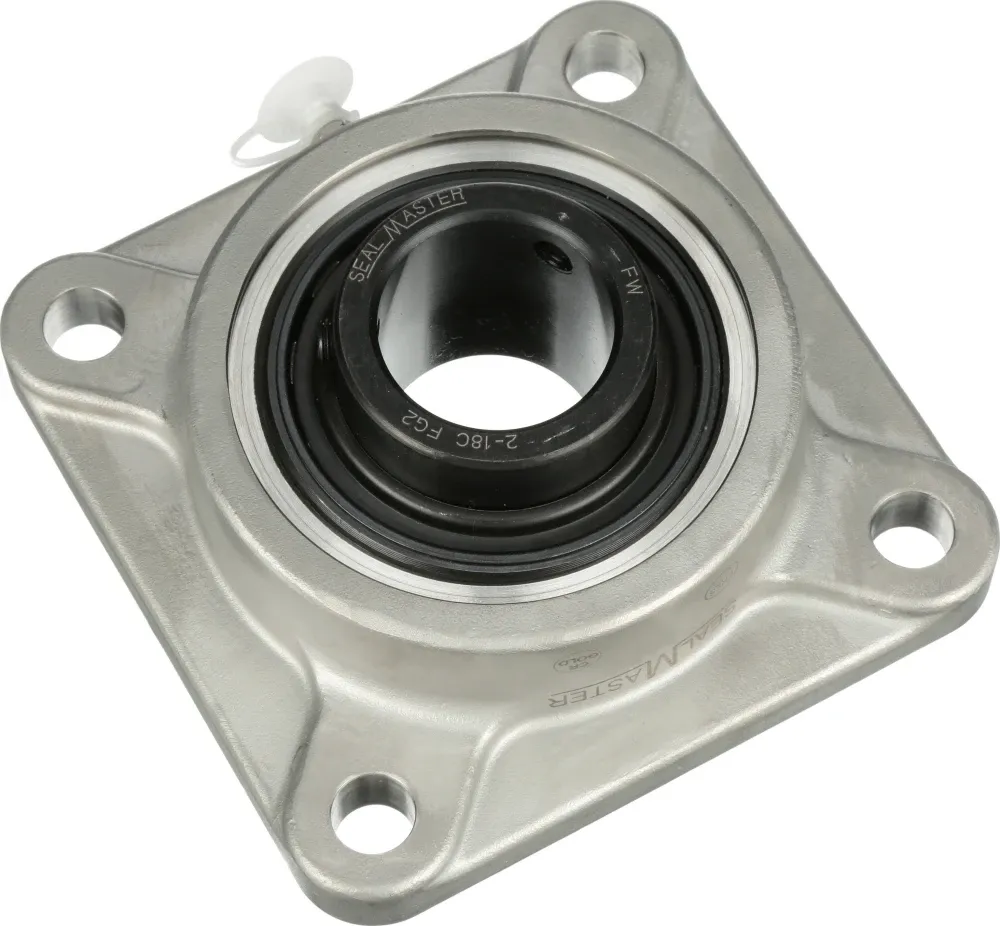

SEALMASTER SF-209C CR Flange Bearing, 4 Bolt, 45mm Dia, Setscrew Locking, Contact Seal
Item: BD9ZFJ
Model: SF-209C CR
29 In Stock
Ships within 2 days via
£630.92/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Duty Series | Standard |
|---|---|
| Finish | Black Oxide |
| Fixed Vs. Expansion | Fixed |
| Grade | Grade 52100 |
| Grease Type | Goldplex-HP |
| Housing Base | Solid |
| Housing Material | Cast Iron |
| Housing Type | Four Bolt Flange |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert Material | Steel |
|---|---|
| Locking Device | Setscrew |
| Max. Operating Temperature | 250°F |
| Product Line | Sealmaster Gold Standard |
| Retainer Type | Metal Land Riding |
| Rolling Element | Ball |
| Seal Type | Contact Seal |
| Shaft Size | 45 mm |
| no. links/ ft. | 0 |
Product Details
Flange Bearing
Shipping Information
| height | 5.56 |
|---|---|
| length | 15.39 |
| width | 15.09 |
|---|---|
| weight | 2.565000 |
