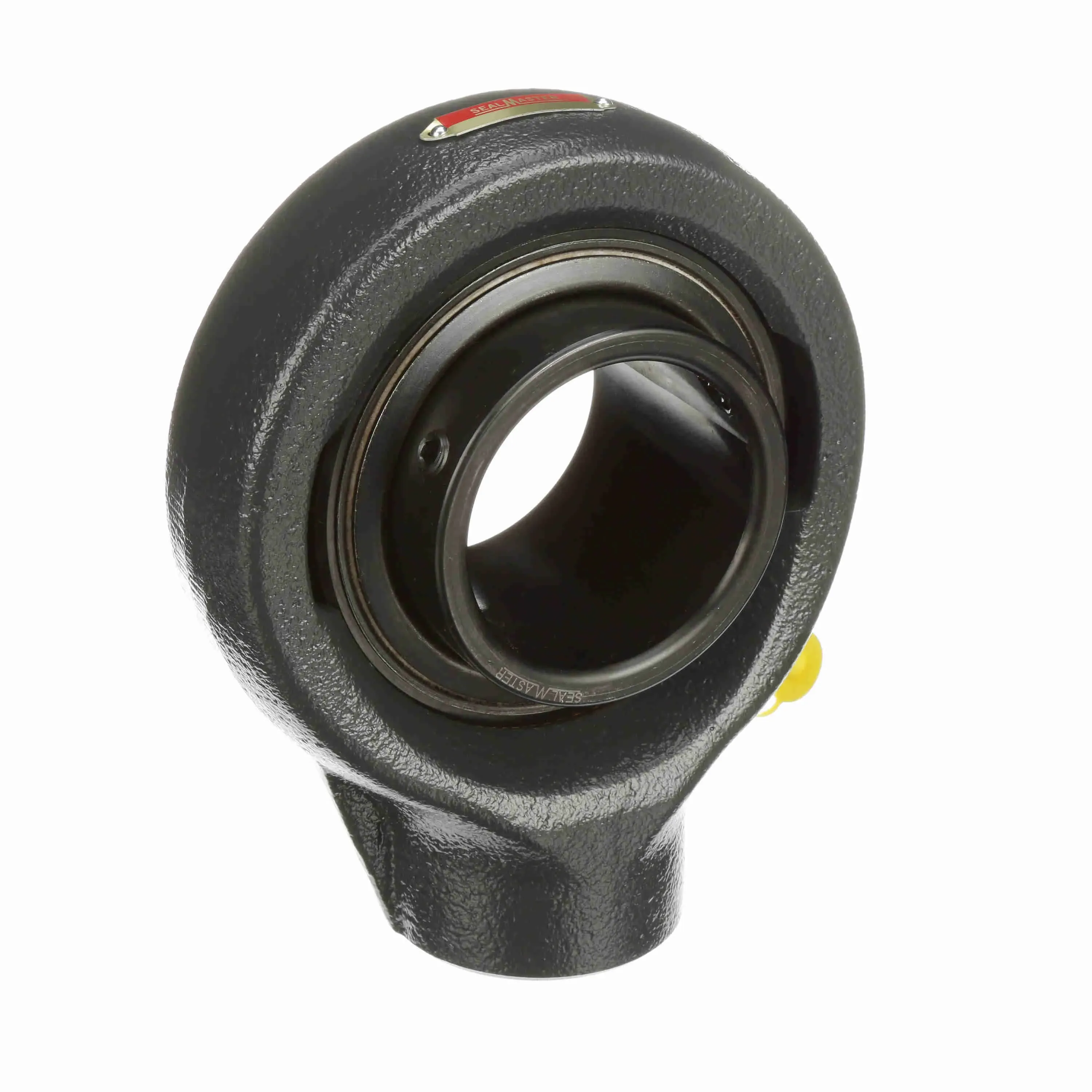

SEALMASTER SEHB-47 BDZ 717953 Ball Bearing, Hanger Unit, Setscrew Lock, High Vibration Features, 2.938 Inch

Item: BE4DNR
Model: SEHB-47 BDZ
In Stock

Get it by Thursday, Apr 16

£1104.32/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ability To Relubricate Yes
Base To Center Height 4 5/8"
Base Width 2 3/4"
Bearing Insert Finish Black Oxide
Bearing Insert Material Steel
Bearing Insert Material Grade 52100
Bearing Insert Type Standard Duty
Bearing Type Standard Duty
Bore Dia. 2 15/16"
Bore Shape Straight
Cage Material Brass
Cage Type Land Riding Retainer
Centerline To Outermost Bearing Face 1 3/4"
Duty Series Standard
Dynamic Load Capacity 14839 lbs.
End Cap No
Fixed Vs. Expansion Fixed
Grade Grade 52100
Grease Fitting Thread Size 1/8"
Grease Fitting Thread Type NPT
Grease Type Goldplex-HP
Height 3 1/2"
Housing Coating Powder Coated
Housing Color Black
Housing Construction One Piece
Housing Material Cast Iron
Housing Style Hanger Block
Housing Width 1 3/4"
Htc 8483.20.4040
Inner Race Heat Treat Method Zone Hardened
Inner Ring Outside Dia. 3.641"
Inner Ring Outside Diameter 3.641"
Inner-race Heat-treat Method Zone Hardened
Insert 2-215
Length 8.13"
Length Through Bore 3.063"
Locking Device Setscrew
Lubricant Lithium Complex NLGI 2 Grease
Lubrication Type Lithium Complex NLGI 2 Grease
Max. Speed 2450 RPM
Misalignment Type Static Only
Options High Vibration Features
Outer Ring Land Profile Standard
Overall Length 6 1/2"
Overall Width 3.06"
Product Type Sealmaster Gold-Standard
Radial Clearance Standard
Retainer Type Metal Land Riding
Seal Flinger Yes
Series SEHB Series
Shaft Locking Type Set Screw
Shaft Size 2 15/16"
Size Code 2-215
Static Load Rating 11224 lbs.
Thread Depth 1 1/4"
Width 7.94"
no. links/ ft. 0

Product Details

Ball Bearing

Shipping Information

height 20.17
length 20.65
width 8.89
country of origin US
weight 6.570000
