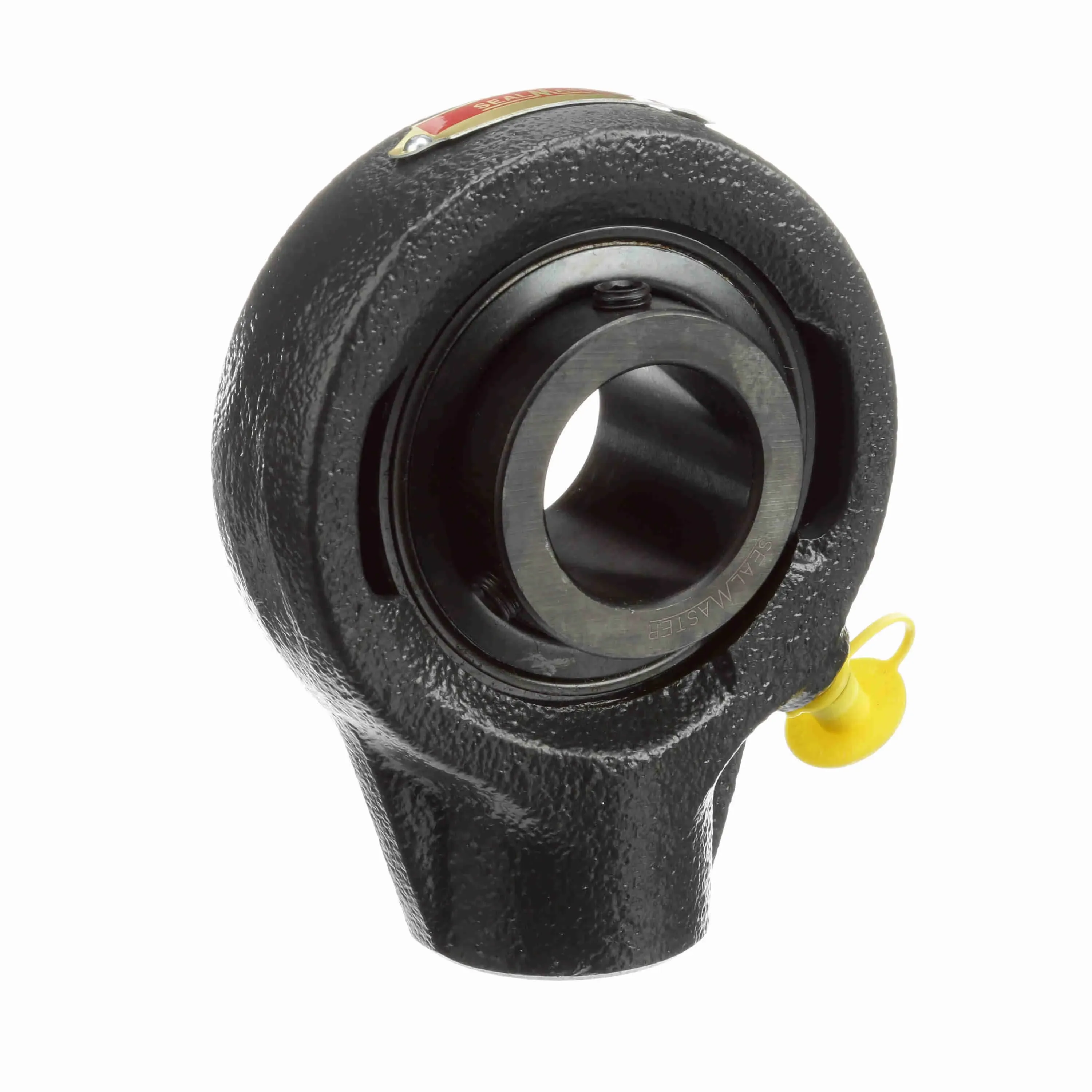

SEALMASTER SEHB-20 BDZ 726160 Ball Bearing, Hanger Unit, Black Oxided, Setscrew Lock, High Vibration Features, 1.25 Inch

Item: BE2NDJ
Model: SEHB-20 BDZ
In Stock

Get it by Wednesday, Apr 15

£309.67/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ability To Relubricate Yes
Base To Center Height 2 3/4"
Base Width 1 14/25"
Bearing Insert Finish Black Oxide
Bearing Insert Material Steel
Bearing Insert Material Grade 52100
Bearing Insert Type Standard Duty
Bore Dia. 1 1/4"
Bore Shape Straight
Cage Material Polyphenylene Sulfide
Cage Type Land Riding Retainer
Centerline To Outermost Bearing Face 1"
Dynamic Load Capacity 5782 lbs.
End Cap No
Fixed Vs. Expansion Fixed
Grease Fitting Thread Size 1/4"-28
Housing Coating Powder Coated
Housing Color Black
Housing Construction One Piece
Housing Material Cast Iron
Housing Style Hanger Block
Housing Type Hanger Unit
Housing Width 1.13"
Htc 8483.20.4040
Inner Race Heat Treat Method Zone Hardened
Inner Ring Outside Diameter 1.862"
Insert 2-14
Length Through Bore 1.685"
Lubrication Type Lithium Complex NLGI 2 Grease
Max. Operating Temperature 220°F
Max. Speed 4650 RPM
Misalignment Capability -2° to +2°
Misalignment Type Static Only
Options High Vibration Features
Outer Ring Land Profile Standard
Overall Height 4 14/25"
Overall Length 3.63"
Overall Width 1.69"
Radial Clearance Standard
Rolling Element Ball Bearing
Seal Type Felt Labyrinth Seal
Series SEHB Series
Shaft Locking Type Set Screw
Size Code 2-17
Static Load Rating 3493 lbs.
Thread Depth 3/4"
Thread Size 3/4"-14
Vibration Frequency Fundamental Train 0.0066 cPS
Vibration Frequency Inner Ring Defect 0.0905 cPS
Vibration Frequency Outer Ring Defect 0.0595 cPS
Vibration Frequency Roller Spin 0.0386 cPS

Product Details

Ball Bearing

Shipping Information

height 4.29
length 11.43
width 11.58
country of origin US
weight 1.575000
