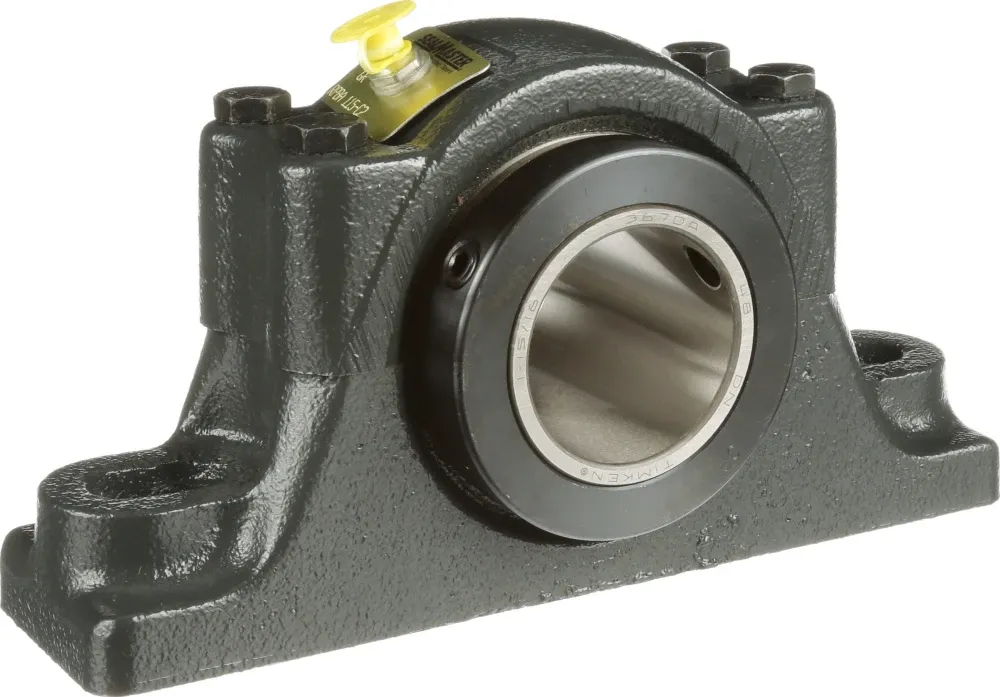

SEALMASTER RPBA 300-C2 Roller Bearing, Pillow Block, 2 Bolt, 3 Inch Dia, Setscrew Locking, Contact Seal
Item: BE7CYM
Model: RPBA 300-C2
In Stock
Get it by Wednesday, Apr 15
£5579.66/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | Yes |
|---|---|
| Base To Center Height | 3 1/8" |
| Base Width | 3" |
| Bearing Insert Finish | Uncoated |
| Bolt Center Max | 9.688" |
| Bolt Center Min | 8.063" |
| Bolt Size | 3/4" |
| Bore Shape | Straight |
| Centerline To Front Face | 2 1/4" |
| Collar Outer Dia. | 4 3/4" |
| Duty Series | Standard |
| Dynamic Radial Load Capacity | 9630 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1 3/4" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 4.63" |
| Housing Base | Semi-Solid |
| Housing Color | Gray |
| Housing Construction | Split Two Piece |
| Housing Material | Cast Iron |
| Housing Type | Pillow Block, Two Bolt |
| I.d. | 3" |
| Inner Race Length | 3.688" |
| Inner-race Heat-treat Method | Case Carburized Inner Ring |
| Insert Material | Steel |
|---|---|
| Insert Number | RCIA-300C |
| Internal Clearance | Standard |
| Length | 12.13" |
| Locking Device | Single Set Screw |
| Locking Type | Collar Mount |
| Lubricant | Lithium, Ep, NLGI#2 |
| Max. Operating Temperature | 250°F |
| Max. Speed | 1750 RPM |
| Measure Units | Imperial |
| Misalignment Capability | ±3° Misalignment Static Only |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 6 3/8" |
| Overall Length | 11 3/4" |
| Overall Width | 3.69" |
| Platform | RPB Series |
| Replaceable Insert | Yes |
| Retainer Material | Steel |
| Retainer Type | Steel |
| Rolling Element | Tapered-Roller |
| Seal Flinger | No |
| Seal Type | Contact |
| Series | RPBA Series |
| Shaft Size | 3" |
| Width | 6 3/4" |
| no. links/ ft. | 0 |
Product Details
Roller Bearing
Shipping Information
| height | 16.19 |
|---|---|
| length | 29.84 |
| width | 9.37 |
|---|---|
| weight | 13.185000 |
Related Products
| Style | Model | Housing Type | Overall Height | Overall Length | Overall Width | Bore Dia. | Shaft Size | Seal Type | Max. Speed | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | RPBA 303-2 | Pillow Block, Two Bolt | 7 3/4" | 13 3/4" | 4.19" | - | 3 3/16" | Felt | 1500 RPM | 7,080.07 | |
| B | RPBA 203-2 | - | 5 1/8" | 9 5/8" | 3.13" | 2 3/16" | 2 3/16" | - | 2500 RPM | 1,575.31 | |
| C | RPBA 307-4 | Pillow Block, Four Bolt | 7 3/4" | 13 3/4" | 4.19" | - | 3 7/16" | Felt | 1500 RPM | 6,805.11 | |
| D | RPBA 303-4 | Four Bolt Pillow Block | - | - | - | - | 3 3/16" | Felt | - | 7,237.38 | |
| B | RPBA 115-C2 | - | 4 5/8" | 8 7/8" | 2.95" | 1 15/16" | 1 15/16" | - | 2500 RPM | 831.73 | |
| E | RPBA 400-4 | Pillow Block, Four Bolt | 8 5/8" | 15 1/4" | 5 1/4" | - | 4" | Felt | 1250 RPM | 10,364.17 | |
| F | RPBA 115-2 | - | 4 5/8" | 8 7/8" | 2.95" | 1 15/16" | 1 15/16" | - | 2500 RPM | 831.73 |
