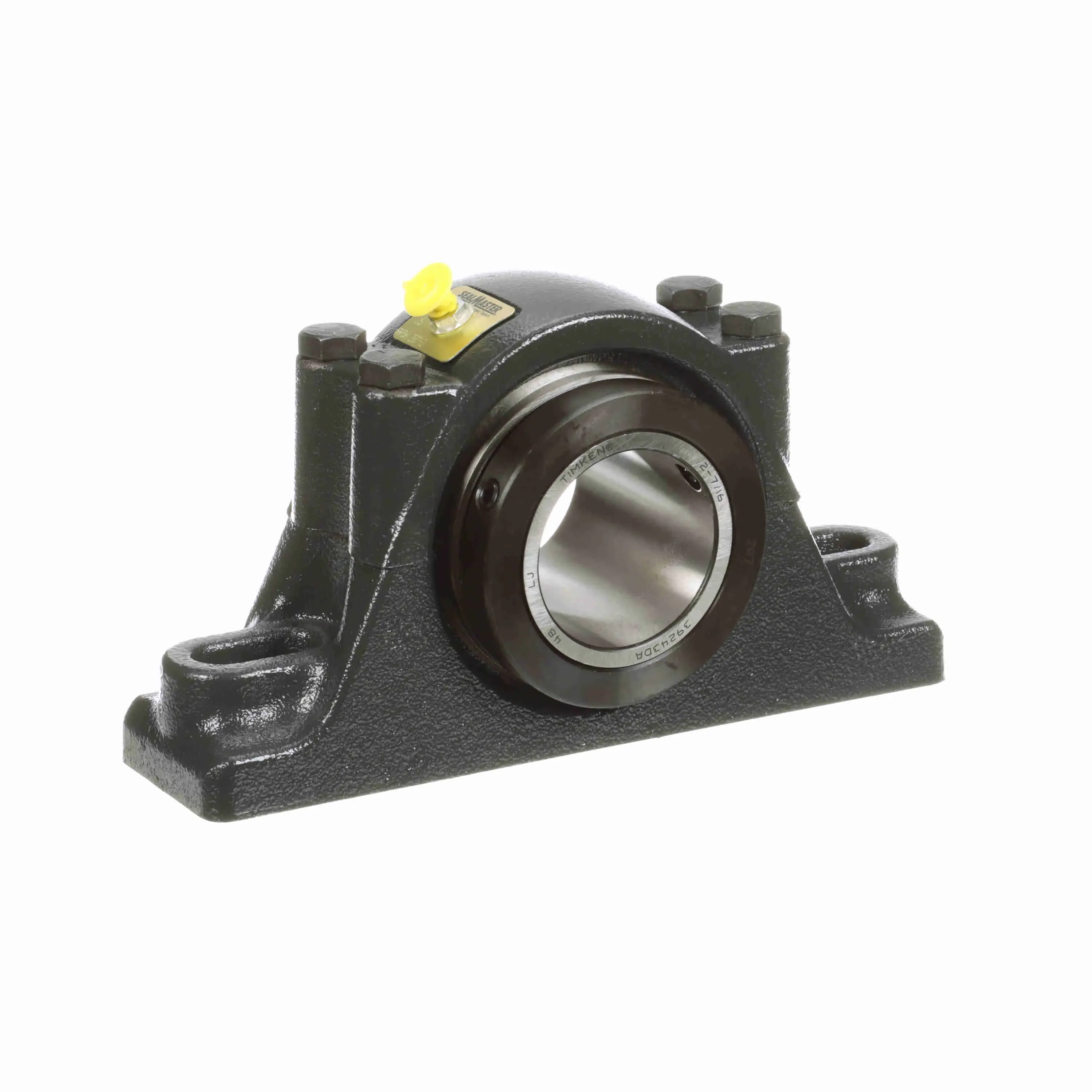

SEALMASTER RPBA 207-2 551866 Pillow Block Bearing, 2 Bolt, 2.43 Inch Bore, 2.75 Inch Base to Center Height

Item: BF3UDM
Model: RPBA 207-2
In Stock

Get it by Friday, Apr 17

£1043.09/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ability To Relubricate Yes
Base To Center Height 2 3/4"
Base Width 2 3/4"
Bearing Insert Finish Uncoated
Bolt Center Max 8.688"
Bolt Center Min 6.938"
Bolt Center-to-center Length 7.815"
Bolt Size 5/8"
Bore Dia. 2 7/16"
Bore Shape Straight
Centerline To Front Face 2"
Collar Outer Dia. 3.938"
Collar Outer Diameter 3.938"
Duty Series Standard
Duty/series Standard Series
Dynamic Radial Load Capacity 9030 lbs.
End Cap No
Expansion No
Foot Height 1.813"
Grade Grade 52100
Grease Fitting Thread Size 1/8"
Grease Fitting Thread Type NPT
Height 4.13"
Housing Base Solid
Housing Color Gray
Housing Construction Split Two Piece
Housing Material Cast Iron
Housing Style Pillow Block
Htc 8483.20.8080
I.d. 2 7/16"
Inner Race Heat Treat Method Case Carburized Inner Ring
Inner Race Length 3.313"
Insert Material Steel
Insert Material Grade 52100
Insert Number RCIA-207
Internal Clearance Standard
Length 10 1/2"
Locking Device Single Set Screw
Locking Type Collar Mount
Lubrication Type Lithium, EP, NLGI
Max. Operating Temperature 220°F
Max. Speed 2000 RPM
Misalignment Type Static Only
Outer Ring Land Profile Standard
Overall Height 5 5/8"
Overall Length 10 3/8"
Overall Width 3.31"
Platform RPB Series
Replaceable Insert Yes
Retainer Material Steel
Series RPBA Series
Shaft Size 2 7/16"
Width 5.88"

Product Details

Shipping Information

Height 14.94
Length 26.67
Width 10.49
Country Of Origin US
Weight 9.315000
