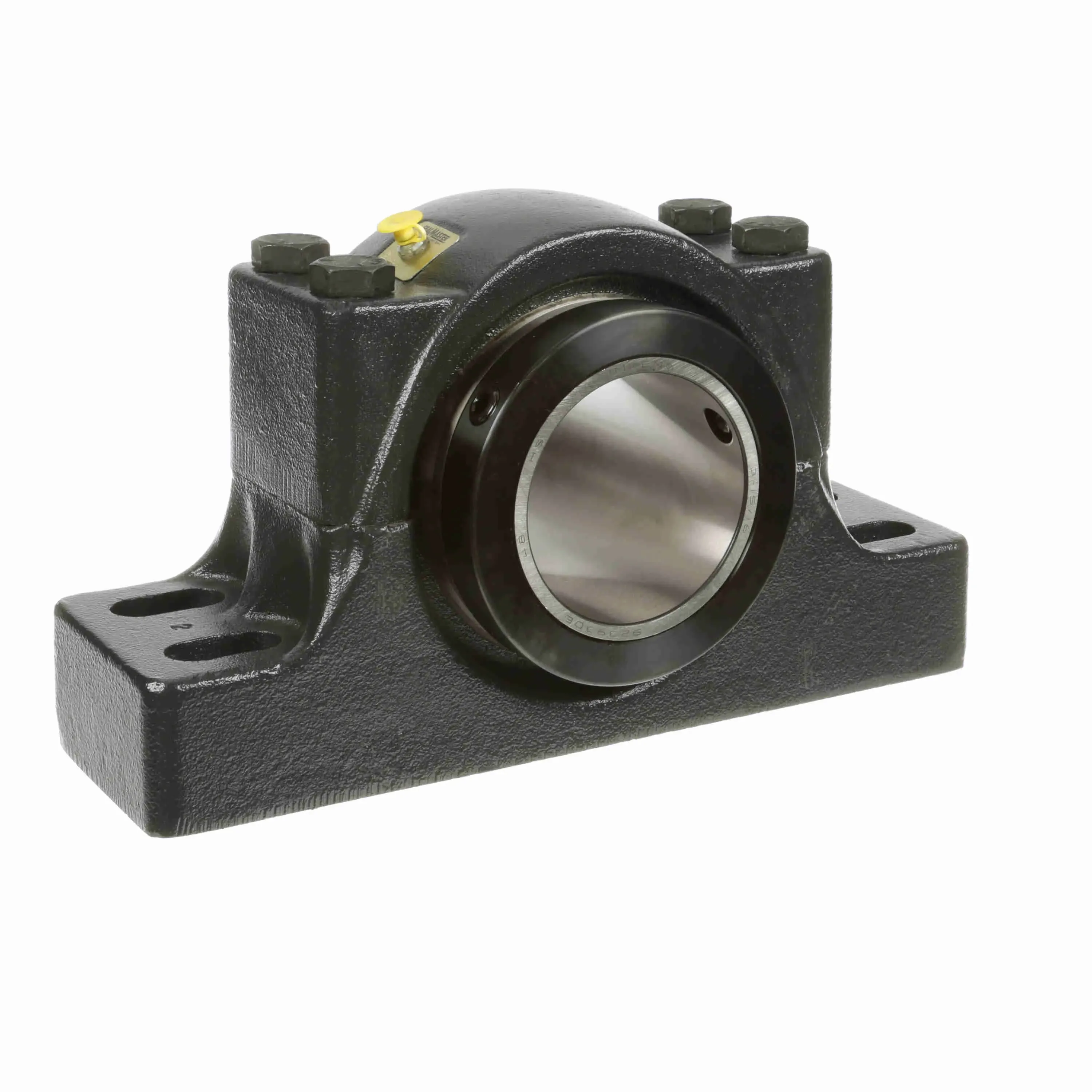

SEALMASTER RPB 315-C4 559868 Pillow Block Bearing, 3 15/16 Inch Bore, 4 Holes, 4 1/4 Inch Shaft Ht, 11 Inch Mount Lg
Item: BD6WBY
Model: RPB 315-C4
In Stock
Get it by Thursday, Apr 16
5.00% off
£5451.79/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Base Height | 2.438" |
|---|---|
| Base To Center Height | 4 1/4" |
| Base Width | 4.5" |
| Bearing Insert Finish | Uncoated |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Tapered Roller |
| Bearing Material Grade | Grade 52100 |
| Bolt Center Max | 13" |
| Bolt Center Min | 11" |
| Bolt Center-to-center Length | 12" |
| Bolt Size | 3/4" |
| Bore Dia. | 3 15/16" |
| Bore Diameter | 3 15/16" |
| Bore Shape | Straight |
| Bore Type | Cylindrical |
| Centerline To Front Face | 3 1/8" |
| Closure | Double Sealed |
| Collar Outer Dia. | 5.938" |
| Collar Outer Diameter | 5.938" |
| Duty Series | Standard |
| Duty/series | Standard Series |
| Dynamic Axial Load Capacity | 20980 lbf. |
| Dynamic Radial Load Capacity | 20980 lbs. |
| End Cap | No |
| Expansion | No |
| Expansion Type | Fixed |
| Foot Height | 2.438" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 9.63" |
| Housing Color | Gray |
| Housing Construction | Split Two Piece |
| Housing Material | Cast Iron |
| Housing Material Finish | Black Oxide |
| Housing Style | Pillow Block |
| Htc | 8483.20.8080 |
| I.d. | 3 15/16" |
| Inner Race Heat Treat Method | Case Carburized Inner Ring |
| Inner Race Length | 6 1/4" |
|---|---|
| Insert Material | Steel |
| Insert Material Grade | 52100 |
| Insert Number | RCI-315C |
| Internal Clearance | Standard |
| Length | 16 1/2" |
| Locking Device | Double Set Screw |
| Locking Type | Double Collar Mount |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Speed | 1250 RPM |
| Maximum Misalignment Angle | 3° |
| Maximum Speed | 1250 RPM |
| Maximum Temperature | 220°F |
| Minimum Temperature | -20°F |
| Misalignment Type | Static Only |
| Mount Hole Center-to-center Length | 11" |
| Mount Hole Center-to-center Width | 12" |
| Mount Type | Bolt Through |
| Mounting Bolt Size | 3/4" |
| Mounting Surface To Shaft Center Height | 4 1/4" |
| Number Of Mount Holes | 4 |
| Outer Ring Land Profile | Standard |
| Overall Height | 8 5/8" |
| Overall Length | 15.25" |
| Overall Width | 6 1/4" |
| Platform | RPB Series |
| Replaceable Insert | Yes |
| Retainer Material | Steel |
| Retainer Type | Steel |
| Seal Flinger | No |
| Seal Material | Felt |
| Series | Rpb |
| Shaft Locking Type | Set Screws |
| Shaft Size | 3 15/16" |
| Split Housing | Split Horizontally |
| Static Radial Load Capacity | 9800 lbf. |
| Width | 6 3/4" |
| no. links/ ft. | 0 |
Product Details
Shipping Information
| Height | 17.14 |
|---|---|
| Length | 41.91 |
| Width | 24.46 |
| Country Of Origin | US |
|---|---|
| Weight | 34.605000 |
Related Products
| Style | Model | Overall Length | Overall Height | Bore Dia. | Overall Width | Mount Hole Center-to-center Length | Mounting Bolt Size | Lubricant Material | Housing Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | RPB 203-2 | 9.625" | 5 1/8" | 2 3/16" | 3 3/4" | 7 15/16" | 5/8" | Ngli #2 Equivalent | - | 1,336.06 | |
| B | RPB 200-2 | 8.875" | 4 5/8" | 2" | 3 1/2" | 7 3/16" | 5/8" | Ngli #2 Equivalent | - | 1,319.36 | |
| C | RPB 106-2 | 7.25" | 3.813" | 1 3/8" | 3" | 5 15/16" | 1/2" | Ngli #2 Equivalent | - | 1,455.12 | |
| D | RPB 204-C2 CR | 10 3/8" | 5 5/8" | 2 1/4" | 4" | - | - | - | - | 1,130.19 | |
| C | RPB 107-2 | 7.25" | 3.813" | 1 7/16" | 3" | 5 15/16" | 1/2" | Ngli #2 Equivalent | - | 1,120.18 | |
| E | RPB 115-2 | 8.875" | 4 5/8" | 1 15/16" | 3 1/2" | 7 3/16" | 5/8" | Ngli #2 Equivalent | - | 1,297.23 | |
| F | RPB 110-2 | 7 3/4" | 4 3/8" | 1 5/8" | 3.38" | - | - | - | - | 772.68 |
