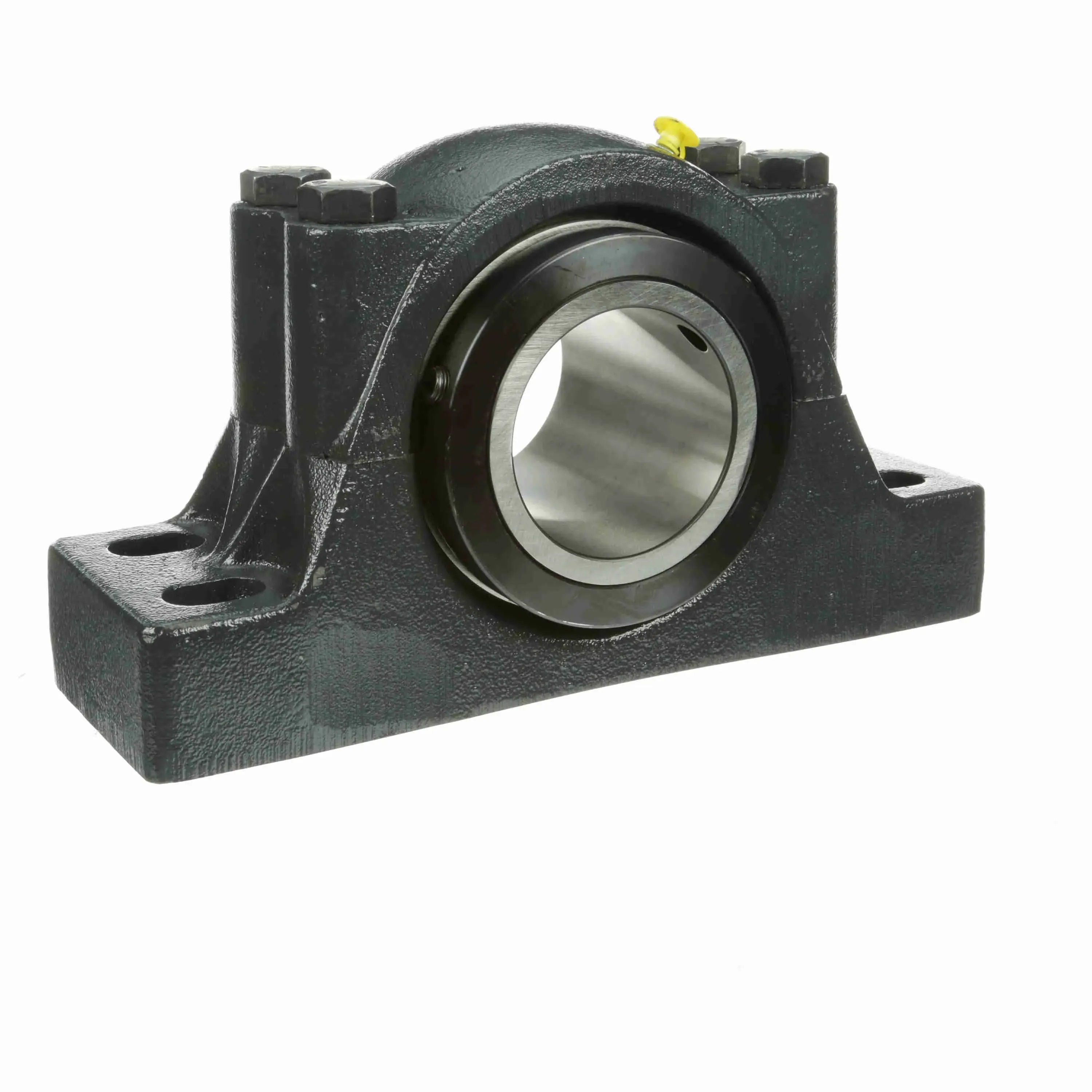

SEALMASTER RPB 307-C4 551277 Roller Bearing, Pillow Block, 4 Bolt, 3.43 Inch Dia, Double Setscrew Locking, Contact Seal
Item: BE7ZZB
Model: RPB 307-C4
In Stock
Get it by Wednesday, Apr 15
£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates
We deliver to your doorstep under DAP terms. Customs clearance is for your account
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | Yes |
|---|---|
| Base To Center Height | 3 3/4" |
| Base Width | 4 1/2" |
| Bearing Insert Finish | Uncoated |
| Bolt Center Max | 11 1/2" |
| Bolt Center Min | 10.563" |
| Bolt Size | 5/8" |
| Bore Dia. | 3 7/16" |
| Bore Shape | Straight |
| Centerline To Front Face | 2 1/2" |
| Collar Outer Dia. | 5.438" |
| Collar Outer Diameter | 5.438" |
| Duty Series | Standard |
| Duty/series | Standard Series |
| Dynamic Radial Load Capacity | 15320 lbs. |
| End Cap | No |
| Expansion | No |
| Foot Height | 2.063" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 9.63" |
| Housing Color | Gray |
| Housing Construction | Split Two Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Htc | 8483.20.8080 |
| I.d. | 3 7/16" |
|---|---|
| Inner Race Heat Treat Method | Case Carburized Inner Ring |
| Inner Race Length | 5" |
| Insert Material | Steel |
| Insert Material Grade | 52100 |
| Insert Number | RCI-307C |
| Internal Clearance | Standard |
| Length | 16 1/2" |
| Locking Device | Double Set Screw |
| Locking Type | Double Collar Mount |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Speed | 1500 RPM |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 7 3/4" |
| Overall Length | 13 3/4" |
| Overall Width | 5" |
| Platform | RPB Series |
| Replaceable Insert | Yes |
| Retainer Material | Steel |
| Retainer Type | Steel |
| Seal Flinger | No |
| Series | Rpb |
| Shaft Size | 3 7/16" |
| Width | 6 3/4" |
| no. links/ ft. | 0 |
Product Details
Roller Bearing
Shipping Information
| height | 17.14 |
|---|---|
| length | 41.91 |
| width | 24.46 |
| country of origin | US |
|---|---|
| weight | 26.820000 |
Related Products
| Style | Model | Overall Length | Overall Height | Bore Dia. | Overall Width | Mount Hole Center-to-center Length | Mounting Bolt Size | Lubricant Material | Housing Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | RPB 203-2 | 9.625" | 5 1/8" | 2 3/16" | 3 3/4" | 7 15/16" | 5/8" | Ngli #2 Equivalent | - | 1,571.84 | |
| B | RPB 200-2 | 8.875" | 4 5/8" | 2" | 3 1/2" | 7 3/16" | 5/8" | Ngli #2 Equivalent | - | 1,552.19 | |
| C | RPB 106-2 | 7.25" | 3.813" | 1 3/8" | 3" | 5 15/16" | 1/2" | Ngli #2 Equivalent | - | 1,711.91 | |
| D | RPB 204-C2 CR | 10 3/8" | 5 5/8" | 2 1/4" | 4" | - | - | - | - | 1,329.64 | |
| C | RPB 107-2 | 7.25" | 3.813" | 1 7/16" | 3" | 5 15/16" | 1/2" | Ngli #2 Equivalent | - | 1,317.86 | |
| E | RPB 115-2 | 8.875" | 4 5/8" | 1 15/16" | 3 1/2" | 7 3/16" | 5/8" | Ngli #2 Equivalent | - | 1,526.15 | |
| F | RPB 110-2 | 7 3/4" | 4 3/8" | 1 5/8" | 3.38" | - | - | - | - | 909.03 |
