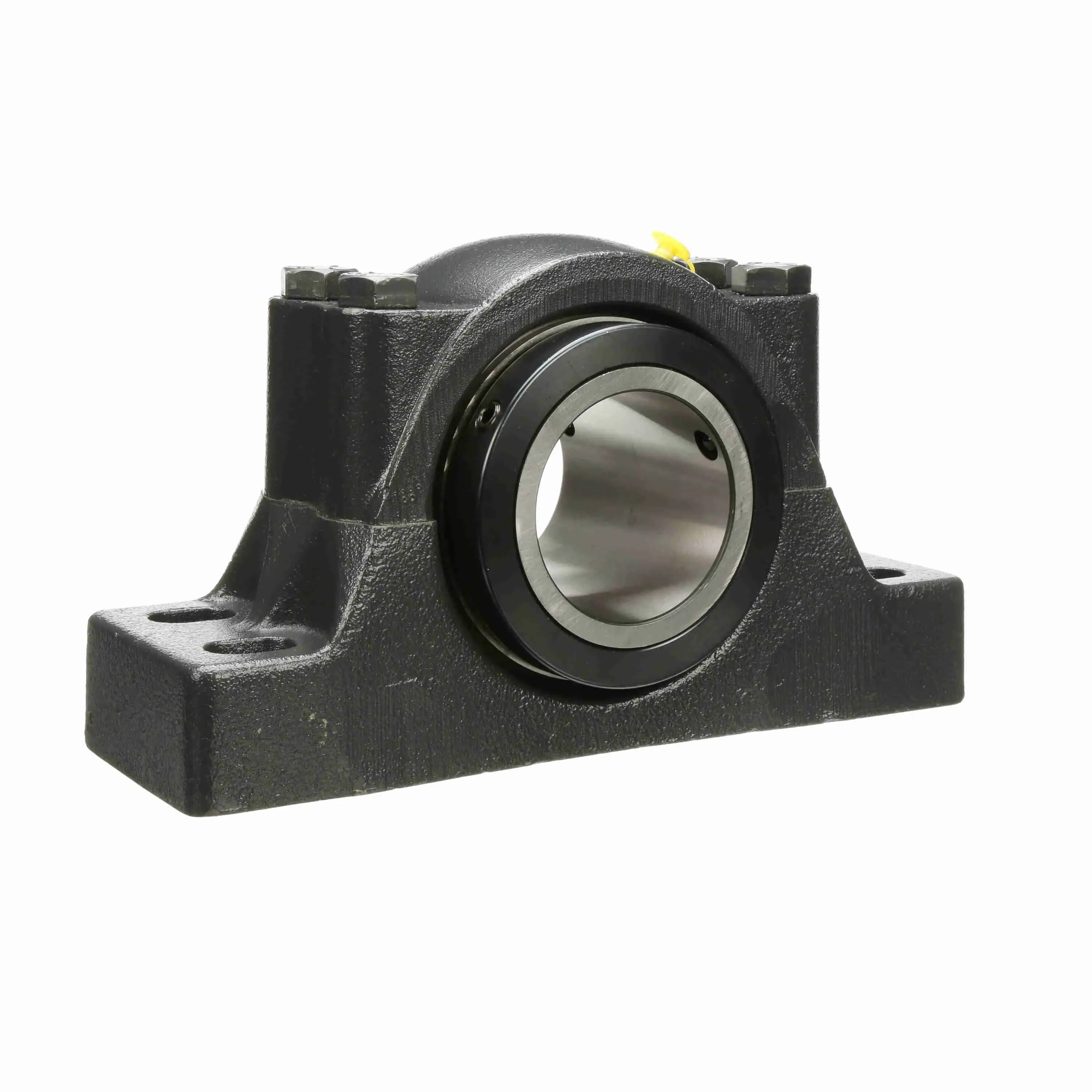

SEALMASTER RPB 307-4 550877 Pillow Block Bearing, 3 7/16 Inch Bore, 4 Holes, 3 3/4 Inch Shaft Ht, 11.5 Inch Mount Lg

Item: BE6XBM
Model: RPB 307-4
In Stock

Get it by Wednesday, Apr 15

£3787.04
5.00% off
£3597.7/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Base Height 2.063"
Base To Center Height 3 3/4"
Base Width 4.5"
Bearing Insert Finish Uncoated
Bearing Insert Material Alloy Steel
Bearing Insert Type Tapered Roller
Bearing Material Grade Grade 52100
Bolt Center Max 11 1/2"
Bolt Center Min 10.563"
Bolt Size 3/4"
Bore Dia. 3 7/16"
Bore Diameter 3 7/16"
Bore Shape Straight
Bore Type Cylindrical
Centerline To Front Face 2 1/2"
Closure Double Sealed
Collar Outer Dia. 5.438"
Collar Outer Diameter 5.438"
Duty Series Standard
Duty/series Standard Series
Dynamic Axial Load Capacity 15320 lbf.
Dynamic Radial Load Capacity 15320 lbf.
End Cap No
Expansion No
Expansion Type Fixed
Features Double-Collar Interlock With 120° Spacing Setscrew Lock, Diamond Faceted Setscrews, Heavy Duty Tapered Roller Bearings With Steel Cage For Radial, Thrust And Combined Loading, Powder Coat Epoxy 2-Bolt Split Cast Iron Housing, Race-Mounted Felt-Lined Flinger Seal
Foot Height 2.063"
Grade Grade 52100
Grease Fitting Thread Size 1/8"
Grease Fitting Thread Type NPT
Height 9.63"
Housing Color Gray
Housing Construction Split Two Piece
Housing Material Cast Iron
Housing Material Finish Black Oxide
Housing Style Pillow Block
Htc 8483.20.8080
I.d. 3 7/16"
Inner Race Heat Treat Method Case Carburized Inner Ring
Inner Race Length 5"
Insert Material Steel
Insert Material Grade 52100
Insert Number RCI-307
Internal Clearance Standard
Length 16 1/2"
Locking Device Double Set Screw
Locking Type Double Collar Mount
Lubricant Material Ngli #2 Equivalent
Lubrication Type Lithium, EP, NLGI
Max. Speed 1500 RPM
Maximum Misalignment Angle 3°
Maximum Speed 1500 RPM
Maximum Temperature 220°F
Minimum Temperature -20°F
Misalignment Type Static Only
Mount Hole Center-to-center Length 11 1/2"
Mount Hole Center-to-center Width 11 1/2"
Mount Type Bolt Through
Mounting Bolt Size 3/4"
Mounting Surface To Shaft Center Height 3 3/4"
Number Of Mount Holes 4
Outer Ring Land Profile Standard
Overall Height 7 3/4"
Overall Length 13.75"
Overall Width 5"
Platform RPB Series
Replaceable Insert Yes
Retainer Material Steel
Retainer Type Steel
Seal Flinger Yes
Seal Material Felt
Self Lubricating Bearing Yes
Series Rpb
Shaft Locking Type Set Screws
Shaft Size 3 7/16"
Split Housing Split Horizontally
Static Radial Load Capacity 4710 lbf.
Width 6 3/4"
no. links/ ft. 0

Product Details

Yes

Shipping Information

height 17.14
length 41.91
width 24.46
country of origin US
weight 26.766000
