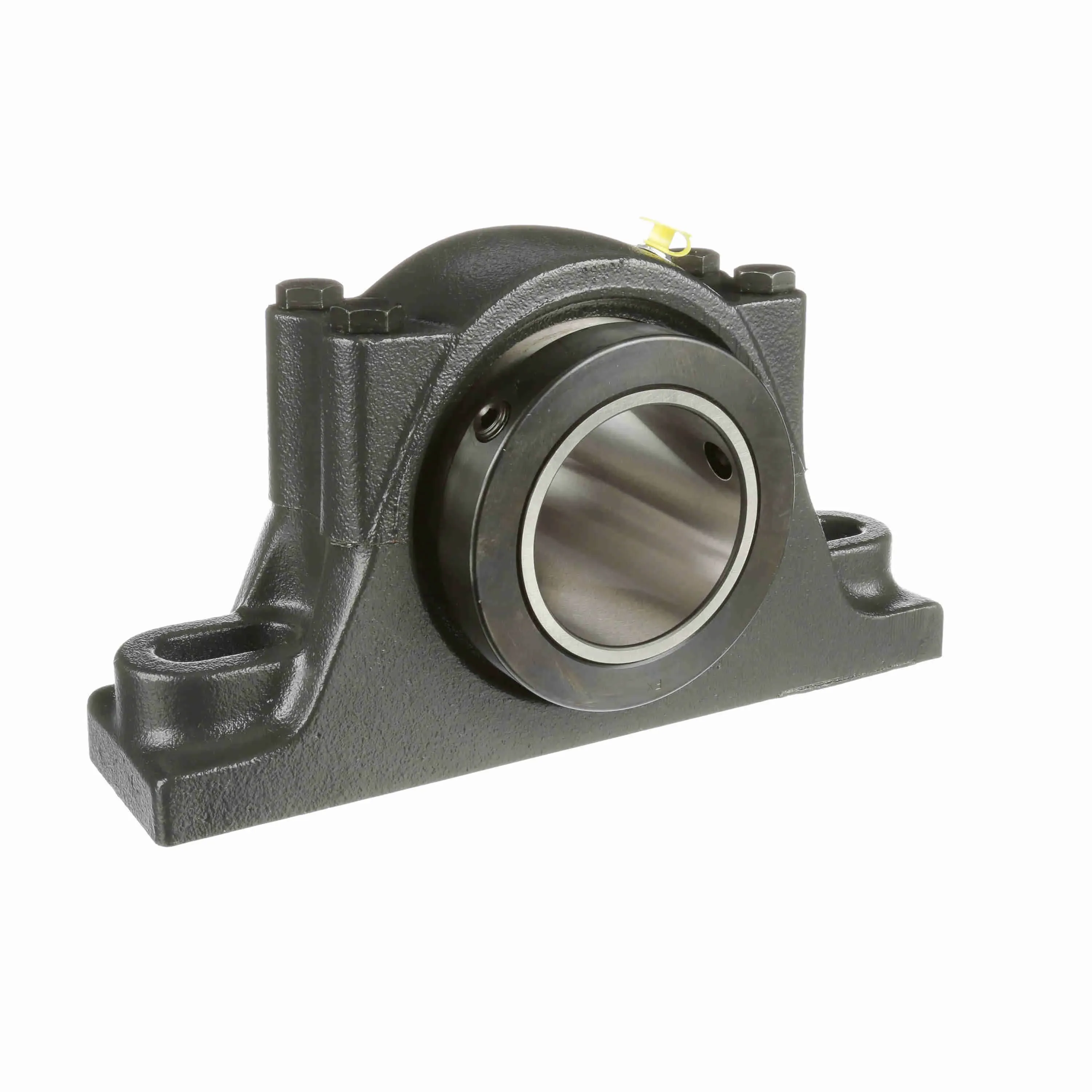

SEALMASTER RPB 300-2 550222 Pillow Block Bearing, 3 Inch Bore, 2 Holes, 3 1/8 Inch Shaft Ht, 9.69 Inch Mount Length
Item: BD7MZX
Model: RPB 300-2
In Stock
Get it by Wednesday, Apr 15
5.00% off
£2756.9/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Base Height | 1.75" |
|---|---|
| Base To Center Height | 3 1/8" |
| Base Width | 3" |
| Bearing Insert Finish | Uncoated |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Tapered Roller |
| Bearing Material Grade | Grade 52100 |
| Bolt Center Max | 9.688" |
| Bolt Center Min | 8.063" |
| Bolt Size | 3/4" |
| Bore Dia. | 3" |
| Bore Diameter | 3" |
| Bore Shape | Straight |
| Bore Type | Cylindrical |
| Centerline To Front Face | 2 1/4" |
| Closure | Double Sealed |
| Collar Outer Dia. | 4.719" |
| Collar Outer Diameter | 4.719" |
| Duty Series | Standard |
| Duty/series | Standard Series |
| Dynamic Axial Load Capacity | 9630 lbf. |
| Dynamic Radial Load Capacity | 9630 lbf. |
| End Cap | No |
| Expansion | No |
| Expansion Type | Fixed |
| Features | Double-Collar Interlock With 120° Spacing Setscrew Lock, Diamond Faceted Setscrews, Heavy Duty Tapered Roller Bearings With Steel Cage For Radial, Thrust And Combined Loading, Powder Coat Epoxy 2-Bolt Split Cast Iron Housing, Race-Mounted Felt-Lined Flinger Seal |
| Foot Height | 1 3/4" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 4.63" |
| Housing Color | Gray |
| Housing Construction | Split Two Piece |
| Housing Material | Cast Iron |
| Housing Material Finish | Black Oxide |
| Housing Style | Pillow Block |
| Htc | 8483.20.8080 |
| I.d. | 3" |
| Inner Race Heat Treat Method | Case Carburized Inner Ring |
| Inner Race Length | 4 1/2" |
|---|---|
| Insert Material | Steel |
| Insert Material Grade | 52100 |
| Insert Number | RCI-300 |
| Internal Clearance | Standard |
| Length | 12.13" |
| Locking Device | Double Set Screw |
| Locking Type | Double Collar Mount |
| Lubricant Material | Ngli #2 Equivalent |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Speed | 1750 RPM |
| Maximum Misalignment Angle | 3° |
| Maximum Speed | 1750 RPM |
| Maximum Temperature | 220°F |
| Minimum Temperature | -20°F |
| Misalignment Type | Static Only |
| Mount Hole Center-to-center Length | 9 11/16" |
| Mount Type | Bolt Through |
| Mounting Bolt Size | 3/4" |
| Mounting Surface To Shaft Center Height | 3 1/8" |
| Number Of Mount Holes | 2 |
| Outer Ring Land Profile | Standard |
| Overall Height | 6 3/8" |
| Overall Length | 11.75" |
| Overall Width | 4 1/2" |
| Platform | RPB Series |
| Replaceable Insert | Yes |
| Retainer Material | Steel |
| Retainer Type | Steel |
| Seal Flinger | Yes |
| Seal Material | Felt |
| Self Lubricating Bearing | Yes |
| Series | Rpb |
| Shaft Locking Type | Set Screws |
| Shaft Size | 3" |
| Split Housing | Split Horizontally |
| Static Radial Load Capacity | 4260 lbf. |
| Width | 6 3/4" |
| no. links/ ft. | 0 |
Product Details
Yes
Shipping Information
| height | 17.14 |
|---|---|
| length | 30.81 |
| width | 11.76 |
| country of origin | US |
|---|---|
| weight | 12.897000 |
