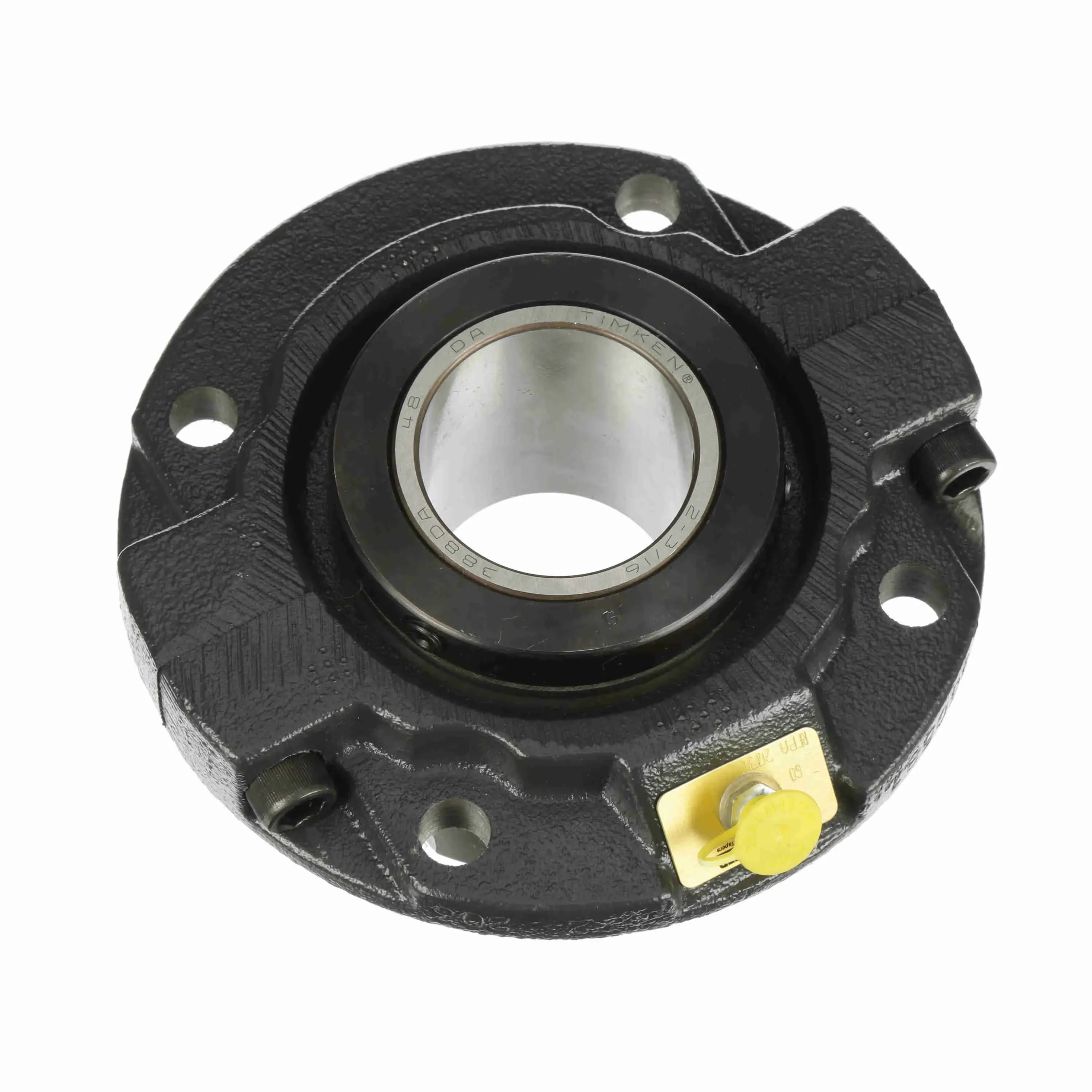

SEALMASTER RFPA 215C 552471 Flange Roller Bearing, 4 Bolt, 2.9375 Inch Dia, Setscrew Locking, Contact Seal
Item: BE9YDK
Model: RFPA 215C
In Stock
Get it by Thursday, Apr 16
£3608.08/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | Yes |
|---|---|
| Bearing Insert Finish | Uncoated |
| Bolt Center Dia. | 7 1/2" |
| Bolt Size | 5/8" |
| Bore Dia. | 2 15/16" |
| Bore Shape | Straight |
| Centerline To Front Face | 2 1/8" |
| Collar Outer Dia. | 4 3/4" |
| Collar Outer Diameter | 4 3/4" |
| Duty Series | Standard |
| Duty/series | Standard Series |
| End Cap | No |
| Expansion | Non Expansion Bearing Fixed |
| Fixed Vs. Expansion | Fixed |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 8.63" |
| Housing Base | Solid |
| Housing Color | Gray |
| Housing Construction | Split Two Piece |
| Housing Material | Cast Iron |
| Housing Outside Dia. | 8 3/4" |
| Housing Outside Diameter | 8 3/4" |
| Housing Style | Flange Block |
| Htc | 8483.20.4080 |
| I.d. | 2 15/16" |
| Inner Race Heat Treat Method | Case Carburized Inner Ring |
|---|---|
| Inner Race Length | 3.688" |
| Insert Material | Steel |
| Insert Material Grade | 52100 |
| Insert Number | RCIA 215C |
| Internal Clearance | Standard |
| Length | 8.88" |
| Locking Device | Single Set Screw |
| Locking Type | Collar Mount |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Speed | 1750 RPM |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Length | 8 3/4" |
| Overall Width | 2" |
| Pilot Configuration | With Pilot |
| Pilot Diameter | 6 3/8" |
| Platform | RPB Series |
| Replaceable Insert | Yes |
| Retainer Material | Steel |
| Retainer Type | Metal |
| Seal Flinger | No |
| Series | RFPA Series |
| Shaft Size | 2 15/16" |
| Width | 8.88" |
| no. links/ ft. | 0 |
Product Details
Flange Roller Bearing
Shipping Information
| height | 22.56 |
|---|---|
| length | 22.56 |
| width | 21.92 |
| country of origin | US |
|---|---|
| weight | 12.015000 |
Related Products
| Style | Model | Bore Dia. | Housing Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|
| A | RFPA 215 | 2 15/16" | Cast Iron | 1,511.52 | |
| A | RFPA 212 | 2 3/4" | Cast Iron | 3,066.88 | |
| B | RFPA 106 | - | Cast Iron | 2,346.19 | |
| C | RFPA 203 | 2 3/16" | Cast Iron | 880.42 | |
| A | RFPA 103 | 1 3/16" | Cast Iron | 970.23 | |
| D | RFPA 315 | 3 15/16" | Cast Iron | 3,505.65 | |
| E | RFPA 107 | 1 7/16" | Cast Iron | 827.43 |
