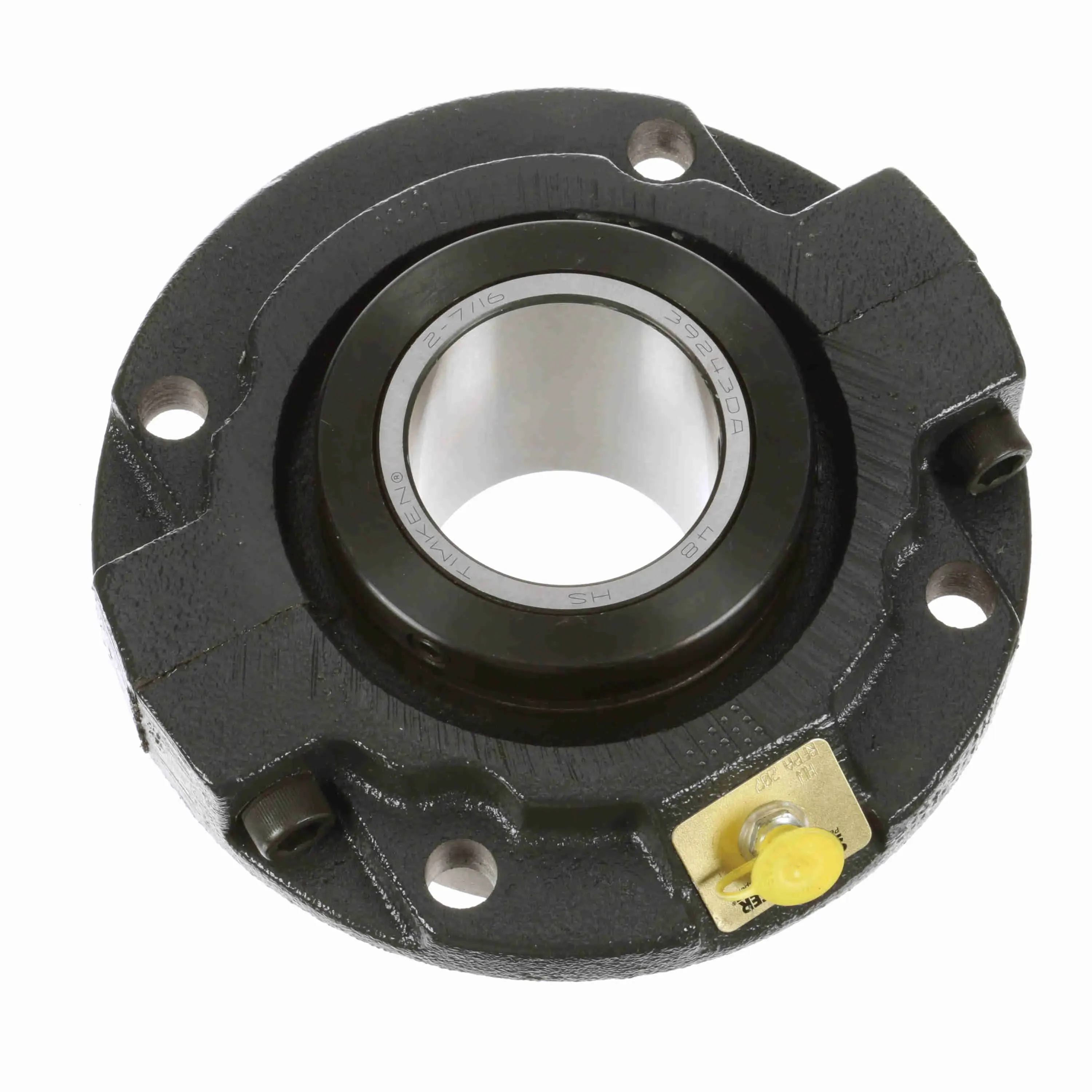

SEALMASTER RFPA 207 551922 Tapered Roller Bearing, 2-7/16 Inch Bore, 4-Bolt Piloted Flange Mount
Item: BE4VLG
Model: RFPA 207
In Stock
Get it by Wednesday, Apr 15
£1408.64/unit
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bearing Insert Finish | Uncoated |
|---|---|
| Bolt Center Dia. | 6 1/2" |
| Bolt Size | 1/2" |
| Bore Dia. | 2 7/16" |
| Bore Shape | Straight |
| Centerline To Front Face | 1 7/8" |
| Collar Outer Dia. | 3.938" |
| Collar Outer Diameter | 3.938" |
| Duty Series | Standard |
| Duty/series | Standard Series |
| End Cap | No |
| Expansion | Non Expansion Bearing Fixed |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 5/8" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 8.63" |
| Housing Base | Solid |
| Housing Color | Gray |
| Housing Construction | Split Two Piece |
| Housing Material | Cast Iron |
| Housing Outside Dia. | 7 5/8" |
| Housing Outside Diameter | 7 5/8" |
| Housing Style | Flange Block |
| Htc | 8483.20.4080 |
| I.d. | 2 7/16" |
|---|---|
| Inner Race Heat Treat Method | Case Carburized Inner Ring |
| Inner Race Length | 3.313" |
| Insert Material | Steel |
| Insert Material Grade | 52100 |
| Insert Number | RCIA-207 |
| Internal Clearance | Standard |
| Length | 8.88" |
| Locking Device | Single Set Screw |
| Locking Type | Collar Mount |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Speed | 2000 RPM |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Length | 7 5/8" |
| Pilot Configuration | With Pilot |
| Pilot Diameter | 5 1/2" |
| Platform | RPB Series |
| Replaceable Insert | Yes |
| Retainer Material | Steel |
| Retainer Type | Metal |
| Seal Flinger | Yes |
| Series | RFPA Series |
| Shaft Size | 2 7/16" |
| Width | 8.88" |
| no. links/ ft. | 0 |
Product Details
Yes
Shipping Information
| height | 22.56 |
|---|---|
| length | 22.56 |
| width | 21.92 |
| country of origin | US |
|---|---|
| weight | 8.550000 |
