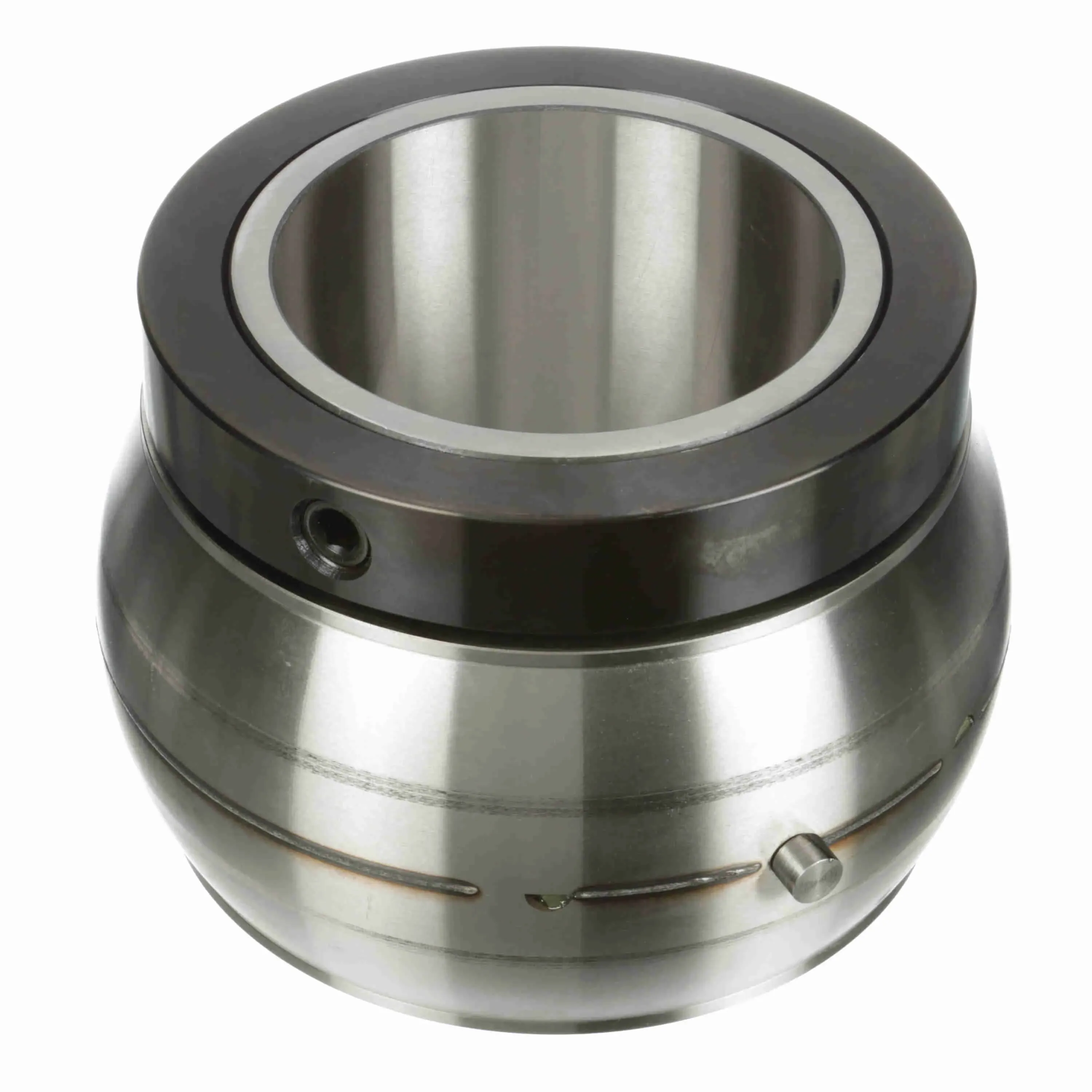

SEALMASTER RCIA 500C 556667 Roller Insert Bearing, Taper Roller, 5.00 Inch Bore Diameter
Item: BF4MUF
Model: RCIA 500C
In Stock
Get it by Wednesday, Apr 15
£6689.02/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bearing Insert Finish | Uncoated |
|---|---|
| Bore Dia. | 5" |
| Bore Shape | Straight |
| Collar Outer Dia. | 3 5/8" |
| Collar Outer Diameter | 3 5/8" |
| Duty Series | Standard |
| Duty/series | Standard Series |
| End Cap | No |
| Fixed Vs. Expansion | No |
| Grade | Grade 52100 |
| Height | 8.13" |
| Housing Type | Insert Only |
| Htc | 8482.20.0064 |
| I.d. | 5" |
| Inner Race Heat Treat Method | Case Carburized Inner Ring |
| Inner Race Profile | Wide Inner Ring |
| Insert Material | Steel |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
|---|---|
| Length | 12.63" |
| Locking Type | Collar Mount |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Operating Temperature | 220°F |
| Max. Speed | 1000 RPM |
| Misalignment Type | Static Only |
| Outer Race Od | 8.564" |
| Outer Race Profile | Spherical |
| Outer Race Width | 4 1/2" |
| Outer Ring Land Profile | Standard |
| Overall Width | 6.21" |
| Platform | RPB Series |
| Retainer Material | Steel |
| Rolling Element | Tapered Roller |
| Seal Type | Single Lip Contact Seal |
| Type Of Seal | Single Lip Contact Seal |
| Width | 12.63" |
Product Details
Yes
Shipping Information
| height | 32.08 |
|---|---|
| length | 32.08 |
| width | 20.65 |
| country of origin | US |
|---|---|
| weight | 19.980000 |
Related Products
| Style | Model | Bore Dia. | Outer Ring Width | Seal Type | Max. Speed | Overall Width | Dynamic Radial Load Capacity | Locking Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| A | RCIA 107C | - | - | Contact Seal | - | - | - | - | 1,687.90 | |
| B | RCIA 208C | 2 1/2" | - | Single Lip Contact Seal | 2000 RPM | 3.31" | - | Collar Mount | 934.76 | |
| C | RCIA 400 | - | - | Felt Seal | - | - | - | - | 1,774.71 | |
| D | RCIA 104C | - | - | Contact Seal | - | - | - | - | 362.57 | |
| E | RCIA 106 | - | - | Felt Seal | - | - | - | - | 661.15 | |
| B | RCIA 415C | 4 15/16" | - | Felt Labyrinth Seal | 1000 RPM | 6.21" | - | Collar Mount | 6,366.92 | |
| B | RCIA 107 | 1 7/16" | - | Felt Seal | 3500 RPM | 2.53" | - | Collar Mount | 622.37 |
