SEALMASTER

See our 858 reviews on trustpilot

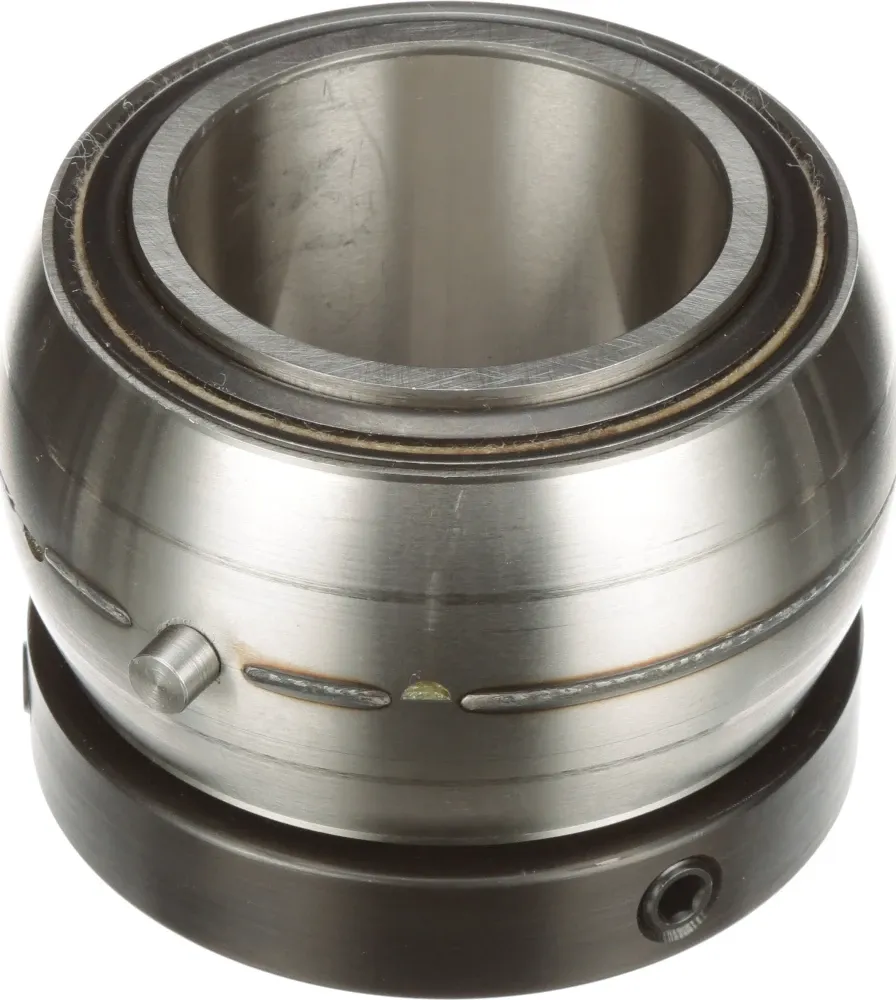

SEALMASTER RCIA 204 Cartridge Insert Bearing, 2.25 Inch Dia, Setscrew Locking, Cast Steel, Standard Felt Seal

Item: BE8KUZ
Model: RCIA 204
26 In Stock

Ships within 2 days via

£3,282.92/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ability To Relubricate Yes
Bearing Insert Finish Uncoated
Bore Shape Straight
Collar Outer Dia. 2"
Duty Series Standard
End Cap No
Fixed Vs. Expansion Fixed
Grade Grade 52100
Height 4.57"
Housing Type Insert Only
I.d. 2 1/4"
Inner Race Profile Wide Inner Ring
Inner-race Heat-treat Method Case Carburized Inner Ring
Insert Material Steel
Internal Clearance Standard
Length 5.19"
Locking Type Collar Mount
Lubricant Lithium, Ep, NLGI#2
Max. Operating Temperature 220°F
Max. Speed 2000 RPM
Measure Units Imperial
Misalignment Capability ±3° Misalignment Static Only
Misalignment Type Static Only
Outer Race Outside Dia. 4 2/5"
Outer Race Profile Spherical
Outer Race Width 2.38"
Outer Ring Land Profile Standard
Overall Width 3.31"
Platform RPB Series
Retainer Material Steel
Rolling Element Tapered Roller
Seal Type Felt Labyrinth Seal
Width 5.19"

Shipping Information

Height 11.61
Length 13.18
Width 8.41
Weight 3.780000
