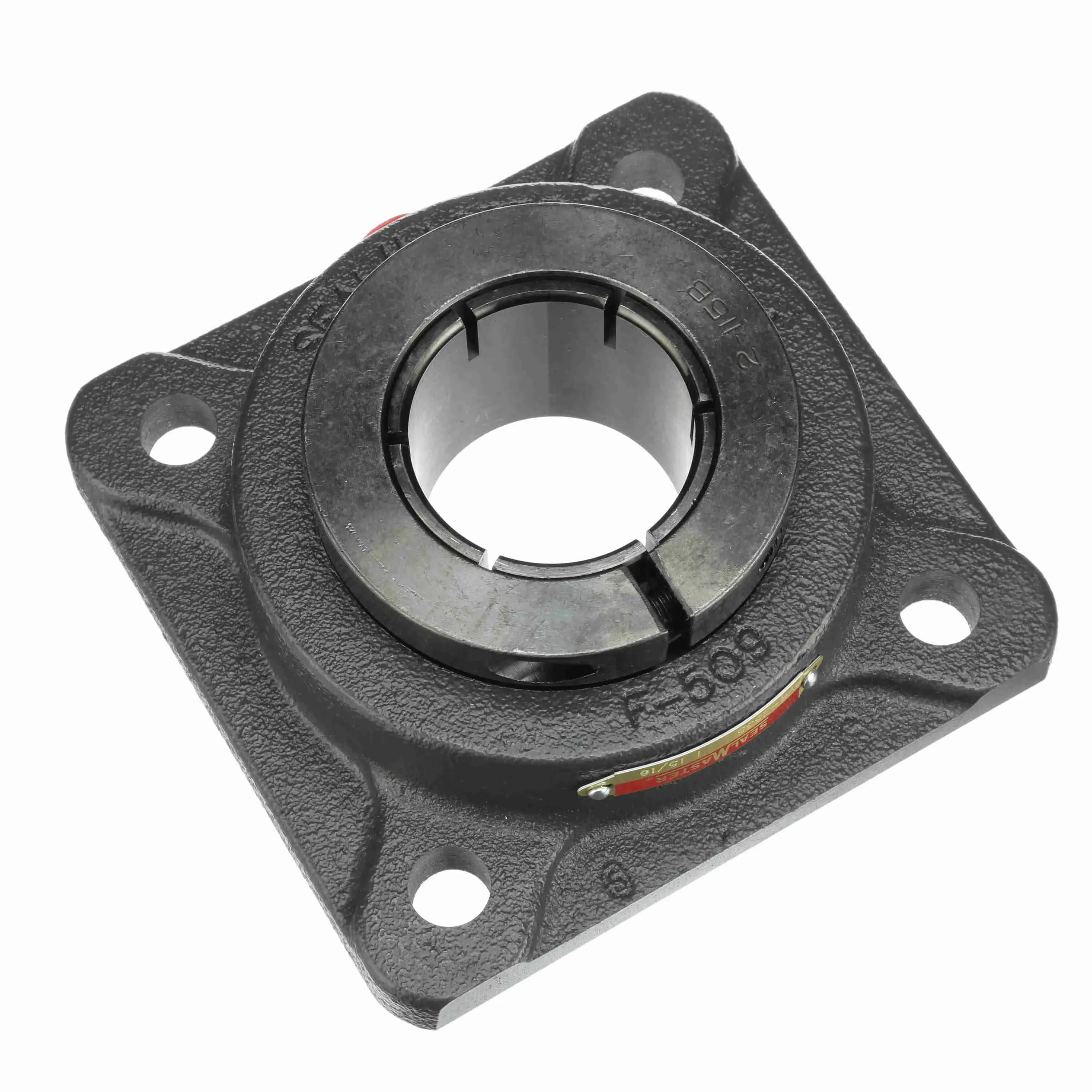

SEALMASTER PVR-2535 709463 Flange-Mount Ball Bearing Unit, 1-15/16 Inch Bore
Item: BE4QXY
Model: PVR-2535
In Stock
Get it by Thursday, Apr 16
£492.05/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bearing Insert Finish | Black Oxide |
|---|---|
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 9/16" |
| Bolt Spacing | 4" |
| Bore Dia. | 1 15/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 7889 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 14/25" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Backside Inner Diameter | 4" |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Four Bolt |
| Htc | 8483.20.4040 |
|---|---|
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.469" |
| Insert | SK-1894 |
| Length Through Bore | 2.027" |
| Locking Collar Outside Diameter | 3.47" |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Operating Temperature | 400°F |
| Max. Speed | 325 RPM |
| Misalignment Capability | -3° to +3° |
| Misalignment Type | Static Only |
| Options | High Temperature |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.156" |
| Overall Length | 5.63" |
| Overall Width | 5.63" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Shaft Locking Type | Concentric |
| Size Code | 2-115 |
| Static Load Rating | 5216 lbs. |
Product Details
Shipping Information
| Height | 16.51 |
|---|---|
| Length | 17.14 |
| Width | 6.2 |
| Country Of Origin | US |
|---|---|
| Weight | 3.051000 |
Related Products
| Style | Model | Shaft Locking Type | Bore Dia. | Dynamic Load Capacity | Seal Type | Overall Width | Overall Length | Overall Height | Max. Speed | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | PVR-2533 | Concentric | 2 3/16" | 9752 lbs. | Felt Labyrinth Seal | 5 3/4" | 5 3/4" | - | - | 1,033.75 | |
| B | PVR-1608 | - | - | - | - | - | - | - | - | 562.30 | |
| B | PVR-1507 | - | - | - | - | - | - | - | - | 578.47 | |
| C | PVR-2431 | Set Screw | 2 3/16" | 9752 lbs. | Single Lip Contact Seal | 2.19" | 5.63" | 5 11/25" | 3250 RPM | 928.20 | |
| D | PVR-3243 | - | - | - | - | - | - | - | - | 4,180.74 | |
| E | PVR-1501 | Set Screw | 1 3/4" | 7901 lbs. | Single Lip Contact Seal | 5.38" | 5.38" | 2.047" | 3800 RPM | 421.97 | |
| B | PVR-1113 | - | - | - | - | - | - | - | - | 1,056.30 |
