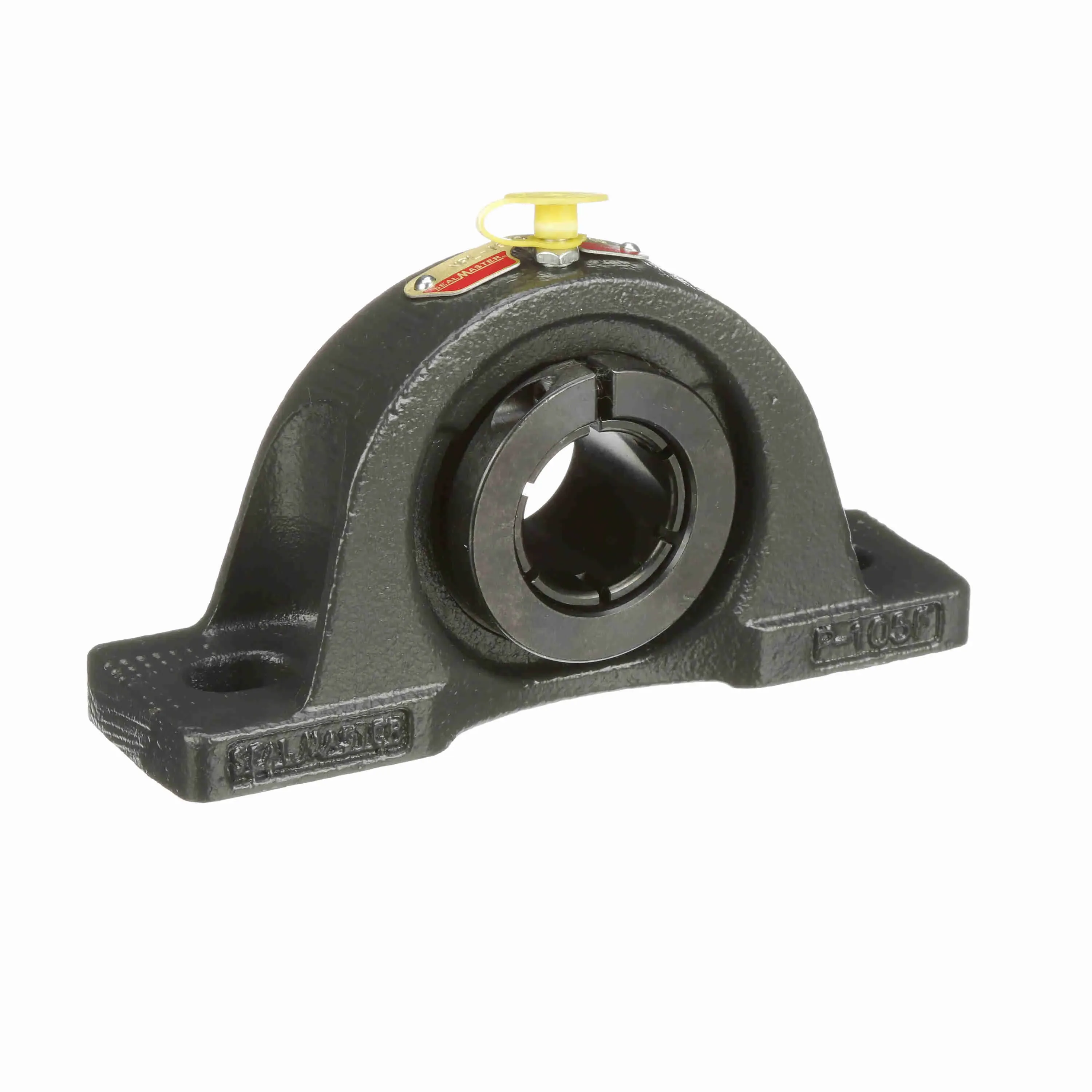

SEALMASTER NPL-19TC 705876 Pillow Block Bearing, 2 Bolt, 1.18 Inch Bore, Concentric Collar Mount
Item: BF6RUC
Model: NPL-19TC
In Stock
Get it by Wednesday, Apr 15
£186.02/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | Yes |
|---|---|
| Base Length | 6 1/2" |
| Base To Center Height | 1 9/16" |
| Base Width | 1 22/25" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 1/2" |
| Bolt Spacing | 4 3/4" |
| Bolt Spacing Max | 5.06" |
| Bolt Spacing Min | 4 11/25" |
| Bore Dia. | 1 3/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 0.98" |
| Dynamic Load Capacity | 4381 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 11/25" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
|---|---|
| Housing Type | Pillow Block, Two Bolt, Low Base |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 1.594" |
| Insert | 2-13TC |
| Length Through Bore | 1 14/25" |
| Locking Collar Outside Diameter | 2.23" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 5450 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 3 1/4" |
| Overall Length | 6 1/2" |
| Overall Width | 1 22/25" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal |
| Shaft Locking Type | Concentric |
| Size Code | 2-13 |
| Static Load Rating | 2567 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0385 cPS |
Product Details
Pillow Block Bearing
Shipping Information
| height | 5.23 |
|---|---|
| length | 11.13 |
| width | 17.3 |
| country of origin | US |
|---|---|
| weight | 1.642500 |
