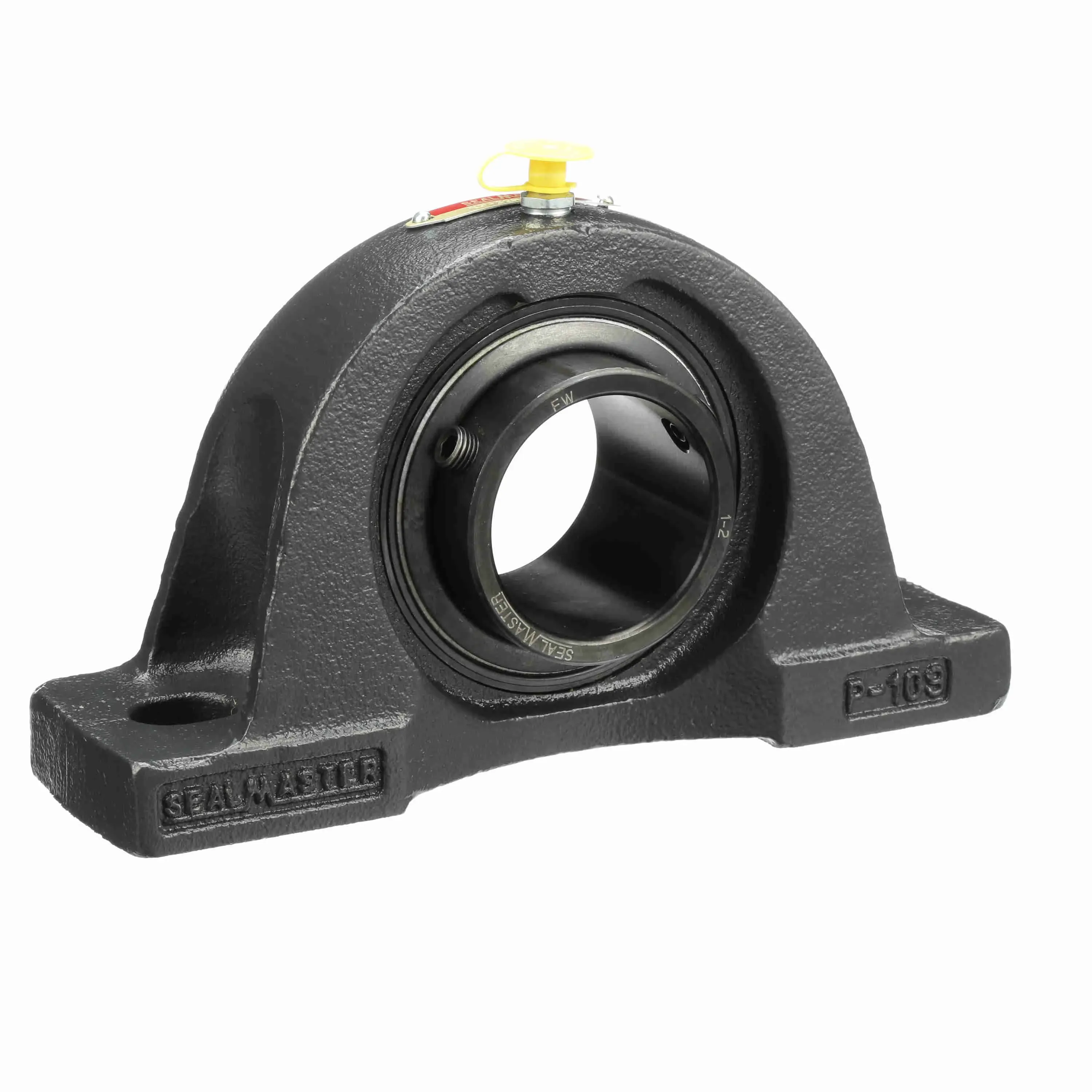

SEALMASTER NP-32R 700197 Pillow Block Bearing, 2 Inch Bore, Cast Iron, Set Screws, 2 1/4 Inch Shaft Ht

Item: BF4RJQ
Model: NP-32R
23 In Stock

Ships within 2 days via

£1216.19
5.00% off
£1155.38/unit
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Base Height 0.75"
Base Length 8.13"
Base To Center Height 2 1/4"
Base Width 2.375"
Bearing Insert Finish Black Oxide
Bearing Insert Material Alloy Steel
Bearing Insert Material Grade 52100
Bearing Insert Type Radial Ball
Bearing Material Grade Grade 52100
Bearing Type Standard Duty
Bolt Size 5/8"
Bolt Spacing Max 7"
Bolt Spacing Min 6 1/2"
Bore Dia. 2"
Bore Diameter 2"
Bore Shape Straight
Cage Type Land Riding Retainer
Centerline To Outermost Bearing Face 1.344"
Closure Double Sealed
Duty Series Standard
Dynamic Load Capacity 7889 lbs.
Dynamic Radial Load Capacity 7889 lbf.
End Cap No
Features Land Riding Retainer Design Provides Superior Pocket Clearance That Allows For 360° Grease Circulation Around The Rolling Elements, Powder Coated Epoxy Cast Iron Housing With Extended Inner Ring Bearings, Sealmaster Exclusive Lock Pin And Dimple For Direct Lubrication And Anti-Rotation, Zone Hardened Inner Ring With 120° Spacing Setscrew Locking With Diamond Faceted Setscrews
Fixed Vs. Expansion Fixed
Grade Grade 52100
Grease Fitting Thread Size 1/8"
Grease Fitting Thread Type NPT
Height 2.38"
Housing Base Solid
Housing Coating Powder Coated
Housing Color Black
Housing Construction One Piece
Housing Material Cast Iron
Housing Style Pillow Block
Housing Type Pillow Block, Two Bolt
Htc 8483.20.8040
Inner Race Heat Treat Method Zone Hardened
Inner Ring Outside Dia. 2.469"
Inner Ring Outside Diameter 2.469"
Inner-race Heat-treat Method Zone Hardened
Insert 1-2
Length 5.19"
Length Through Bore 2.031"
Locking Device Setscrew
Lubricant Lithium Complex NLGI 2 Grease
Lubricant Material Ngli #2 Equivalent
Lubrication Type Lithium Complex NLGI 2 Grease
Max. Operating Temperature 220°F
Max. Speed 3550 RPM
Maximum Misalignment Angle 2°
Maximum Speed 3550 RPM
Maximum Temperature 220°F
Minimum Temperature -20°F
Misalignment Type Static Only
Mount Hole Center-to-center Length 6 1/2"
Mount Type Bolt Through
Mounting Bolt Size 5/8"
Mounting Surface To Shaft Center Height 2 1/4"
Number Of Mount Holes 2
Outer Ring Land Profile Standard
Overall Length 8.125"
Overall Width 2 3/8"
Product Line Sealmaster Gold Standard
Radial Clearance Standard
Seal Material Felt
Self Lubricating Bearing Yes
Shaft Locking Type Set Screws
Shaft Size 2"
Size Code 2-115
Static Load Rating 5216 lbs.
Static Radial Load Capacity 5216 lbf.
Width 9"

Product Details

Yes

Shipping Information

height 22.86
length 13.18
width 6.05
country of origin MX
weight 3.627000
