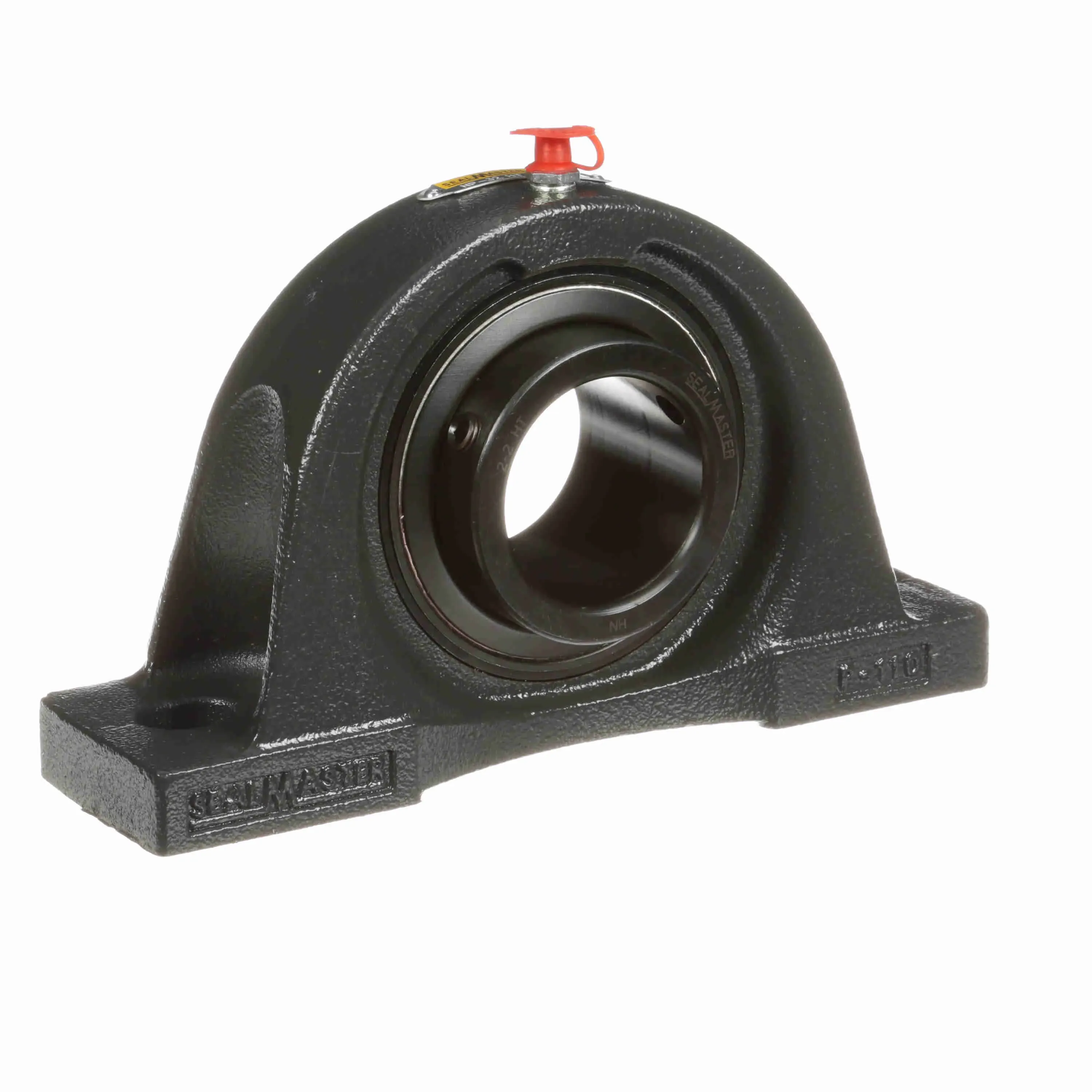

SEALMASTER NP-32 HT 724084 Pillow Block Bearing, 2 Bolt, 2 Inch Dia, Setscrew Locking, Cast Iron Housing, Nomex Seal
Item: BD7YQL
Model: NP-32 HT
In Stock
Get it by Thursday, Apr 16
£505.37/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | Yes |
|---|---|
| Base Length | 8.63" |
| Base To Center Height | 2 1/2" |
| Base Width | 2.38" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 5/8" |
| Bolt Spacing Max | 7" |
| Bolt Spacing Min | 6 1/2" |
| Bore Dia. | 2" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.313" |
| Dynamic Load Capacity | 9752 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 3/4" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
|---|---|
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.719" |
| Insert | 2-2 HT |
| Length Through Bore | 2 3/16" |
| Lubrication Type | Synthetic Nlgi 2 High Temperature Grease |
| Max. Operating Temperature | 400°F |
| Max. Speed | 1400 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | High Temperature |
| Outer Ring Land Profile | Standard |
| Overall Height | 5" |
| Overall Length | 8.63" |
| Overall Width | 2.38" |
| Radial Clearance | Increased |
| Rolling Element | Ball Bearing |
| Seal Type | High Temp Labyrinth |
| Shaft Locking Type | Set Screw |
| Size Code | 2-23 |
| Static Load Rating | 6601 lbs. |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0987 cPS |
| Vibration Frequency Outer Ring Defect | 0.068 cPS |
| Vibration Frequency Roller Spin | 0.0437 cPS |
Product Details
Shipping Information
| Height | 15.09 |
|---|---|
| Length | 22.56 |
| Width | 6.68 |
| Country Of Origin | US |
|---|---|
| Weight | 4.644000 |
Related Products
| Style | Model | Bearing Insert Material | Overall Width | Bearing Insert Type | Shaft Locking Type | Bore Dia. | Overall Length | Housing Type | Overall Height | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | NP-46 | Alloy Steel | 3 1/2" | Radial Ball | Set Screws | 2 7/8" | 13" | Pillow Block, Two Bolt | 7" | 1,533.40 | |
| B | NP-20 | Steel | 1 22/25" | Standard Duty | Set Screw | 1 1/4" | 6 14/25" | Pillow Block, Two Bolt | 3 3/4" | 387.93 | |
| C | NP-31 CXU | Steel | 2.38" | Standard Duty | Set Screw | 1 15/16" | 8.13" | Pillow Block, Two Bolt | 4 14/25" | 210.95 | |
| D | NP-23 CXU | Steel | 1 22/25" | Standard Duty | Set Screw | 1 7/16" | 6 14/25" | Pillow Block, Two Bolt | 3 3/4" | 151.73 | |
| E | NP-32RC | Steel | 2.38" | Standard Duty | Set Screw | 2" | 8.13" | Pillow Block, Two Bolt | 5" | 339.12 | |
| C | NP-32 CXU | - | - | - | - | - | - | - | - | 1,023.08 | |
| F | NP-35 CXU | Steel | 2.38" | Standard Duty | Set Screw | 2 3/16" | 8.63" | Pillow Block, Two Bolt | 5" | 248.51 |
