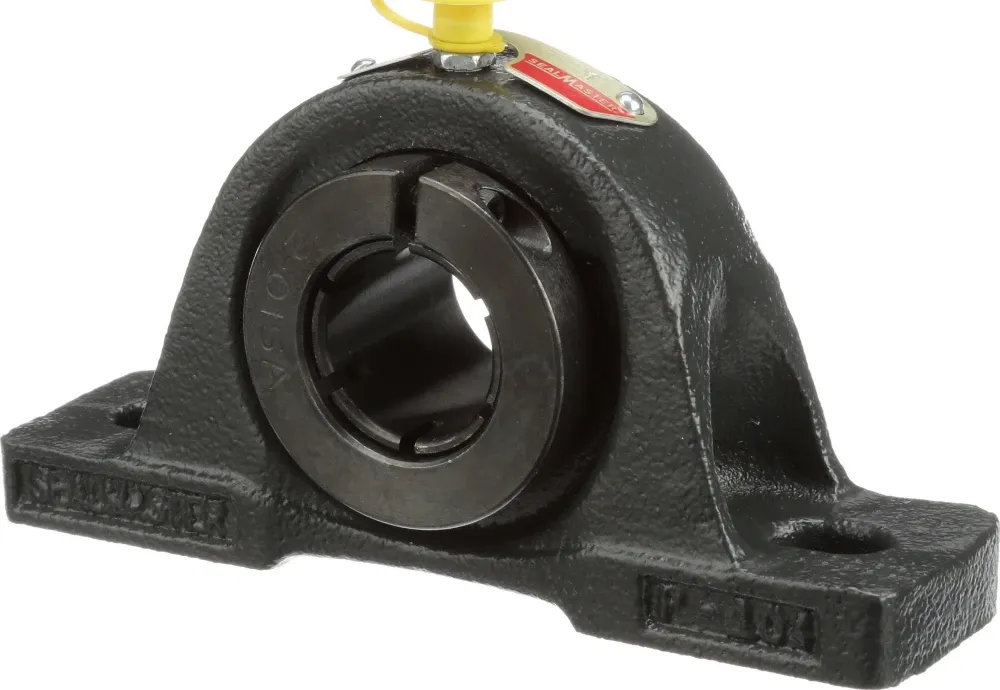

SEALMASTER NP-23T XLO Pillow Block Bearing, 2 Bolt, 1.43 Inch Dia, Skwezloc Locking, Oil Soaked Felt Seal

Item: BE6UHM
Model: NP-23T XLO
28 In Stock

Ships within 2 days via

£319.49/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ability To Relubricate Yes
Base Length 6.56"
Base To Center Height 1 7/8"
Base Width 1 22/25"
Bearing Insert Finish Black Oxide
Bearing Insert Material Steel
Bearing Type Standard Duty
Bolt Size 1/2"
Bolt Spacing 5"
Bolt Spacing Max 5.31"
Bolt Spacing Min 4.69"
Bore Dia. 1 7/16"
Bore Shape Straight
Cage Material PPS
Cage Type Land Riding Retainer
Centerline To Outermost Bearing Face 1 3/25"
Duty Series Standard
Dynamic Load Capacity 5782 lbs.
End Cap No
Fixed Vs. Expansion Fixed
Foot Height 0.63"
Grade Grade 52100
Grease Fitting Thread Size 1/4"-28
Grease Type Goldplex-HP
Height 6.81"
Housing Base Solid
Housing Color Black
Housing Construction One Piece
Housing Material Cast Iron
Housing Material Finish Powder Coated
Housing Type Pillow Block
Inner Ring Outside Dia. 1.851"
Inner-race Heat-treat Method Zone Hardened
Insert 2-17T XLO
Length 4.38"
Length Through Bore 1.81"
Locking Collar Outside Dia. 2.62"
Locking Device Skwezloc Concentric
Locking Type Concentric
Lubricant Oil Coated Only No Factory Grease Fill
Max. Operating Temperature 250°F
Max. Speed 1850 RPM
Misalignment Capability ±2° Misalignment Static Only
Misalignment Type Static Only
Outer Ring Land Profile Standard
Overall Height 3 3/4"
Overall Length 6.56"
Overall Width 1 22/25"
Product Line Sealmaster Gold Standard
Radial Clearance Standard
Retainer Type Metal Land Riding
Rolling Element Ball
Seal Flinger Yes
Seal Type Standard Felt Seal
Shaft Size 1 7/16"
Size Code 2-17
Static Radial Load Capacity 3493 lbs.
Vibration Frequency Fundamental Train 0.007 Hz
Vibration Frequency Inner Ring Defect 0.091 Hz
Vibration Frequency Outer Ring Defect 0.06 Hz
Vibration Frequency Roller Spin 0.039 Hz
Width 2.06"
no. links/ ft. 0

Product Details

Shipping Information

Height 9.52
Length 16.67
Width 4.44
Weight 2.160000
