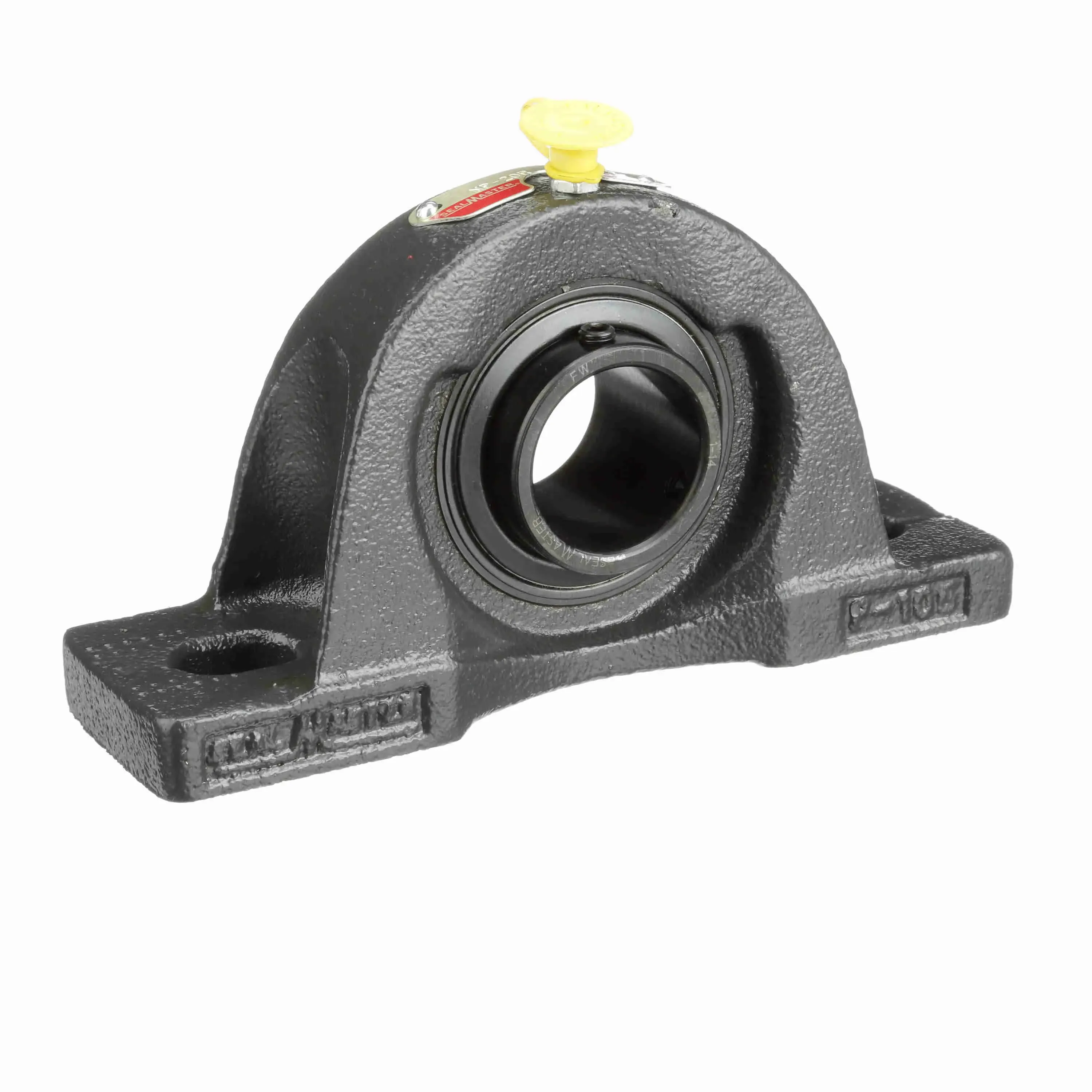

SEALMASTER NP-20R 700184 Pillow Block Bearing, 1 1/4 Inch Bore, Cast Iron, Set Screws, 1 11/16 Inch Shaft Ht

Item: BD6RZZ
Model: NP-20R
27 In Stock

Ships within 2 days via

£615.12
5.00% off
£584.36/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Base Height 0.563"
Base Length 6 1/2"
Base To Center Height 1 11/16"
Base Width 1 22/25"
Bearing Insert Finish Black Oxide
Bearing Insert Material Steel
Bearing Insert Material Grade 52100
Bearing Insert Type Standard Duty
Bearing Material Grade Grade 52100
Bolt Size 1/2"
Bolt Spacing 4 3/4"
Bolt Spacing Max 5.06"
Bolt Spacing Min 4 11/25"
Bore Dia. 1 1/4"
Bore Diameter 1 1/4"
Bore Shape Straight
Cage Material Polyphenylene Sulfide
Cage Type Land Riding Retainer
Centerline To Outermost Bearing Face 7/8"
Closure Double Sealed
Dynamic Load Capacity 4381 lbs.
Dynamic Radial Load Capacity 4381 lbf.
End Cap No
Features Land Riding Retainer Design Provides Superior Pocket Clearance That Allows For 360° Grease Circulation Around The Rolling Elements, Powder Coated Epoxy Cast Iron Housing With Extended Inner Ring Bearings, Sealmaster Exclusive Lock Pin And Dimple For Direct Lubrication And Anti-Rotation, Zone Hardened Inner Ring With 120° Spacing Setscrew Locking With Diamond Faceted Setscrews
Fixed Vs. Expansion Fixed
Foot Height 14/25"
Grease Fitting Thread Size 1/4"-28
Housing Base Solid
Housing Coating Powder Coated
Housing Color Black
Housing Construction One Piece
Housing Material Cast Iron
Housing Style Pillow Block
Housing Type Pillow Block, Two Bolt
Htc 8483.20.8040
Inner Race Heat Treat Method Zone Hardened
Inner Ring Outside Diameter 1.594"
Insert 1"-14
Length Through Bore 1.497"
Lubricant Material Ngli #2 Equivalent
Lubrication Type Lithium Complex NLGI 2 Grease
Max. Operating Temperature 220°F
Max. Speed 5450 RPM
Maximum Misalignment Angle 2°
Maximum Speed 5450 RPM
Maximum Temperature 220°F
Minimum Temperature -20°F
Misalignment Capability -2° to +2°
Misalignment Type Static Only
Mount Hole Center-to-center Length 5 3/64"
Mount Type Bolt Through
Mounting Bolt Size 1/2"
Mounting Surface To Shaft Center Height 1 11/16"
Number Of Mount Holes 2
Outer Ring Land Profile Standard
Overall Height 3.38"
Overall Length 6 1/2"
Overall Width 1 22/25"
Radial Clearance Standard
Rolling Element Ball Bearing
Seal Material Felt
Seal Type Felt Labyrinth Seal
Self Lubricating Bearing Yes
Shaft Locking Type Set Screw
Size Code 2-13
Static Load Rating 2567 lbs.
Static Radial Load Capacity 2567 lbf.
Vibration Frequency Fundamental Train 0.0066 cPS
Vibration Frequency Inner Ring Defect 0.0905 cPS
Vibration Frequency Outer Ring Defect 0.0595 cPS
Vibration Frequency Roller Spin 0.0385 cPS

Product Details

Shipping Information

Height 11.13
Length 5.23
Width 17.3
Country Of Origin MX
Weight 1.624500
