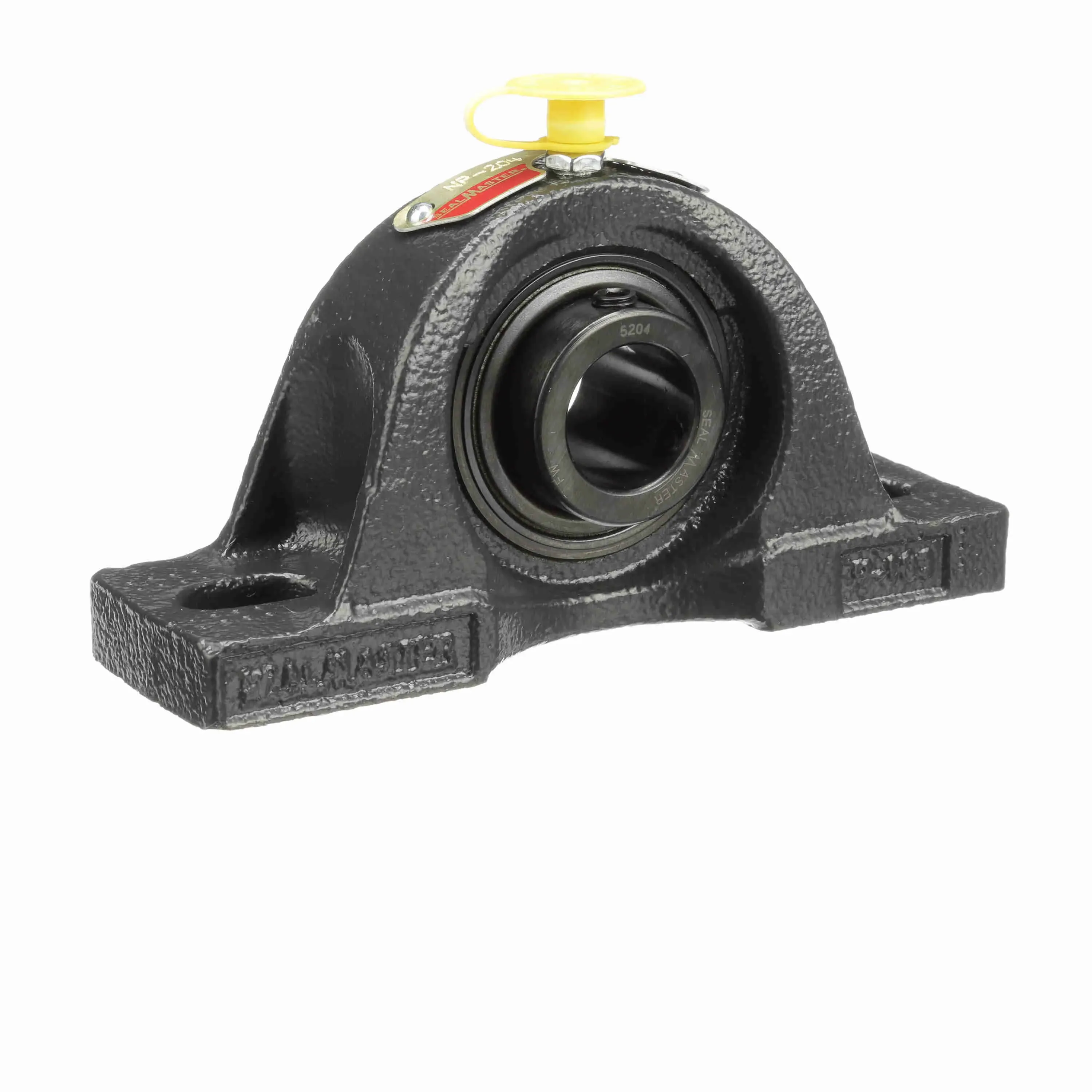

SEALMASTER NP-204 709917 Mounted Cast Iron Two Bolt Pillow Block Ball Bearing
Item: BF4MUB
Model: NP-204
29 In Stock
Ships within 2 days via
£252.64/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Base Length | 5" |
|---|---|
| Base Width | 1 1/2" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bearing Type | Standard Duty |
| Bolt Spacing | 3 3/4" |
| Bolt Spacing Max | 4.13" |
| Bolt Spacing Min | 3.38" |
| Bore Dia. | 20 mm |
| Bore Shape | Straight |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 0.719" |
| Duty Series | Standard |
| Dynamic Load Capacity | 2611 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1/2" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/4"-28 |
| Grease Type | Goldplex-HP |
| Height | 5 1/4" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
|---|---|
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 1.188" |
| Inner Ring Outside Diameter | 1.188" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 5204 |
| Length | 1.69" |
| Length Through Bore | 1.219" |
| Locking Device | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Speed | 7300 RPM |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 2 14/25" |
| Overall Length | 5" |
| Overall Width | 1 1/2" |
| Product Line | Sealmaster Gold Standard |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Seal Flinger | Yes |
| Shaft Locking Type | Set Screw |
| Shaft Size | 20 mm |
| Size Code | 2-012 |
| Static Load Rating | 1444 lbs. |
| Width | 3.19" |
| no. links/ ft. | 0 |
Product Details
Yes
Shipping Information
| height | 8.1 |
|---|---|
| length | 4.29 |
| width | 13.34 |
| country of origin | MX |
|---|---|
| weight | 0.819000 |
Related Products
| Style | Model | Bearing Insert Material | Overall Width | Bearing Insert Type | Shaft Locking Type | Bore Dia. | Overall Length | Housing Type | Overall Height | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | NP-46 | Alloy Steel | 3 1/2" | Radial Ball | Set Screws | 2 7/8" | 13" | Pillow Block, Two Bolt | 7" | 1,533.40 | |
| B | NP-20 | Steel | 1 22/25" | Standard Duty | Set Screw | 1 1/4" | 6 14/25" | Pillow Block, Two Bolt | 3 3/4" | 387.93 | |
| C | NP-31 CXU | Steel | 2.38" | Standard Duty | Set Screw | 1 15/16" | 8.13" | Pillow Block, Two Bolt | 4 14/25" | 210.95 | |
| D | NP-23 CXU | Steel | 1 22/25" | Standard Duty | Set Screw | 1 7/16" | 6 14/25" | Pillow Block, Two Bolt | 3 3/4" | 151.73 | |
| E | NP-32RC | Steel | 2.38" | Standard Duty | Set Screw | 2" | 8.13" | Pillow Block, Two Bolt | 5" | 339.12 | |
| C | NP-32 CXU | - | - | - | - | - | - | - | - | 1,023.08 | |
| F | NP-35 CXU | Steel | 2.38" | Standard Duty | Set Screw | 2 3/16" | 8.63" | Pillow Block, Two Bolt | 5" | 248.51 |
