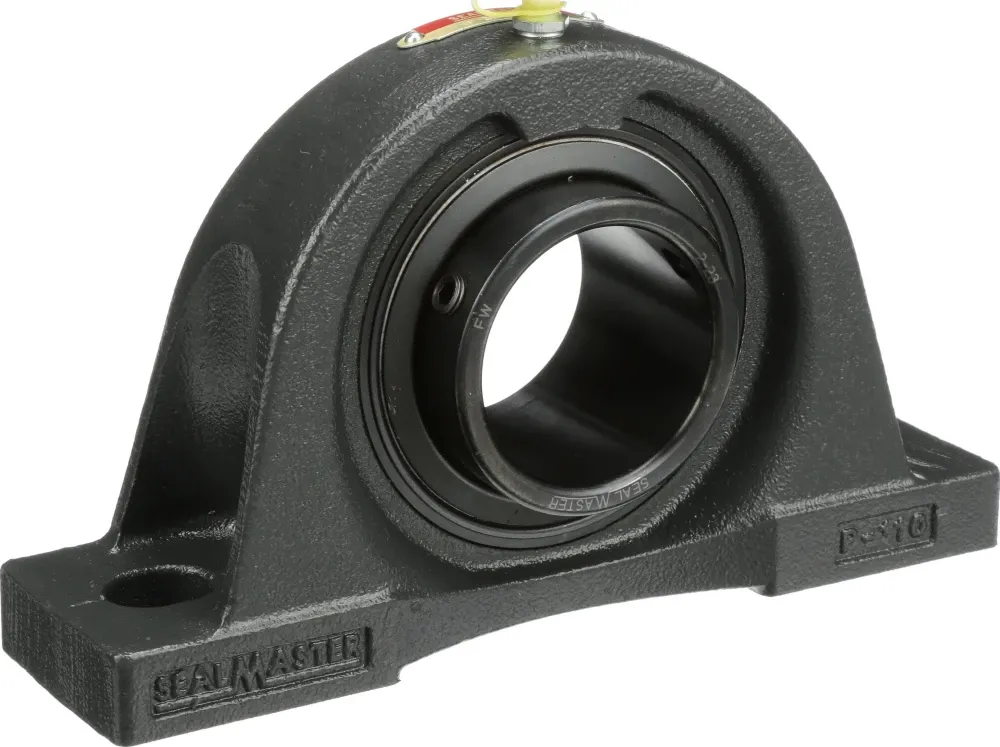

SEALMASTER NP-16 XLO Pillow Block Bearing, 2 Bolt, 1 Inch Dia, Setscrew Locking, Cut Down Oil Soaked Felt Seal
Item: BF6RTZ
Model: NP-16 XLO
In Stock
Get it by Thursday, Apr 16
£177.79/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Base To Bore Centerline | 1.4375" |
|---|---|
| Base Width | 1.5" |
| Bolt Center To Center Length | 3.875" to 4.375" |
| Bolt Size | 0.375" |
| Bore Dia. | 1" |
| Bore Type | Round |
| Coating Finish | Uncoated |
| Duty Type | Standard Duty |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Housing Material | Cast Iron |
|---|---|
| Locking Device | Set Screw |
| Mounting Type | 2 Bolt Base |
| Overall Height | 2.8125" |
| Overall Length | 5.5" |
| Overall Width | 1 3/8" |
| Replacement Bearing | 2-1 XLO |
| Seal Type | Cut Down Oil Soaked Felt Seal |
| Series | NP Series |
Product Details
Pillow Block Bearing
Shipping Information
| height | 7.14 |
|---|---|
| length | 13.97 |
| width | 3.49 |
|---|---|
| weight | 0.990000 |
