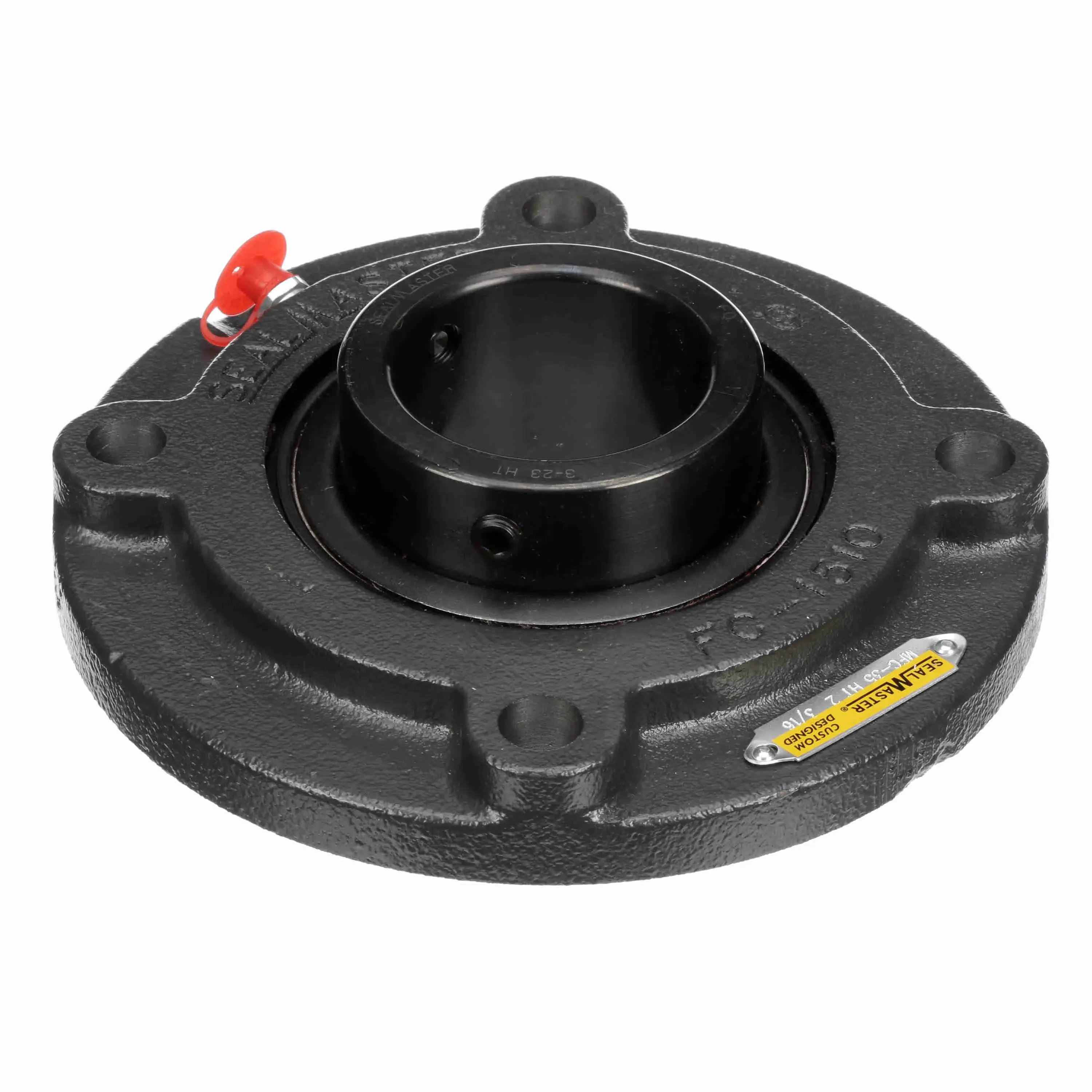

SEALMASTER MFC-35 HT 724056 Flange Cartridge Ball Bearing, Black Oxided, Setscrew Lock, High Temperature, 2.188 Inch
Item: BE4NNU
Model: MFC-35 HT
In Stock
Get it by Friday, Apr 17
£619.2/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | Yes |
|---|---|
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bolt Circle | 6" |
| Bolt Size | 1/2" |
| Bore Dia. | 2 3/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 11789 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1/2" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Outside Diameter | 7 1/8" |
| Housing Style | Flange Block |
| Housing Type | Flange, Piloted |
| Htc | 8483.20.4040 |
|---|---|
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.984" |
| Insert | 3-23 HT |
| Length Through Bore | 2.563" |
| Lubrication Type | Lithium Complex Grease With Synthetic Oil |
| Max. Operating Temperature | 400°F |
| Max. Speed | 1250 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | High Temperature |
| Outer Ring Land Profile | Standard |
| Overall Height | 2 14/25" |
| Overall Length | 7.13" |
| Overall Width | 7.13" |
| Pilot Configuration | Piloted |
| Pilot Depth | 0.844" |
| Pilot Diameter | 5" |
| Radial Clearance | Increased |
| Rolling Element | Ball Bearing |
| Seal Type | High Temp Labyrinth |
| Shaft Locking Type | Set Screw |
| Size Code | 2-27 |
| Static Load Rating | 8150 lbs. |
Product Details
Shipping Information
| Height | 18.75 |
|---|---|
| Length | 19.05 |
| Width | 6.68 |
| Country Of Origin | US |
|---|---|
| Weight | 4.725000 |
