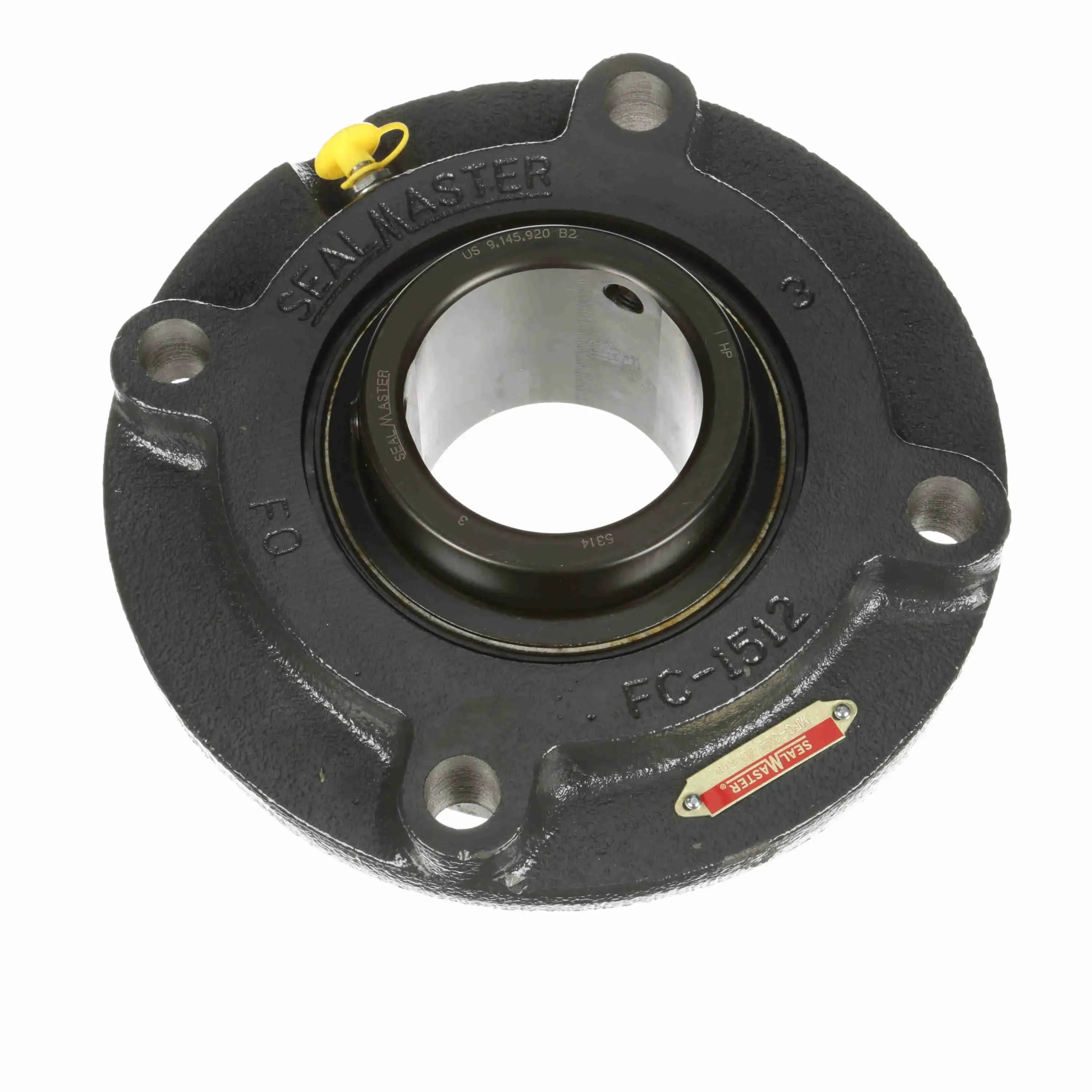

SEALMASTER MFC-314 710193 Flange-Mount Ball Bearing Unit, 70 Mm Bore
Item: BE7JUB
Model: MFC-314
In Stock
Get it by Wednesday, Apr 15
£1257.86/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bearing Insert Finish | Black Oxide |
|---|---|
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bearing Type | Medium Duty |
| Bolt Circle | 7 1/2" |
| Bore Dia. | 70 mm |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Duty Series | Medium |
| Dynamic Load Capacity | 14839 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 14/25" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Grease Type | Goldplex-HP |
| Height | 3 11/25" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Outside Dia. | 8 3/4" |
| Housing Outside Diameter | 8 3/4" |
| Housing Style | Flange Block |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
|---|---|
| Inner Ring Outside Dia. | 3.641" |
| Inner Ring Outside Diameter | 3.641" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 5314 |
| Length | 9.06" |
| Length Through Bore | 3.06" |
| Locking Device | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Speed | 2450 RPM |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 3.06" |
| Overall Length | 8 3/4" |
| Overall Width | 8 3/4" |
| Pilot Configuration | Piloted |
| Pilot Depth | 1.03" |
| Pilot Diameter | 6 3/8" |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Seal Flinger | Yes |
| Shaft Locking Type | Set Screw |
| Shaft Size | 70 mm |
| Size Code | 2-215 |
| Static Load Rating | 11224 lbs. |
| Width | 8.88" |
| no. links/ ft. | 0 |
Product Details
Yes
Shipping Information
| height | 22.56 |
|---|---|
| length | 23.01 |
| width | 8.74 |
| country of origin | US |
|---|---|
| weight | 8.190000 |
Related Products
| Style | Model | Bore Dia. | Housing Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|
| A | MFCH-24 | 1 1/2" | Cast Iron | 281.61 | |
| B | MFC-63C | 3 15/16" | Cast Iron | 2,843.79 | |
| C | MFC-28 | 1 3/4" | Cast Iron | 313.51 | |
| D | MFC-43 | 2 11/16" | Cast Iron | 742.70 | |
| E | MFC-47 | 2 15/16" | Cast Iron | 821.13 | |
| F | MFC-20 | 1 1/4" | Cast Iron | 224.16 | |
| G | MFC-39 | 2 7/16" | Cast Iron | 652.71 |
