  • SEALMASTER LRCS-16 701306 Ball Insert Bearing, Cylindrical Bore, 1 Inch Inside Dia.

SEALMASTER

See our 858 reviews on trustpilot

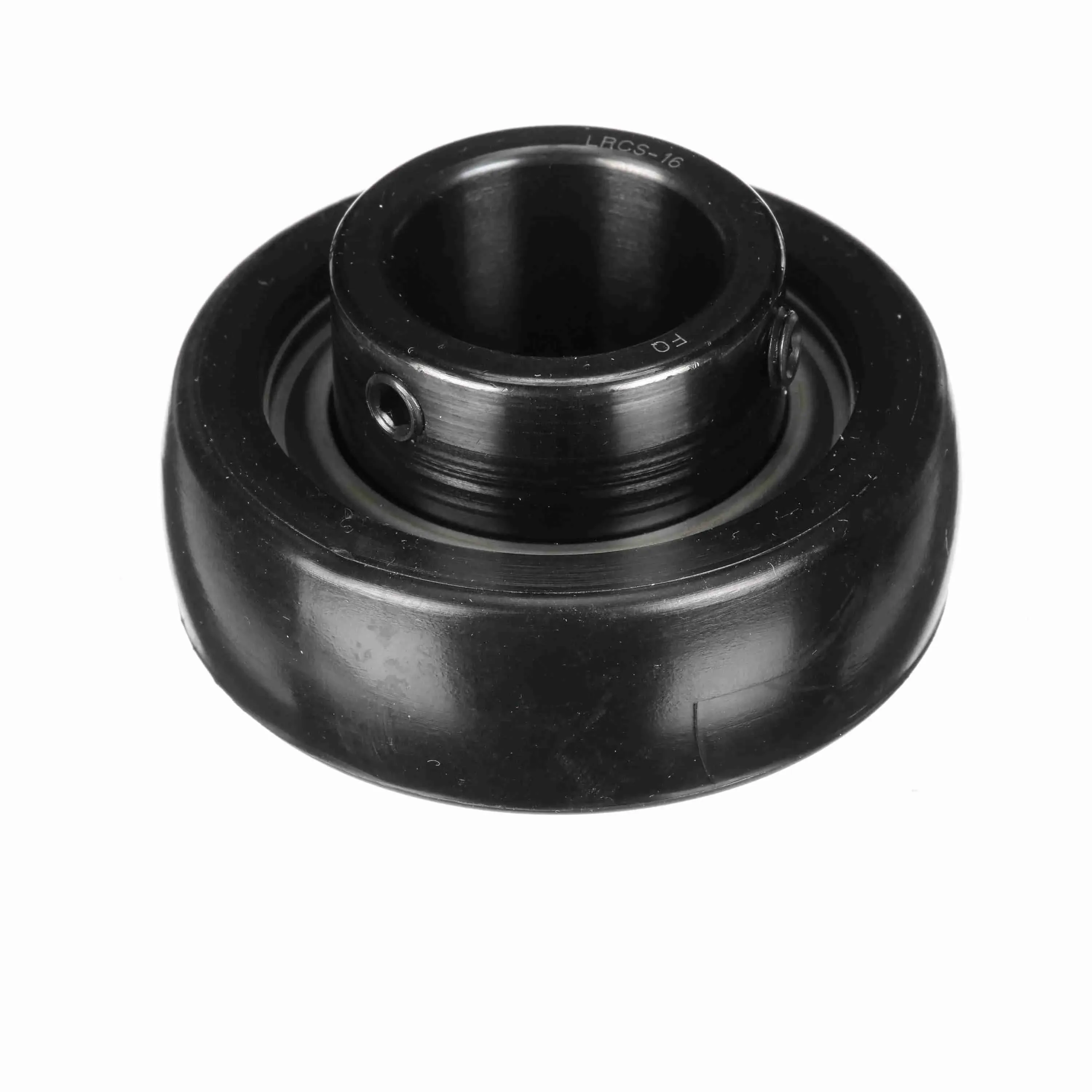

SEALMASTER LRCS-16 701306 Ball Insert Bearing, Cylindrical Bore, 1 Inch Inside Dia.

Item: BE2GGJ
Model: LRCS-16
10 In Stock

Ships within 2 days via

£134.84/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Bearing Insert Finish Black Oxide
Bearing Type Insert
Bore Dia. 1"
Bore Shape Straight
Bore Type Round
Cage Material Brass
Centerline To Front Face 0.863"
Duty Type Light Duty
Duty/series Light
Dynamic Radial Load Capacity 2801 lbs.
End Cap No
Expansion Type Non-Expansion Bearing (Fixed)
Family Series Sealmaster Bearings, LRCS Series
Fillet Radius 0.04"
Finish Black Oxide
Fixed Vs. Expansion No
Grade Grade 52100
Height 1 4/5"
Housing Type Insert Only
Htc 8482.10.5048
Inner Race Heat Treat Method Zone Hardened
Inner Race Length 1.373"
Inner Race Profile Narrow Inner Ring
inner ring outside dia. 1.38"
Insert Material Steel
Insert Material 52100 Steel, Black Oxide
Insert Material Finish Black Oxide
Insert Material Grade 52100
inside dia. 1"
Internal Clearance Standard
Length 3 1/5"
Locking Device Set Screw
Lubrication Type Lithium Complex NLGI 2 Grease
max. operating temp. 220°F
Max. Speed 6350 RPM
Misalignment Angle -2° to +2°
Misalignment Type Static Only
Operating Temp. Range -20°F to +220°F
outer race outside dia. 2.459"
Outer Race Profile Spherical
Outer Race Width 0.813"
Outer Ring Land Profile Standard
Outer Ring Width 0.813"
Outside Dia. 2.459"
Overall Width 1.373"
Platform Gold Line Ball Bearing
Precision Rating ABEC 1
Radius 1/25"
Relubricatable No
Retainer Type Land Riding Retainer
Rolling Element Ball Bearing
Seal Type Single Lip Contact
Seal Type Single Lip Contact Seal
Series LRCS Series
Series LRCS
Set Screw Thread Size 1/4"-28
static radial load capacity 1651 lbs.
Type Of Seal Single Lip Contact Seal
Width 3 1/5"

Product Details

No

Shipping Information

height 8.13
length 8.13
width 4.57
country of origin MX
weight 0.423000
