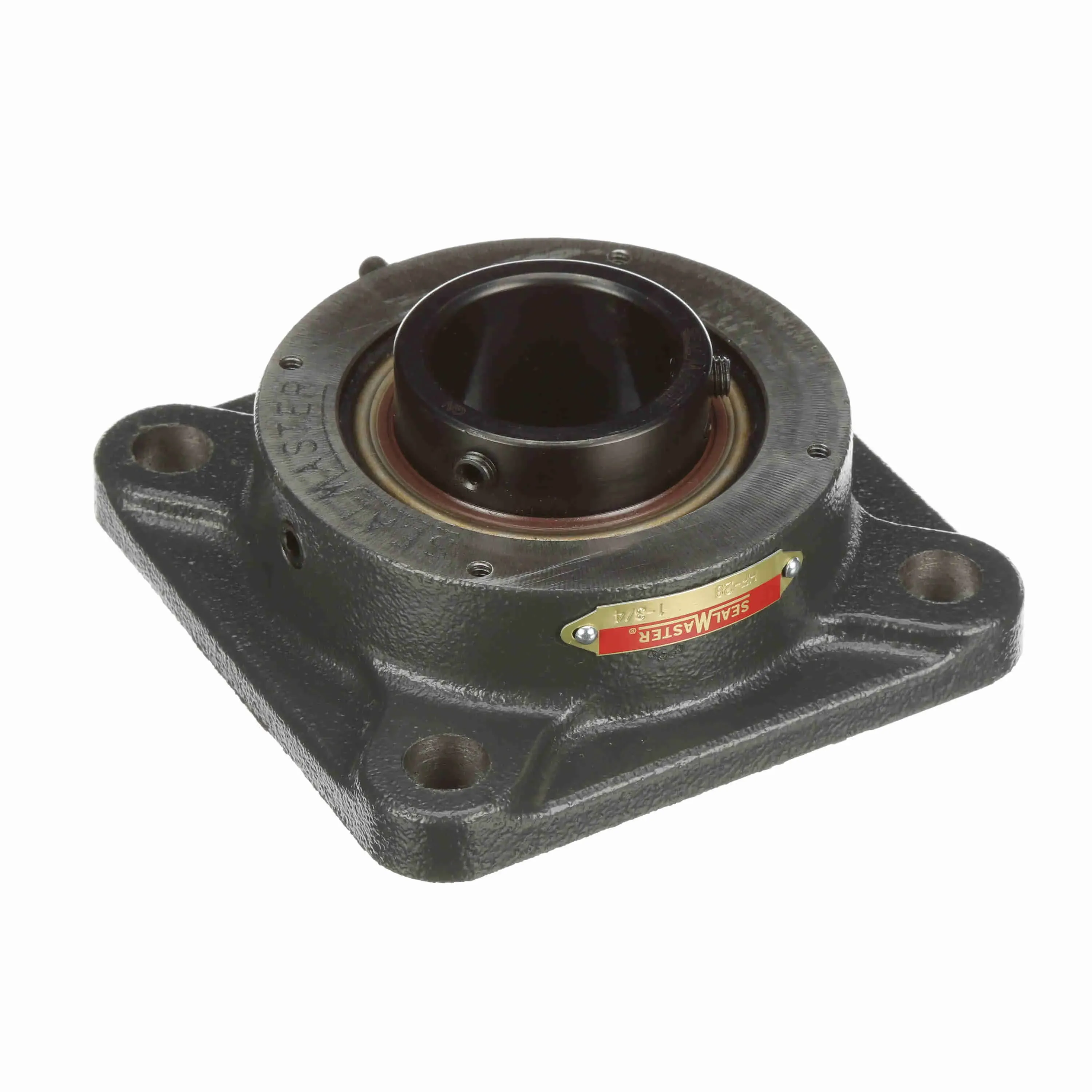

SEALMASTER HF-24 701260 Flange-Mount Ball Bearing Unit, 1-1/2 Inch Bore
Item: BF4GAZ
Model: HF-24
In Stock
Get it by Wednesday, Apr 15
We deliver to your doorstep under DAP terms. Customs clearance is for your account
£631.18/unit
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bearing Insert Finish | Black Oxide |
|---|---|
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bearing Type | Four Bolt Flange |
| Bolt Center To Center Length | 4" |
| Bolt Size | 1/2" |
| Bolt Spacing | 4" |
| Bore Dia. | 1 1/2" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Duty Type | Standard Duty |
| Dynamic Load Capacity | 7340 lbs. |
| End Cap | No |
| Family Series | Sealmaster Bearings |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 14/25" |
| Grease Fitting Thread Size | 1/4"-28 |
| housing backside inside dia. | 3 1/2" |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Four Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| inner ring outside dia. | 2.07" |
| Inner Ring Width | 0.75" |
| Insert | 2-18 |
|---|---|
| Insert Material | Black Oxide, Cast Steel |
| Length Through Bore | 1.938" |
| Length Through Bore | 0.6875" |
| Locking Device | Set Screw |
| Lubrication Type | Lithium Complex Grease With Synthetic Oil |
| Max Operating Temperature | 220°F |
| max. operating temp. | 220°F |
| Max. Rpm | 4150 RPM |
| Max. Speed | 4150 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Operating Temp. Range | -20°F to +220°F |
| Options | Furnace Bearing |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.016" |
| Overall Length | 5.13" |
| Overall Width | 5.13" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Increased |
| Replacement Bearing | 2-18 |
| Rolling Element | Ball Bearing |
| Seal Type | V Spring Seal Seal |
| Seal Type | Spring Loaded Seal |
| Shaft Diameter (in) | 1.5" |
| Shaft Locking Type | Set Screw |
| Size Code | 2-19 |
| Static Load Rating | 4467 lbs. |
| Type Of Bearing | Ball |
Product Details
Yes
Shipping Information
| height | 5.41 |
|---|---|
| length | 13.97 |
| width | 13.97 |
| country of origin | US |
|---|---|
| weight | 2.295000 |
