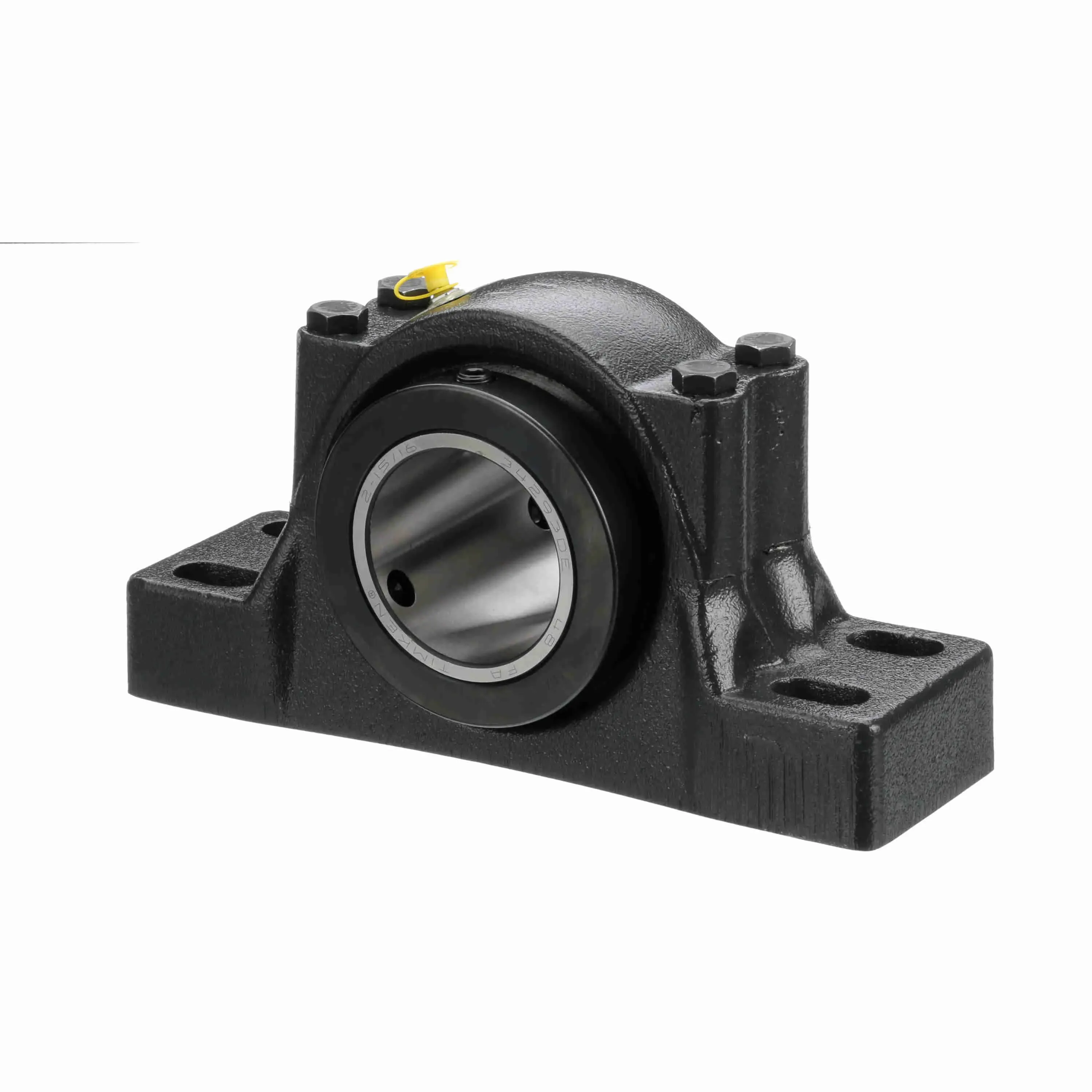

SEALMASTER ERPBXT 315-4 554448 Pillow Block Bearing, 4 Bolt, 3.93 Inch Bore, 4.93 Inch Base to Center Height

Item: BE8FPW
Model: ERPBXT 315-4
In Stock

Get it by Wednesday, Apr 15

£5261.15/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ability To Relubricate Yes
Base To Center Height 4.938"
Base Width 5.188"
Bearing Insert Finish Uncoated
Bolt Center-to-center Length 13.505"
Bolt Size 3/4"
Bore Dia. 3 15/16"
Bore Shape Straight
Centerline To Front Face 3 1/8"
Collar Outer Dia. 6"
Collar Outer Diameter 6"
Duty Series Standard
Duty/series Standard Series
Dynamic Radial Load Capacity 20980 lbs.
End Cap No
Expansion Yes
Foot Height 2"
Grade Grade 52100
Grease Fitting Thread Size 1/8"
Grease Fitting Thread Type NPT
Height 11"
Housing Color Gray
Housing Construction Split Two Piece
Housing Material Cast Iron
Housing Style Pillow Block
Htc 8483.20.8080
I.d. 3 15/16"
Inner Race Heat Treat Method Case Carburized Inner Ring
Inner Race Length 6 1/4"
Insert Material Steel
Insert Material Grade 52100
Insert Number ERCI-315
Internal Clearance Standard
Length 18 3/4"
Locking Device Double Set Screw
Locking Type Double Collar Mount
Lubrication Type Lithium, EP, NLGI
Max. Speed 1250 RPM
Misalignment Type Static Only
Outer Ring Land Profile Standard
Overall Height 9.563"
Overall Length 16 1/2"
Overall Width 6 1/4"
Platform RPB Series
Replaceable Insert Yes
Retainer Material Steel
Retainer Type Steel
Seal Flinger Yes
Series ERPBXT Series
Shaft Size 3 15/16"
Width 7 1/2"
no. links/ ft. 0

Product Details

Pillow Block Bearing

Shipping Information

height 19.05
length 47.62
width 27.94
country of origin US
weight 44.685000
