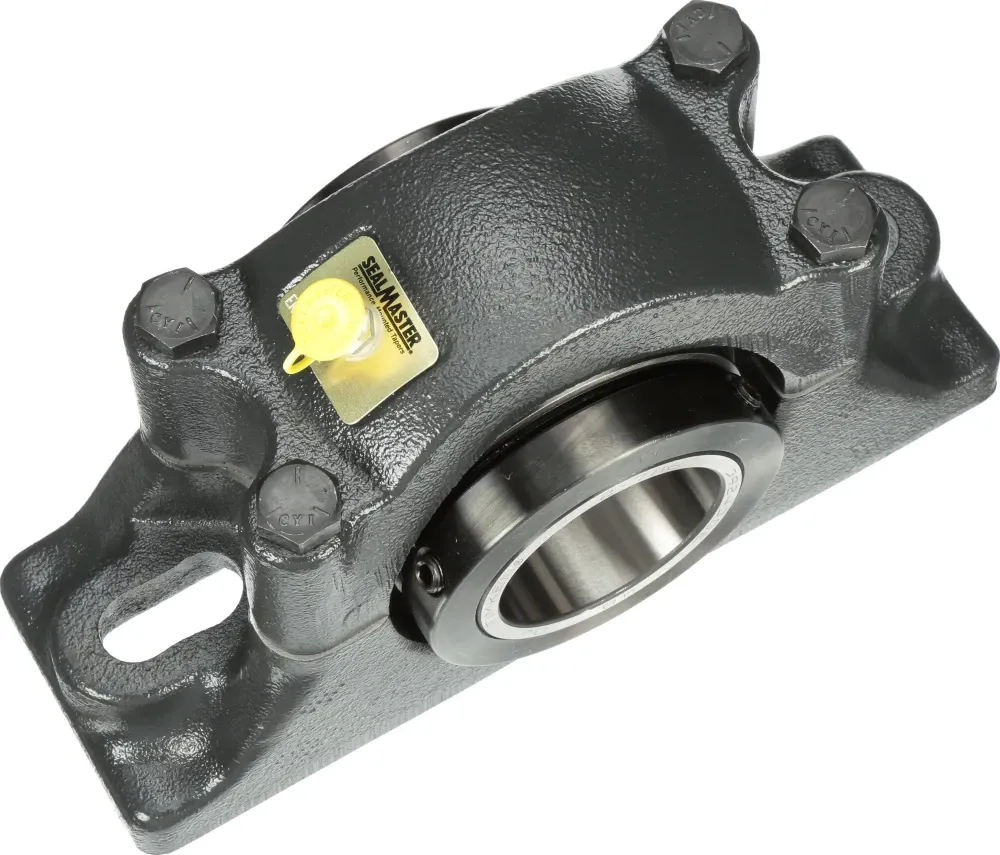

SEALMASTER ERPBA 215-C2 557220 Roller Bearing, Pillow Block Expansion, 2 Bolt, 2.93 Inch Dia, Setscrew Locking
Item: BF8GZQ
Model: ERPBA 215-C2
In Stock
Get it by Thursday, Apr 16
£2310.04/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | Yes |
|---|---|
| Base To Center Height | 3 1/8" |
| Bearing Insert Finish | Black Oxide |
| Bolt Size | 3/4" |
| Bore Dia. | 2 15/16" |
| Bore Shape | Straight |
| Collar Outer Dia. | 4.719" |
| Collar Outer Diameter | 4 23/32" |
| End Cap | No |
| Expansion | Yes |
| Foot Height | 1 3/4" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Height | 4.63" |
| Housing Base | Semi-Solid |
| Housing Color | Gray |
| Housing Construction | Split Two Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Htc | 8483.20.8080 |
| I.d. | 2 15/16" |
|---|---|
| Insert Material | Steel |
| Insert Material Grade | 52100 |
| Insert Number | ERCIA 215-C |
| Internal Clearance | Standard |
| Length | 12.13" |
| Locking Device | Single Set Screw |
| Locking Type | Collar Mount |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Speed | 1750 RPM |
| Misalignment Type | Static Only |
| Platform | RPB Series |
| Replaceable Insert | Yes |
| Retainer Material | Steel |
| Retainer Type | Steel |
| Seal Flinger | No |
| Series | RPBA Series |
| Shaft Size | 2 15/16" |
| Width | 6 3/4" |
| no. links/ ft. | 0 |
Product Details
Roller Bearing
Shipping Information
| height | 17.14 |
|---|---|
| length | 30.81 |
| width | 11.76 |
| country of origin | US |
|---|---|
| weight | 14.400000 |
Related Products
| Style | Model | Shaft Size | Housing Material | Housing Type | Bore Dia. | Locking Device | Seal Type | Max. Speed | Bolt Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | ERPBA 207-2 | 2 7/16" | Cast Iron | Two Bolt Pillow Block | - | Single Set Screw | Felt | - | - | 3,638.29 | |
| B | ERPBA 200-2 | 2" | Cast Iron | Two Bolt Pillow Block | - | Single Set Screw | Felt | - | - | 1,650.81 |
