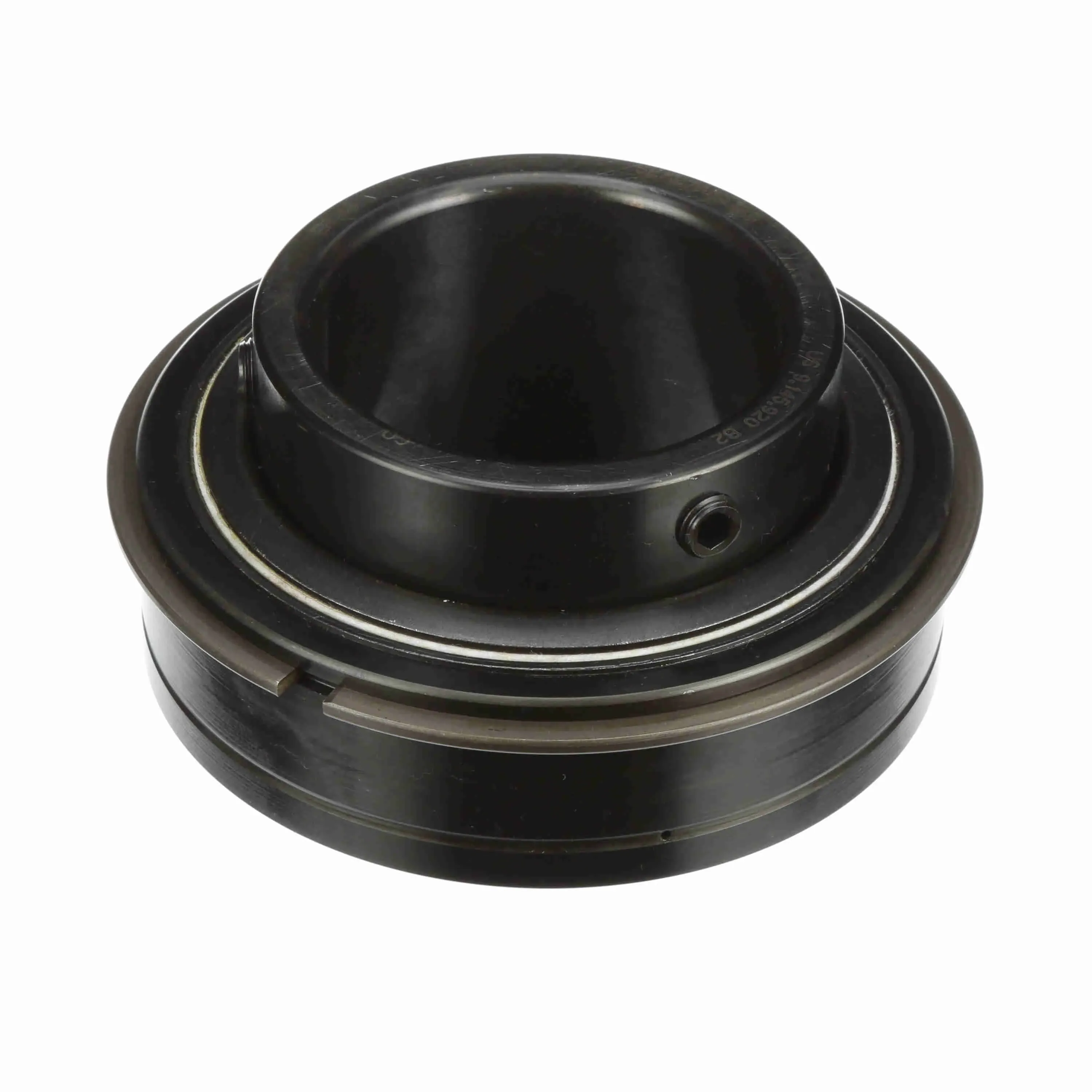

SEALMASTER ER-46 701090 Insert Bearing, 2 7/8 Inch Bore, 5 7/64 Inch OD, 1.5 Inch Outer Ring Wide

Item: BE6KCM
Model: ER-46
21 In Stock

Ships within 2 days via

£1424.09
5.00% off
£1352.89/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ability To Relubricate Yes
Ball Material Alloy Steel
Ball Material Grade 52100
Bearing Industry Number ER-46
Bearing Insert Finish Black Oxide
Bearing Insert Shape Cylindrical
Bearing Insert Type Radial/Deep Groove Ball
Bore Dia. 2 7/8"
Bore Diameter 2 7/8"
Bore Diameter Tolerance -0.001" to 0"
Bore Shape Straight
Cage Material Brass
Centerline To Front Face 1 3/4"
Closure Double Sealed
Duty Series Standard
Duty/series Standard Series
Dynamic Load Capacity 14839 lbs.
Dynamic Radial Load Capacity 14839 lbf.
End Cap No
Expansion No
Features 120° Spacing Setscrew Lock With Diamond Faceted Setscrews, 360° Grease Circulation Around The Rolling Elements, Better Retained And Utilized Lubrication, Unique Land Riding Retainer Design Provides Superior Pocket Clearance, Use In Sealmaster Machined Housings Only
Finish Black Oxide
For Environment Highly Dusty And Dirty
Grade Grade 52100
Grease Type Lithium Complex, Ep, Nlgi#2
Height 5.56"
Htc 8482.10.5056
I.d. 2 7/8"
Includes Retaining Ring, Set Screws
Inner Race Heat Treat Method Zone Hardened
Inner Race Profile Wide Inner Ring
Inner Ring Outside Dia. 3.641"
Inner Ring Outside Diameter 3.641"
Inner Ring Width 3.06"
Inner-race Heat-treat Method Zone Hardened
Insert Material Steel
Insert Material Finish Black Oxide
Insert Material Grade 52100
Internal Clearance Standard
Length 5 1/2"
Load Direction Radial
Locking Device Single Set Screw
Lubricant Material Nlgi #2 Equivalent
Lubrication Openings Grease Fitting
Lubrication Type Lithium Complex NLGI 2 Grease
Max. Speed 2450 RPM
Maximum Temperature 220°F
Minimum Temperature -20°F
Misalignment Type Static Only
Outer Race Od 5.118"
Outer Race Outside Dia. 5.1181"
Outer Race Profile Cylindrical
Outer Race Width 1 1/2"
Outer Ring Land Profile Standard
Outer Ring Width 1.5"
Outside Diameter 5 7/64"
Overall Width 3.063"
Platform Gold Line Ball Bearing
Radius 2/25"
Ring End To Center Width 1 3/4"
Ring Material Alloy Steel
Ring Material Grade Grade 52100
Rolling Element Material Alloy Steel
Rolling Element Material Grade Grade 52100
Rolling Element Rows 1
Seal Flinger Yes
Seal Material Felt
Set Screw Thread Length 0.438"
Set Screw Thread Size 7/16"-20
Set Screw Thread Type UNF
Shaft Locking Type Set Screws
Shaft Size 2 7/8"
Standards Iso Certified 100-220
Static Radial Load Capacity 11224 lbf.
Width 3.13"
no. links/ ft. 0

Product Details

Shipping Information

Height 7.95
Length 13.97
Width 14.12
Country Of Origin US
Weight 2.970000
