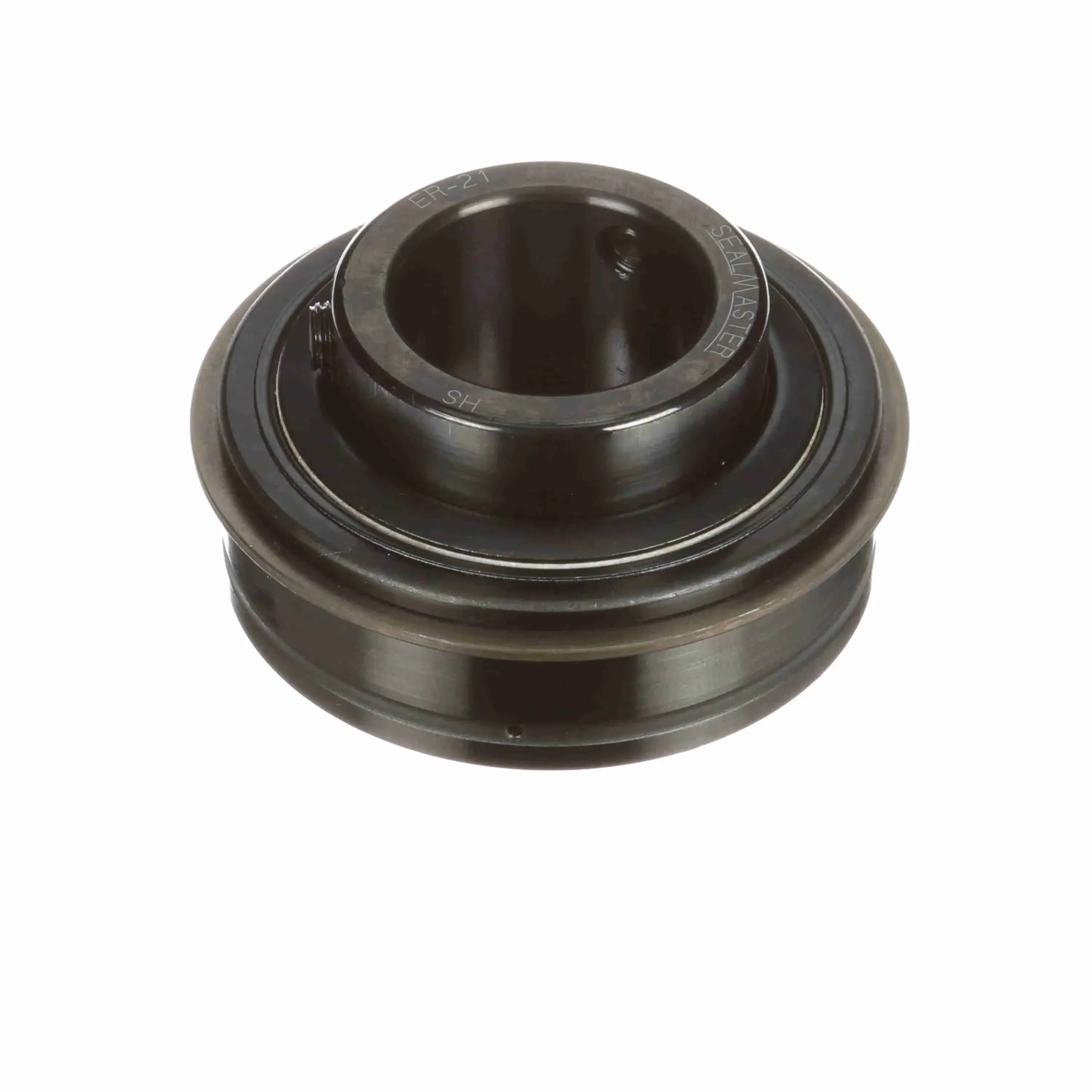

SEALMASTER ER-21 701065 Insert Bearing, 1 5/16 Inch Bore, 2 53/64 Inch OD, 0.938 Inch Outer Ring Wide
Item: BD9MCP
Model: ER-21
26 In Stock
Ships within 2 days via
5.00% off
£309.91/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bearing Insert Finish | Black Oxide |
|---|---|
| Bore Dia. | 1 5/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Centerline To Front Face | 1" |
| Duty/series | Standard Series |
| Dynamic Radial Load Capacity | 5782 lbs. |
| End Cap | No |
| Expansion | No |
| Grease Fitting Thread Length | 0.31" |
| Grease Fitting Thread Size | 3/8"-24 |
| Grease Fitting Thread Type | UNF |
| Housing Type | Insert Er Style |
| Htc | 8482.10.5052 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 1.688" |
| Inner Race Profile | Wide Inner Ring |
| Inner Ring Outside Diameter | 1.859" |
| Insert Material | Steel |
| Insert Material Finish | Black Oxide |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
| Locking Type | Set Screw |
|---|---|
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 4650 RPM |
| Measure Units | Inch |
| Misalignment Type | Static Only |
| Outer Race Od | 2.835" |
| Outer Race Profile | Cylindrical |
| Outer Race Width | 0.938" |
| Outer Ring Land Profile | Tapered Lands |
| Overall Width | 1.688" |
| Platform | Gold Line Ball Bearing |
| Precision Rating | Abec 1 |
| Radial Static Load Capacity | 3493 lbs. |
| Radius | 1/25" |
| Retainer Type | Land Riding Retainer |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Set Screw Thread Length | 0.31" |
| Set Screw Thread Size | 5/16"-24 |
| Set Screw Thread Type | UNF |
Product Details
Yes
Shipping Information
| height | 4.44 |
|---|---|
| length | 7.95 |
| width | 7.95 |
| country of origin | MX |
|---|---|
| weight | 0.607500 |
Related Products
| Style | Model | Bore Dia. | Outer Ring Width | Outside Dia. | Dynamic Radial Load Capacity | Max. Speed | Overall Width | Seal Type | Cage Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | ER-212TM | - | - | - | - | - | - | - | - | 201.16 | |
| B | ER-16TC | 1" | - | - | 2801 lbs. | 6350 RPM | 1.438" | Single Lip Contact Seal | Polyphenylene Sulfide | 76.35 | |
| C | ER-34 | 2 1/8" | 1.188" | - | 9752 lbs. | 3250 RPM | 2.188" | Felt Labyrinth Seal | Polyphenylene Sulfide | 467.07 | |
| D | ER-32R | 2" | 1.125" | - | 9752 lbs. | 3550 RPM | 2.031" | Felt Labyrinth Seal | Polyphenylene Sulfide | 338.82 | |
| E | ER-12C | 3/4" | - | - | 2611 lbs. | 6450 RPM | 1.219" | Single Lip Contact Seal | Polyphenylene Sulfide | 46.77 | |
| F | ER-20C | 1 1/4" | - | - | 5782 lbs. | 4650 RPM | 1.688" | Single Lip Contact Seal | Polyphenylene Sulfide | 72.62 | |
| G | ER-16T DRT | - | - | - | - | - | - | - | - | 126.21 |
