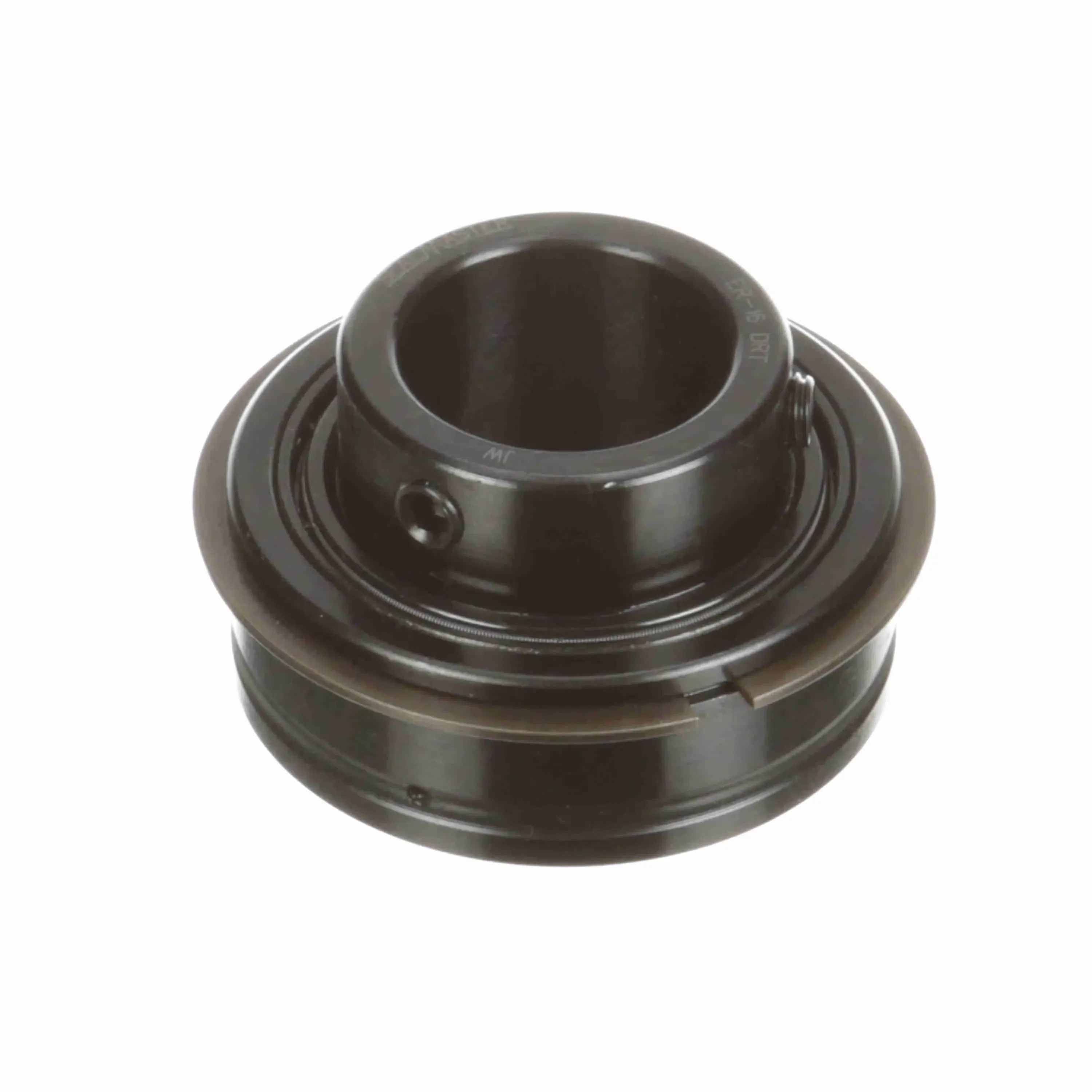

SEALMASTER ER-16 DRT 711931 Ball Bearing, Black Oxided, Setscrew Lock, High Contamination, 1 Inch

Item: BD9NCP
Model: ER-16 DRT
In Stock

Get it by Wednesday, Apr 15

We deliver to your doorstep under DAP terms. Customs clearance is for your account

£148.58/unit
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ability To Relubricate Yes
Bearing Insert Finish Black Oxide
Bore Dia. 1"
Bore Shape Straight
Cage Material Polyphenylene Sulfide
Centerline To Front Face 0.859"
Duty/series Standard Series
Dynamic Radial Load Capacity 2801 lbs.
End Cap No
Expansion No
Housing Type Insert Er Style
Htc 8482.10.5048
Inner Race Heat Treat Method Zone Hardened
Inner Race Length 1 3/8"
Inner Race Profile Wide Inner Ring
Inner Ring Outside Diameter 1 3/8"
Insert Material Steel
Insert Material Finish Black Oxide
Insert Material Grade 52100
Internal Clearance Standard
Locking Type Set Screw
Lubrication Type Lithium Complex NLGI 2 Grease
Max. Operating Temperature 220°F
Max. Speed 550 RPM
Measure Units Inch
Misalignment Type Static Only
Options High Contamination
Outer Race Od 2.047"
Outer Race Profile Cylindrical
Outer Race Width 3/4"
Outer Ring Land Profile Tapered Lands
Overall Width 1 3/8"
Platform Gold Line Ball Bearing
Precision Rating Abec 1
Radial Static Load Capacity 1651 lbs.
Radius 1/25"
Retainer Type Land Riding Retainer
Rolling Element Ball Bearing
Seal Type Multi-Lip Contact Seal
Set Screw Thread Size 1/4"-28

Product Details

Ball Bearing

Shipping Information

height 3.66
length 6.05
width 6.05
country of origin MX
weight 0.306000
