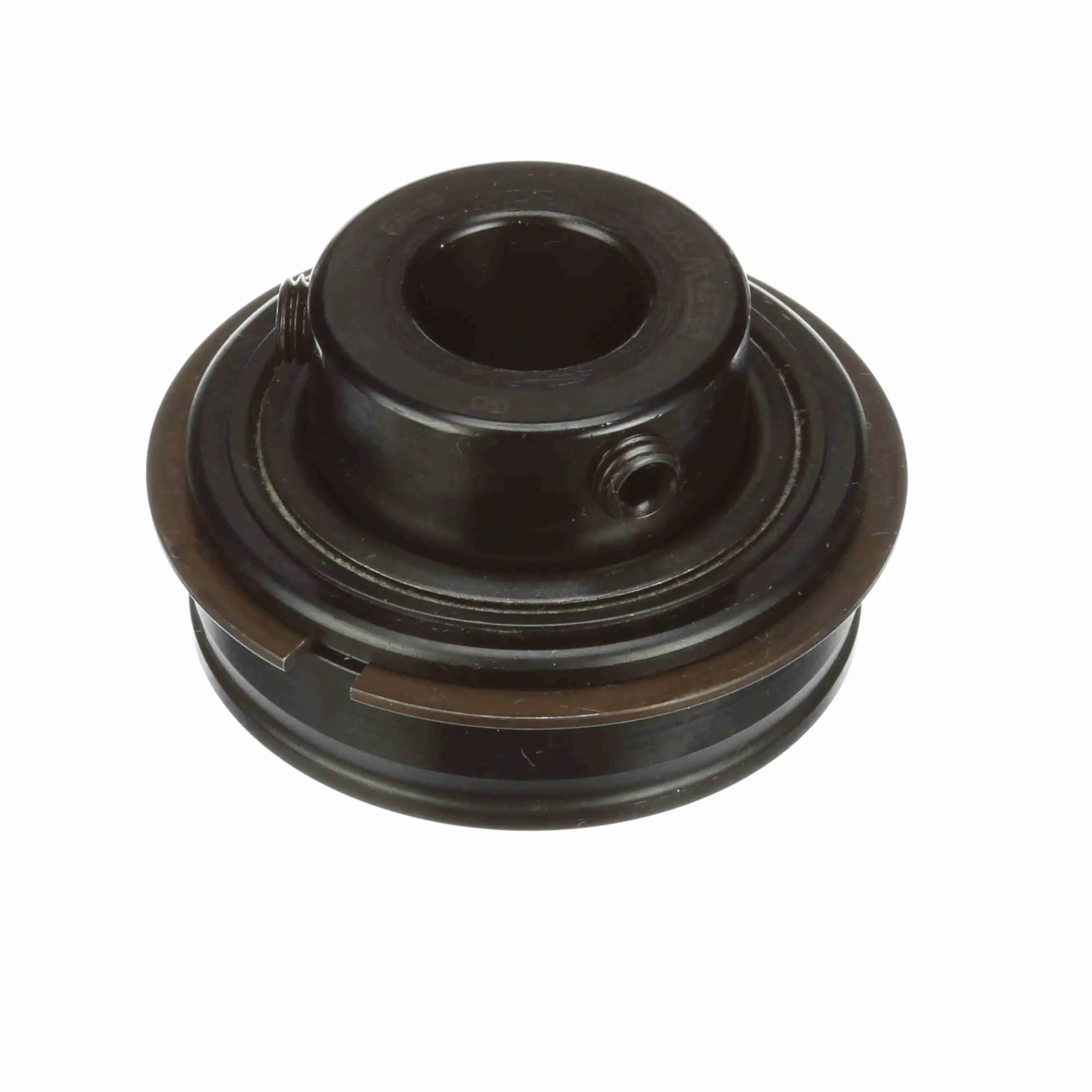

SEALMASTER ER-10 701051 Insert Bearing, 5/8 Inch Bore, 1 27/32 Inch OD, 0.625 Inch Outer Ring Wide

Item: BE9RCQ
Model: ER-10
In Stock

Get it by ,

We deliver to your doorstep under DAP terms. Customs clearance is for your account

£142.84
5.00% off
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ability To Relubricate Yes
Ball Material Alloy Steel
Ball Material Grade 52100
Bearing Industry Number ER-10
Bearing Insert Finish Black Oxide
Bearing Insert Shape Cylindrical
Bearing Insert Type Radial/Deep Groove Ball
Bore Dia. 5/8"
Bore Diameter 5/8"
Bore Diameter Tolerance -0.0005" to 0"
Bore Shape Straight
Cage Material Polyphenylene Sulfide
Centerline To Front Face 0.813"
Closure Double Sealed
Duty/series Standard Series
Dynamic Radial Load Capacity 2611 lbs.
End Cap No
Expansion No
Features 120° Spacing Setscrew Lock With Diamond Faceted Setscrews, 360° Grease Circulation Around The Rolling Elements, Better Retained And Utilized Lubrication, Unique Land Riding Retainer Design Provides Superior Pocket Clearance, Use In Sealmaster Machined Housings Only
Finish Black Oxide
For Environment Highly Dusty And Dirty
Housing Type Insert Er Style
Htc 8482.10.5048
Includes Retaining Ring, Set Screws
Inner Race Heat Treat Method Zone Hardened
Inner Race Length 1.219"
Inner Race Profile Wide Inner Ring
Inner Ring Outside Diameter 1.188"
Inner Ring Width 1.22"
Insert Material Steel
Insert Material Finish Black Oxide
Insert Material Grade 52100
Internal Clearance Standard
Load Direction Radial
Locking Type Set Screw
Lubricant Material Nlgi #2 Equivalent
Lubrication Openings Grease Fitting
Lubrication Type Lithium Complex NLGI 2 Grease
Max. Operating Temperature 220°F
Max. Speed 7300 RPM
Maximum Temperature 220°F
Measure Units Inch
Minimum Temperature -20°F
Misalignment Type Static Only
Outer Race Od 1.85"
Outer Race Profile Cylindrical
Outer Race Width 5/8"
Outer Ring Land Profile Tapered Lands
Outer Ring Width 0.625"
Outside Diameter 1 27/32"
Overall Width 1.219"
Platform Gold Line Ball Bearing
Precision Rating Abec 1
Radial Static Load Capacity 1444 lbs.
Radius 1/25"
Retainer Type Land Riding Retainer
Ring End To Center Width 0.813"
Ring Material Alloy Steel
Ring Material Grade Grade 52100
Rolling Element Ball Bearing
Rolling Element Material Alloy Steel
Rolling Element Material Grade Grade 52100
Rolling Element Rows 1
Seal Material Felt
Seal Type Felt Labyrinth Seal
Shaft Locking Type Set Screws
Standards Iso Certified 100-220
Static Radial Load Capacity 1444 lbf.

Product Details

1

Shipping Information

height 3.66
length 6.05
width 6.05
country of origin MX
weight 0.225000
