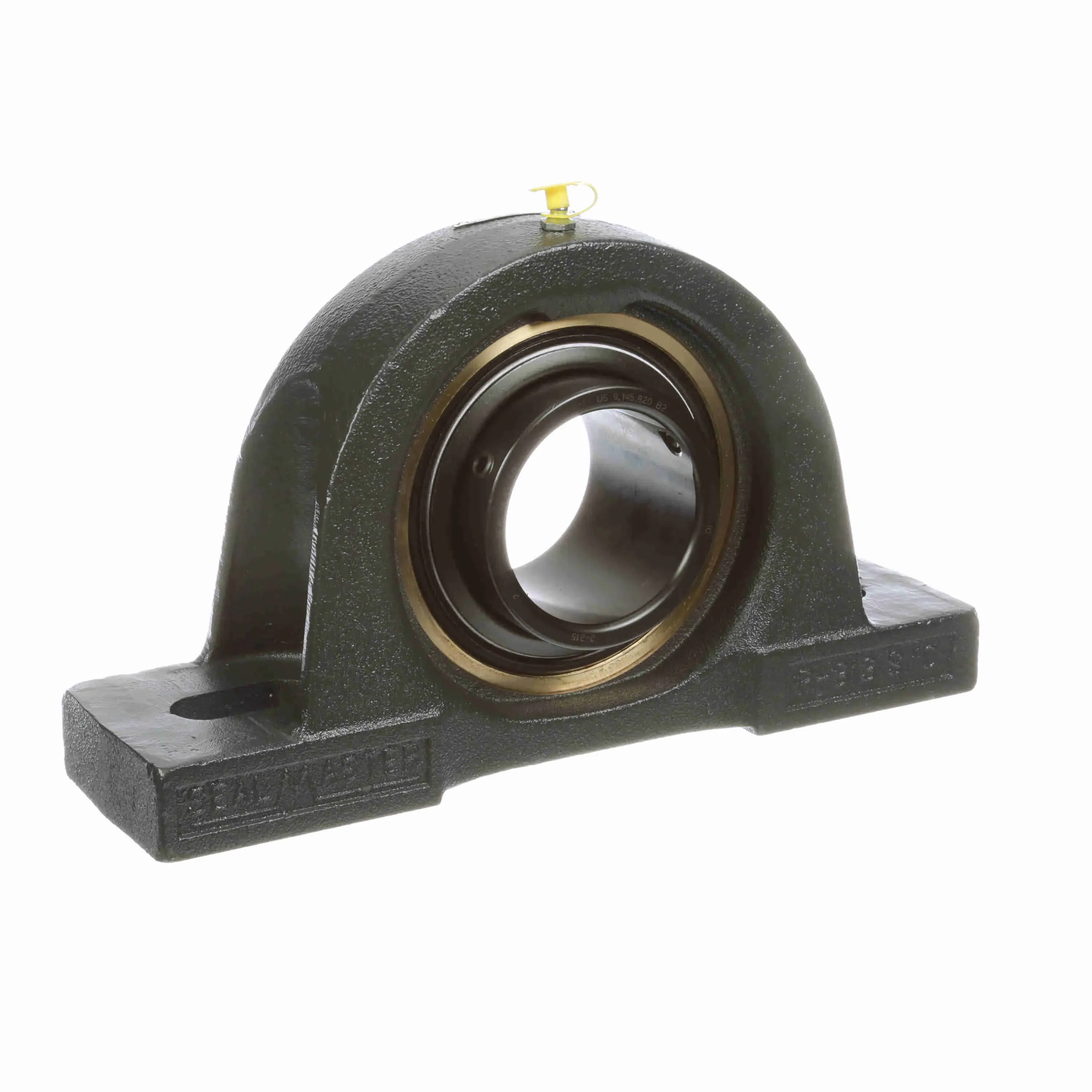

SEALMASTER EMP-47 CXU 713030 Pillow Block Bearing, 2 Bolt, 2.9375 Inch Dia, Setscrew Locking, Standard Felt Seal

Item: BE2DJF
Model: EMP-47 CXU
In Stock

Get it by Thursday, Apr 16

£1865.92/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ability To Relubricate Yes
Base Length 13"
Base To Center Height 3 1/2"
Base Width 3 1/2"
Bearing Insert Finish Black Oxide
Bearing Insert Material Steel
Bearing Insert Material Grade 52100
Bearing Insert Type Medium Duty
Bearing Type Medium Duty
Bolt Size 7/8"
Bolt Spacing Max 10.13"
Bore Dia. 2 15/16"
Bore Shape Straight
Cage Material Brass
Cage Type Land Riding Retainer
Centerline To Outermost Bearing Face 1.938"
Duty Series Medium
Dynamic Load Capacity 14839 lbs.
End Cap No
Expansion Capability 1/2"
Fixed Vs. Expansion Expansion
Fixed Vs. Expansion Size 1/4"
Foot Height 1 1/4"
Grade Grade 52100
Grease Fitting Thread Size 1/8"
Grease Fitting Thread Type NPT
Grease Type Goldplex-HP
Height 4"
Housing Base Solid
Housing Coating Powder Coated
Housing Color Black
Housing Construction One Piece
Housing Material Cast Iron
Housing Style Pillow Block
Housing Type Pillow Block, Two Bolt
Htc 8483.20.8040
Inner Race Heat Treat Method Zone Hardened
Inner Ring Outside Dia. 3.641"
Inner Ring Outside Diameter 3.641"
Inner-race Heat-treat Method Zone Hardened
Insert AR-2-215
Length 14 1/4"
Length Through Bore 3 1/4"
Locking Device Setscrew
Lubricant Lithium Complex NLGI 2 Grease
Lubrication Type Lithium Complex NLGI 2 Grease
Max. Speed 2450 RPM
Misalignment Type Static Only
Options Air Handling Housing Fit, Noise Tested
Outer Ring Land Profile Standard
Overall Height 7 1/4"
Overall Length 13"
Overall Width 3 1/2"
Product Line Sealmaster Gold Standard
Radial Clearance Standard
Retainer Type Metal Land Riding
Seal Flinger Yes
Setscrew Torque 350 lbs.-in. to 450 lbs.-in.
Shaft Locking Type Set Screw
Shaft Size 2 15/16"
Size Code 2-215
Static Load Rating 11224 lbs.
Width 8.06"
no. links/ ft. 0

Product Details

Shipping Information

Height 20.47
Length 36.2
Width 10.16
Country Of Origin US
Weight 13.815000
