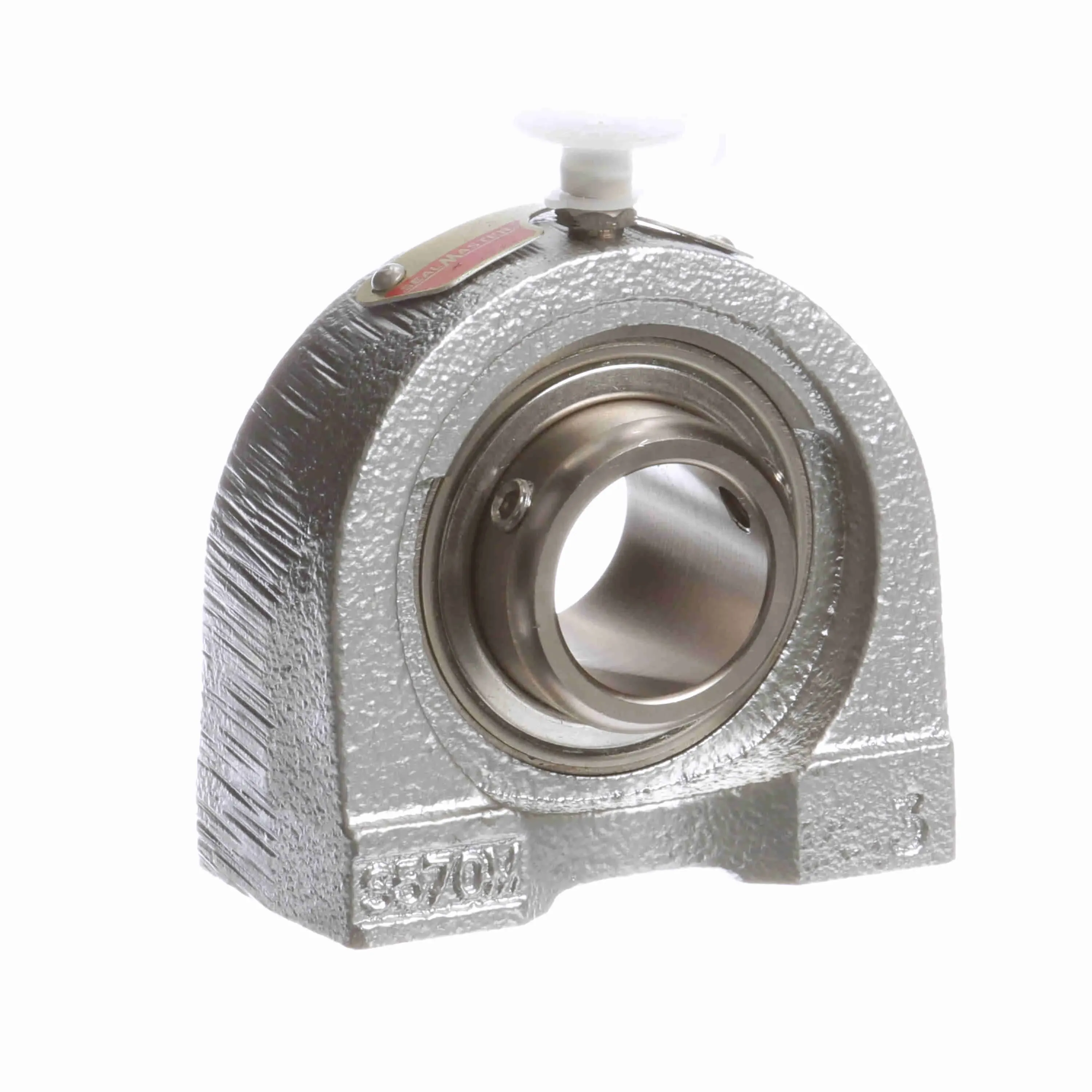

SEALMASTER CRTBF-PN22 711868 Pillow Block Bearing, Tapped Base, 1.375 Inch Dia, Setscrew Locking

Item: BE8QCR
Model: CRTBF-PN22
In Stock

Get it by Wednesday, Apr 15

£517.12/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ability To Relubricate Yes
Base Length 4 1/4"
Base To Center Height 1 7/8"
Base Width 1 22/25"
Bearing Insert Finish Phosphorus Nickel Coated
Bearing Insert Material Steel
Bearing Insert Material Grade 52100
Bearing Insert Type Standard Duty
Bolt Spacing 3 1/4"
Bore Dia. 1 3/8"
Bore Shape Straight
Cage Material Polyphenylene Sulfide
Cage Type Land Riding Retainer
Centerline To Outermost Bearing Face 1"
Dynamic Load Capacity 5782 lbs.
End Cap Yes
Fixed Vs. Expansion Fixed
Grease Fitting Thread Size 5/16"-24
Housing Base Solid
Housing Coating Fluoropolymer Coated
Housing Color Gray
Housing Construction One Piece
Housing Material Cast Iron
Housing Style Pillow Block
Housing Type Pillow Block, Tapped Base
Housing Width 1 22/25"
Htc 8483.20.8040
Inner Race Heat Treat Method Zone Hardened
Inner Ring Outside Dia. 1.8594"
Inner Ring Outside Diameter 1.8594"
Insert PN-22
Ip Rating IP69K
Length Through Bore 1 11/16"
Lubrication Type Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease
Max. Operating Temperature 220°F
Max. Speed 2000 RPM
Misalignment Capability -2° to +2°
Misalignment Type Static Only
Options Corrosion Resistant
Outer Ring Land Profile Standard
Overall Height 3 3/4"
Overall Length 4.41"
Overall Width 1 22/25"
Radial Clearance Standard
Rolling Element Ball Bearing
Seal Type Multi-Lip Contact Seal
Shaft Locking Type Set Screw
Size Code 2-17
Static Load Rating 3493 lbs.
Thread Depth 3/4"
Thread Size 1/2"-13

Product Details

Pillow Block Bearing

Shipping Information

height 5.08
length 12.7
width 12.7
country of origin US
weight 2.025000
