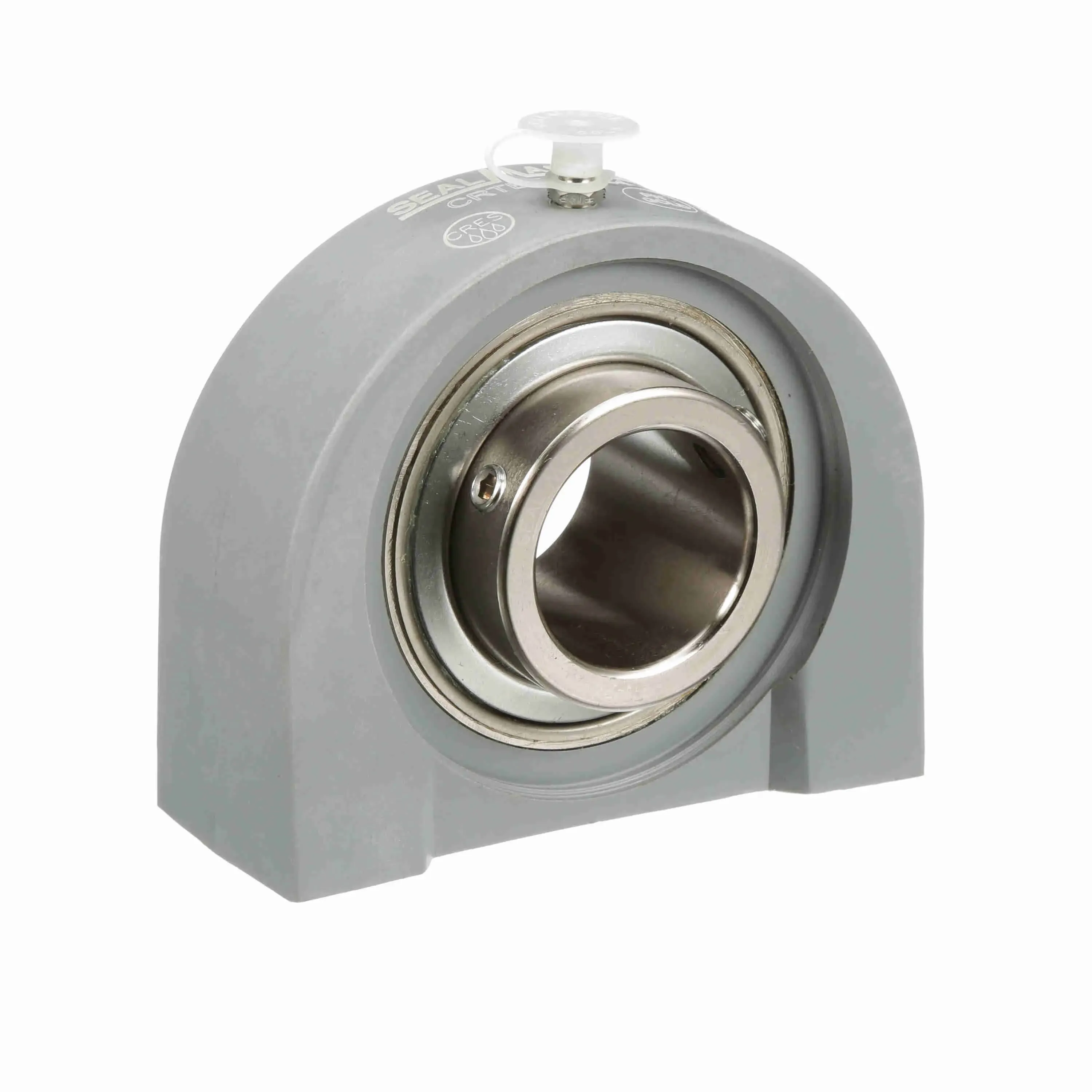

SEALMASTER CRTBC-PN12 711263 Tapped Base Pillow Block Unit, 3/4 Inch Bore, Composite Material, Standard Duty
Item: BD8FXD
Model: CRTBC-PN12
In Stock
Get it by Friday, Apr 17
£237.8/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Base Length | 3.11" |
|---|---|
| Base To Center Height | 1.312" |
| Base Width | 1 1/2" |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Spacing | 2" |
| Bore Dia. | 3/4" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 18/25" |
| Dynamic Load Capacity | 2611 lbs. |
| End Cap | Yes |
| Fixed Vs. Expansion | Fixed |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Color | Gray |
| Housing Construction | One Piece |
| Housing Material | Composite |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Tapped Base |
| Housing Width | 1 1/2" |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 1.188" |
| Insert | PN-12 |
|---|---|
| Ip Rating | IP69K |
| Length Through Bore | 1.22" |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 3100 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | Corrosion Resistant |
| Outer Ring Land Profile | Standard |
| Overall Height | 2 14/25" |
| Overall Length | 3.11" |
| Overall Width | 1 1/2" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Setscrew Torque | 65 lbs.-in. to 85 lbs.-in. |
| Shaft Locking Type | Set Screw |
| Size Code | 2-012 |
| Static Load Rating | 1444 lbs. |
| Thread Depth | 1/2" |
| Thread Size | 3/8"-16 |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0907 cPS |
| Vibration Frequency Outer Ring Defect | 0.0593 cPS |
| Vibration Frequency Roller Spin | 0.0381 cPS |
Product Details
Shipping Information
| Height | 3.81 |
|---|---|
| Length | 10.16 |
| Width | 10.01 |
| Country Of Origin | US |
|---|---|
| Weight | 0.369000 |
Related Products
| Style | Model | Housing Type | Shaft Locking Type | Bore Dia. | Overall Length | Overall Width | Overall Height | Seal Type | Insert | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | CRTBC-PN208T | Pillow Block, Tapped Base | Concentric | 1 1/2" | 4.63" | 2" | 3.93" | Multi-Lip Contact Seal | PN-208T | 420.40 | |
| B | CRTBC-PN16 RMW | Pillow Block, Tapped Base | Set Screw | 1" | 3" | 1 1/2" | 2.81" | Multi-Lip Contact Seal | PN-16 | 207.96 | |
| B | CRTBC-PN16T RMW | Pillow Block, Tapped Base | Concentric | 1" | 3" | 1 1/2" | 2.81" | Multi-Lip Contact Seal | PN-16T | 215.08 | |
| A | CRTBC-PN20T | Pillow Block, Tapped Base | Concentric | 1 1/4" | 4.41" | 1 22/25" | 3 3/4" | Multi-Lip Contact Seal | PN-20T | 325.13 | |
| C | CRTBC-PN24T RMW | Pillow Block, Tapped Base | Concentric | 1 1/2" | 4.63" | 2" | 3.93" | Multi-Lip Contact Seal | PN-24T | 348.82 | |
| D | CRTBC-PN23 RMW | Pillow Block, Tapped Base | Set Screw | 1 7/16" | 4.41" | 1 22/25" | 3 3/4" | Multi-Lip Contact Seal | PN-23 | 279.58 | |
| E | CRTBC-PN20R | Pillow Block, Tapped Base | Set Screw | 1 1/4" | 4" | 1 1/2" | 3.38" | Multi-Lip Contact Seal | PN-20R | 233.14 |
